Description

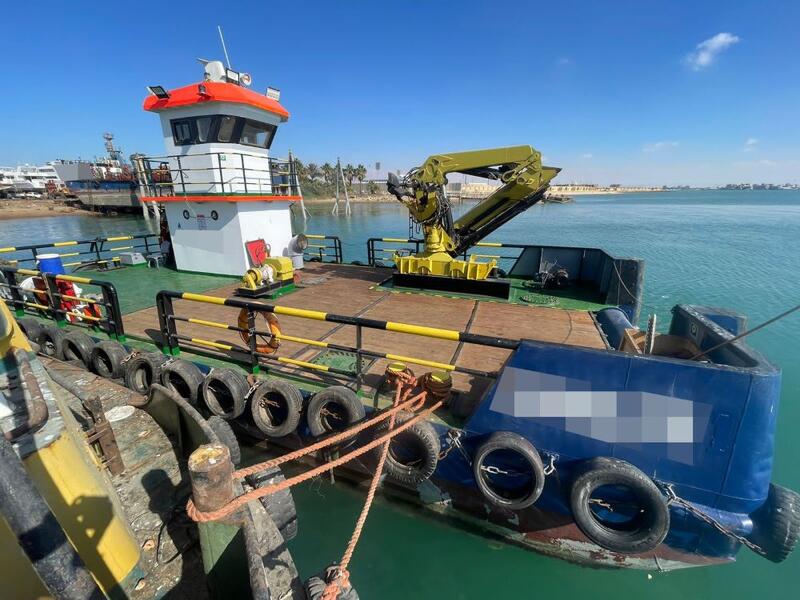

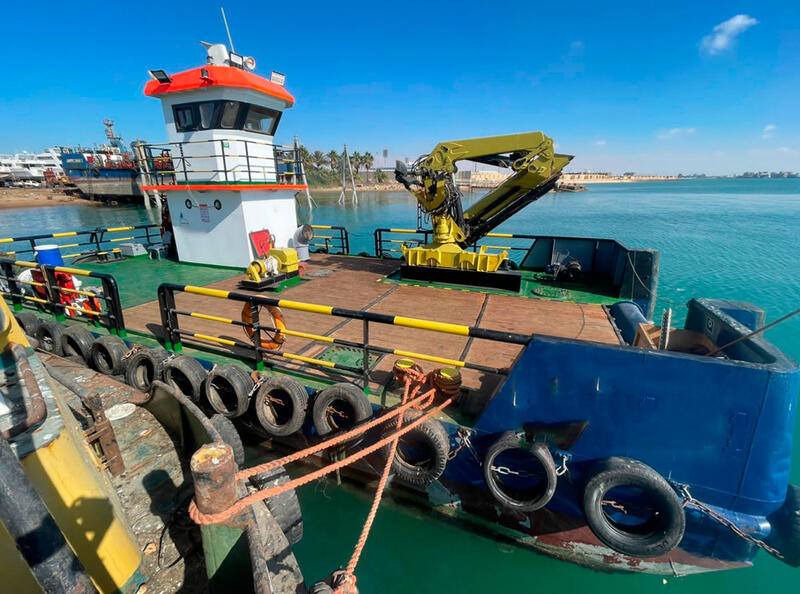

DO0368 Multicat For Sale
- FROM DIRECT OWNERS -

Worked for one year with DEME in Abu Qir Port expansion project and 5 months with NMDC in Bardawil Lake Project.

Last dock in 2023 and vessel needs some maintenance on the hydraulic system of the crane ( Palfinger PK32000) that could be done before the delivery, if required.

TANK CAPACITIES
FUEL OIL Main - 15 TON ABT , Daily – 2X2.5 TON ABT
FRESH WATER 3.2 TON ABT
FRESH WATER BALLAST FWD 7.2 TON ABT
FRESH WATER BALLAST AFT 2X 5.1 TON ABT
SEWAGE TANK 0.2 M3

Specifications

Accommodation

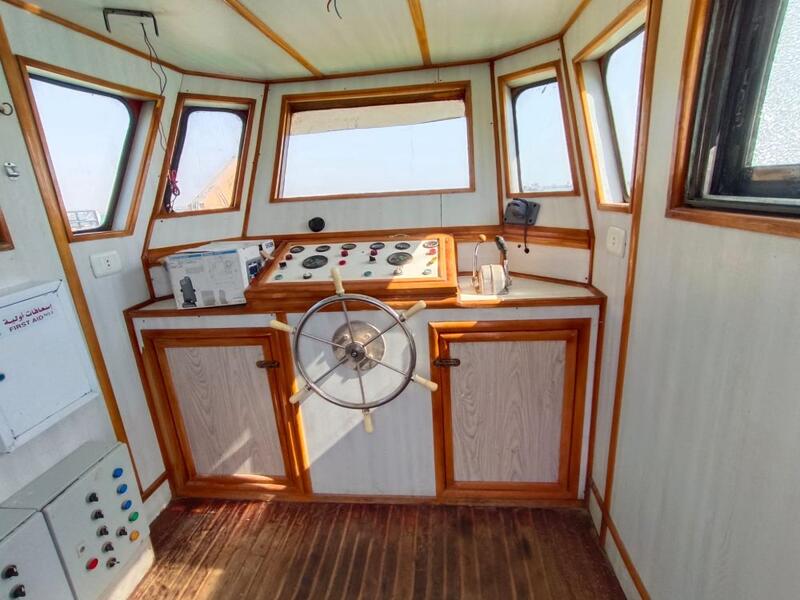

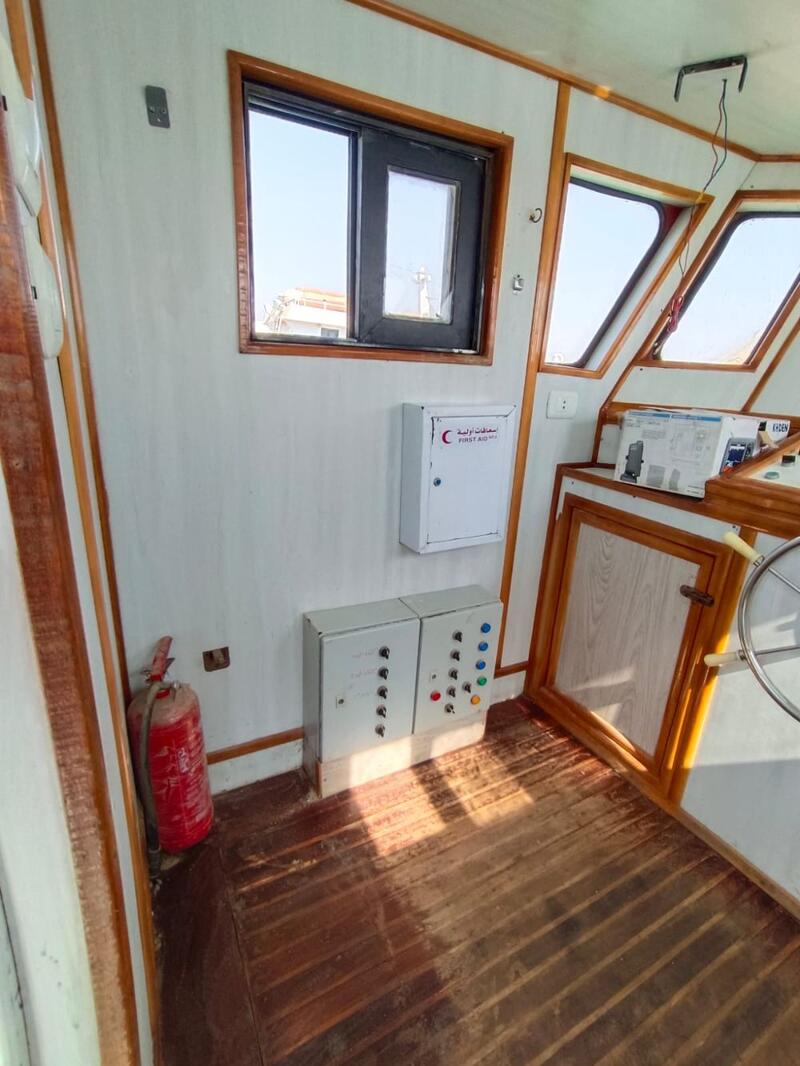

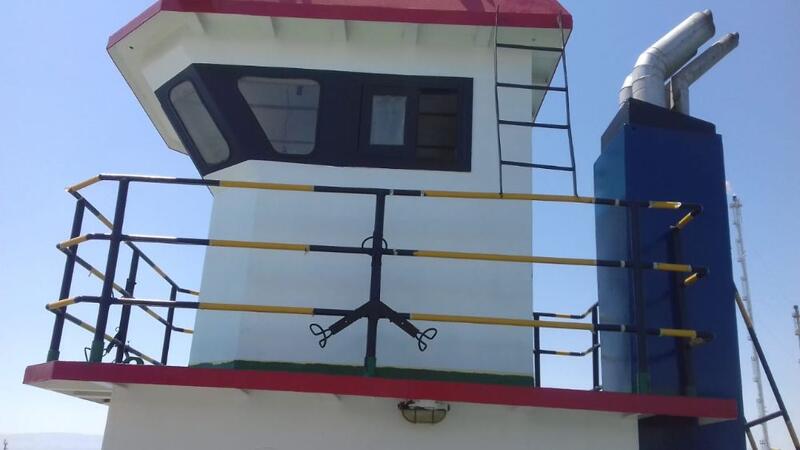

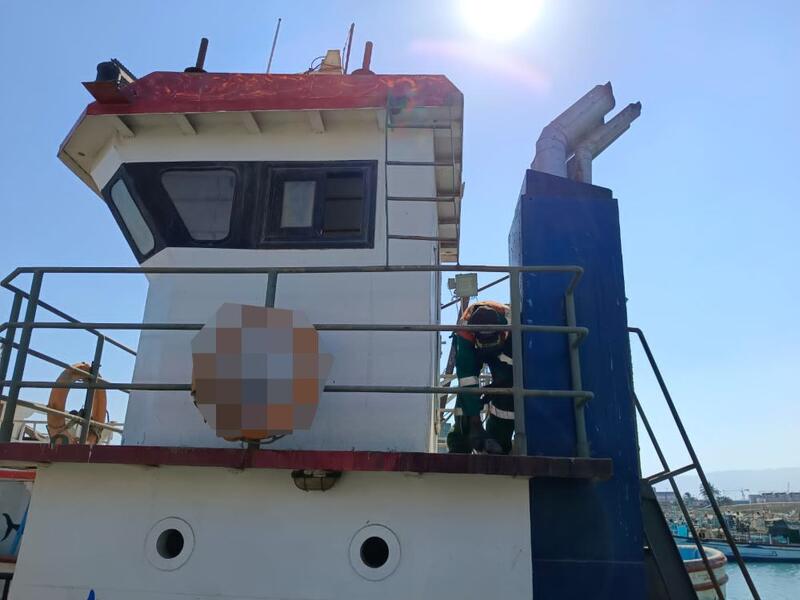

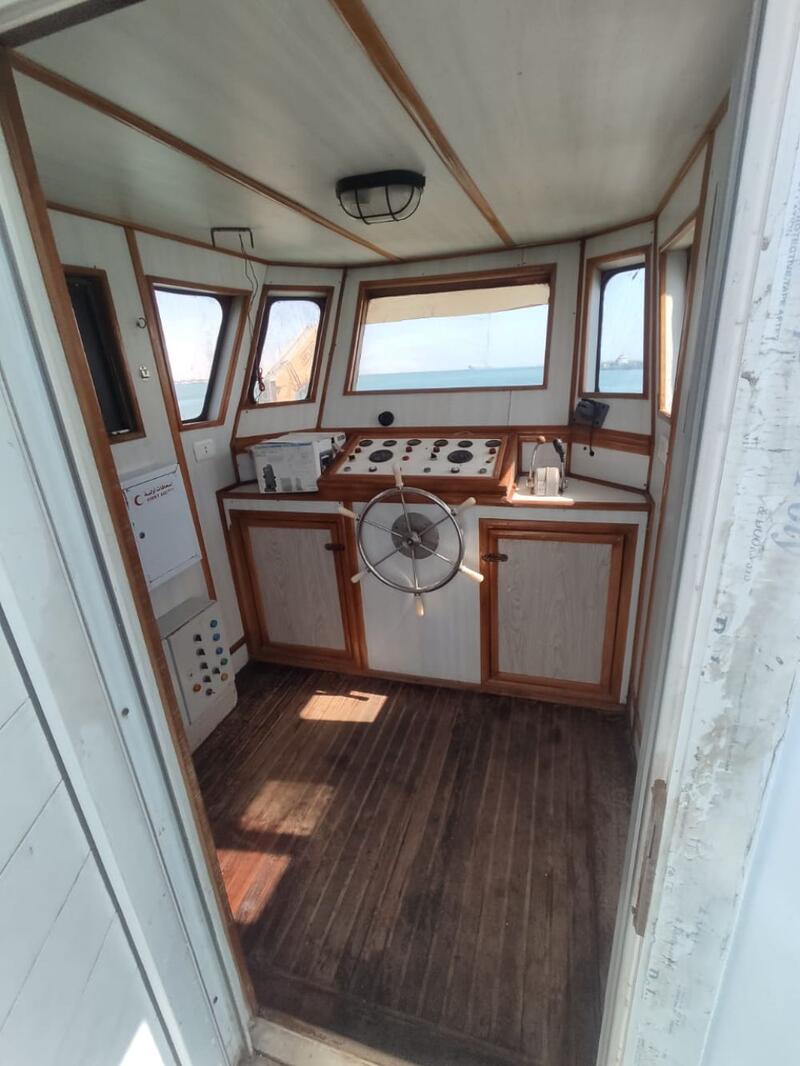

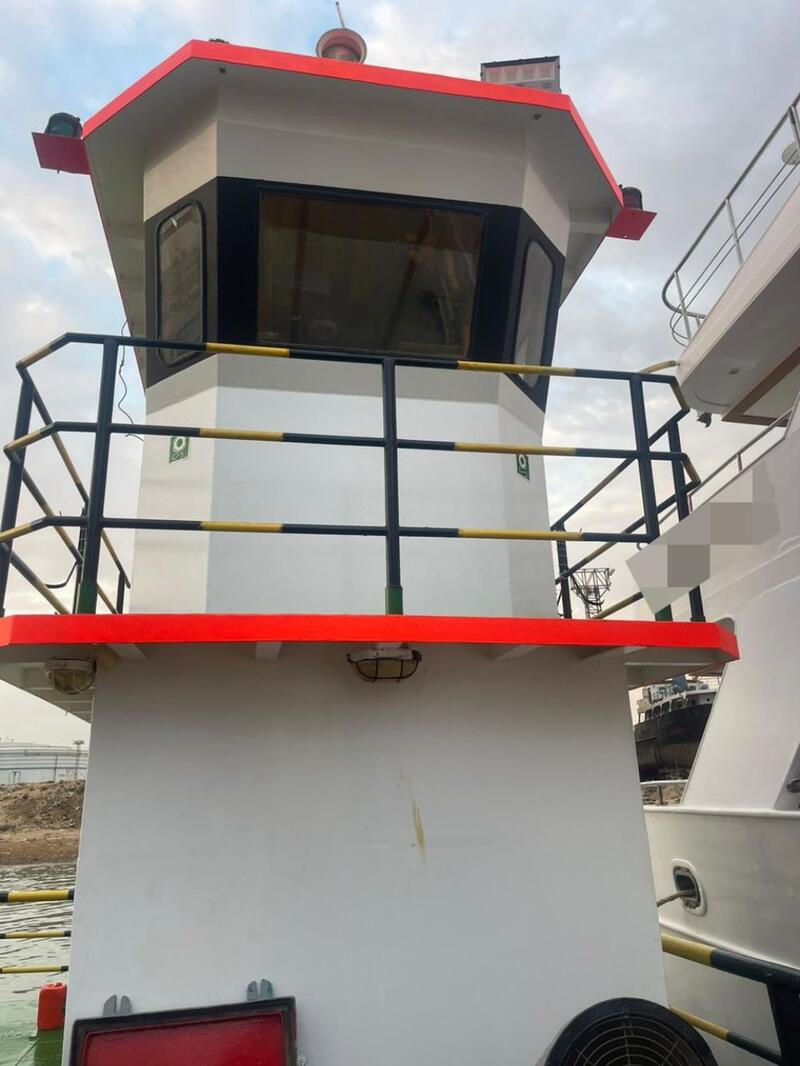

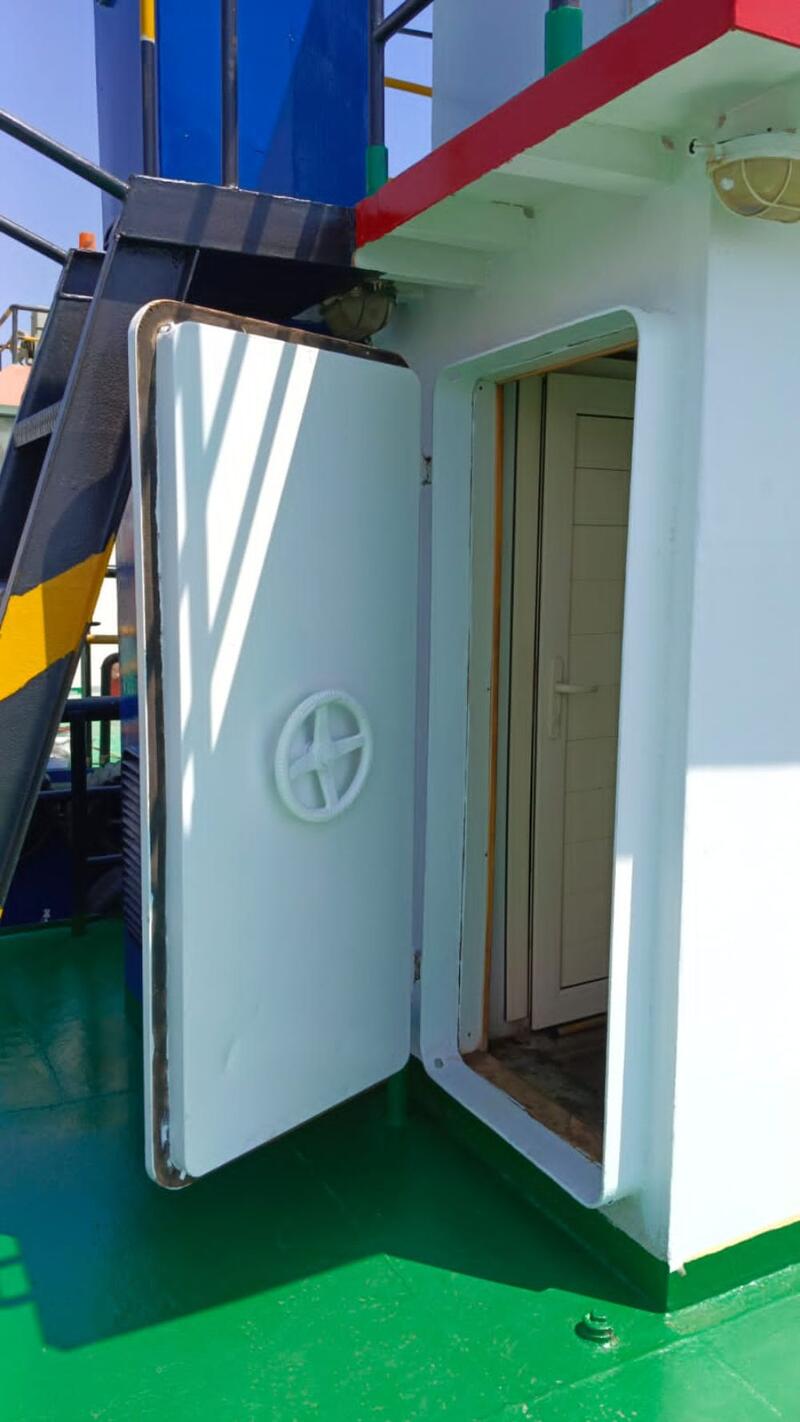

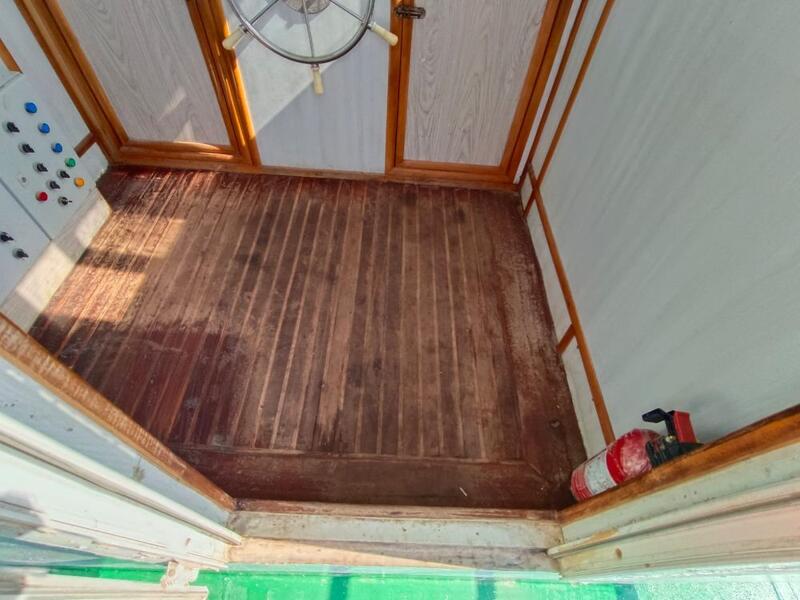

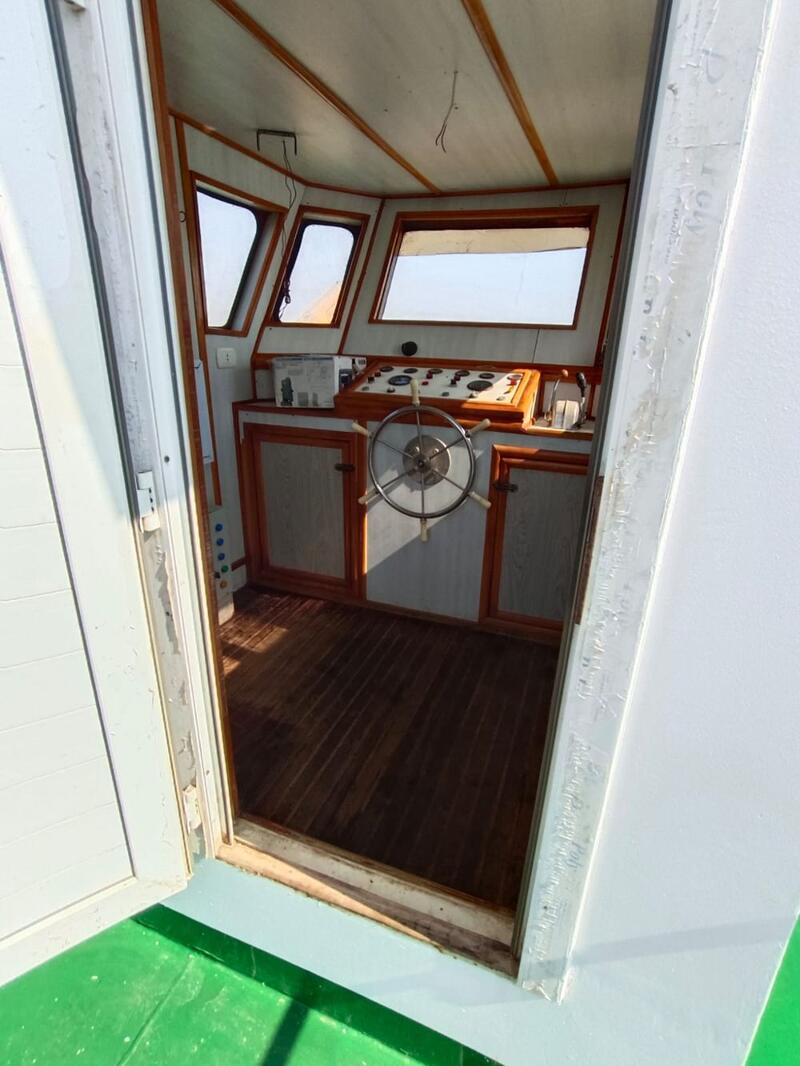

Main Wheelhouse and crew cabin and sanitary space over deck, a
store at starboard.

Construction

Built (year and place) 2021,EGYPT
Hull material Steel
Length Overall (m) 15.00 m
Breadth (m) 7.00 m
Depth (m) 2.00 m
Draft (m) 0.90 m

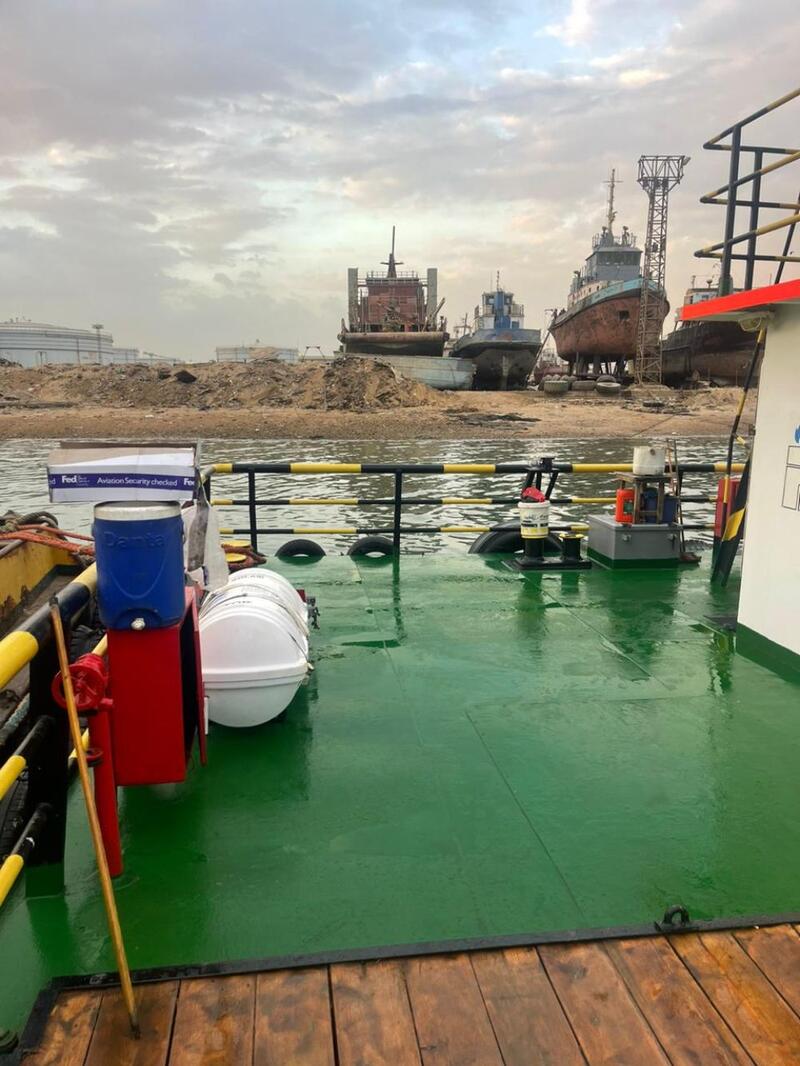

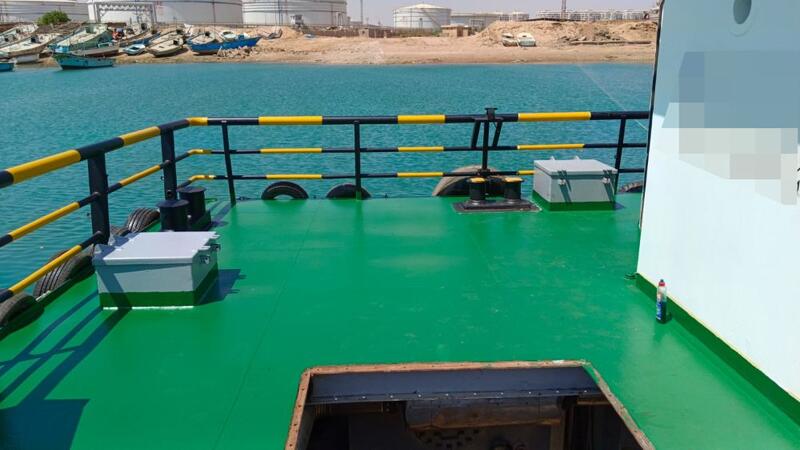

DECK LAY-OUT
ANCHOR 150 kg Pool
CHAIN 50 M, 16 mm.
ANCHOR WINCH Electrical operated.

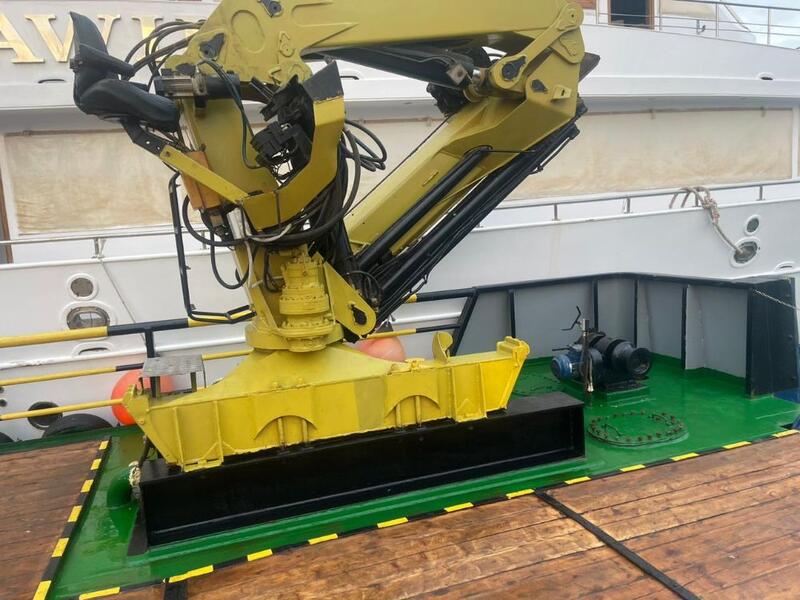

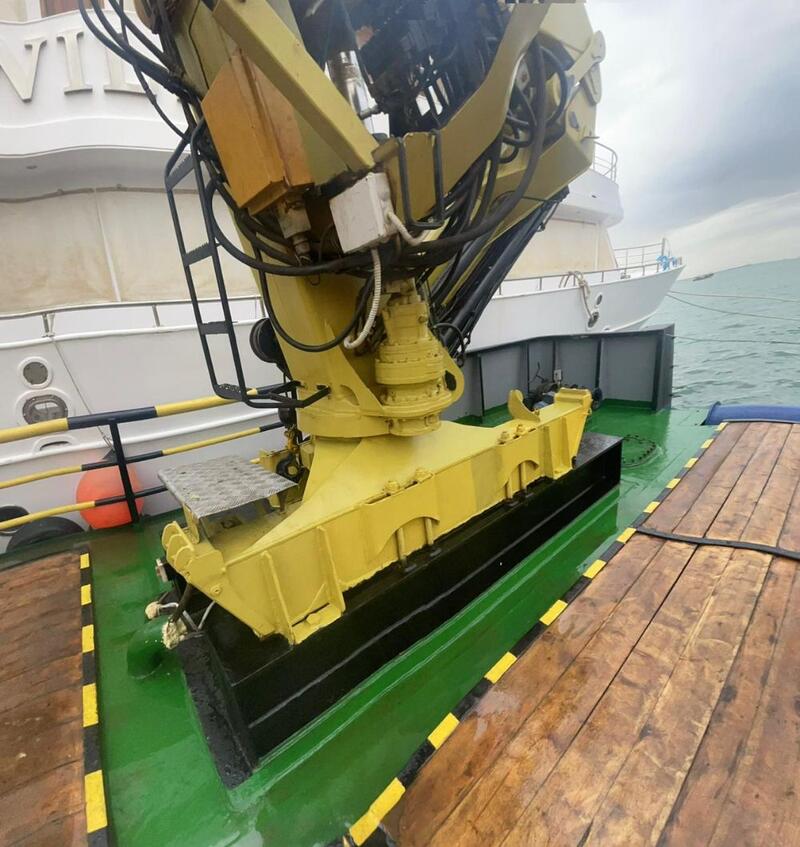

DECK CRANE Palfinger PK 32000 E, 1.5 ton@14.6m
ANCHOR HANDLING WINCH 25 T Pull
BOW ROLLER 2500mm width, 500mm Dia.

Equipment

SCANTLINGS Hull plating 8 mm

AUXILIARY EQUIPMENT
BILGE PUMP SEAFLO Series DC.
FRESH WATER PUMP 1 X Perkins 4.4TW2GM, 106kVA

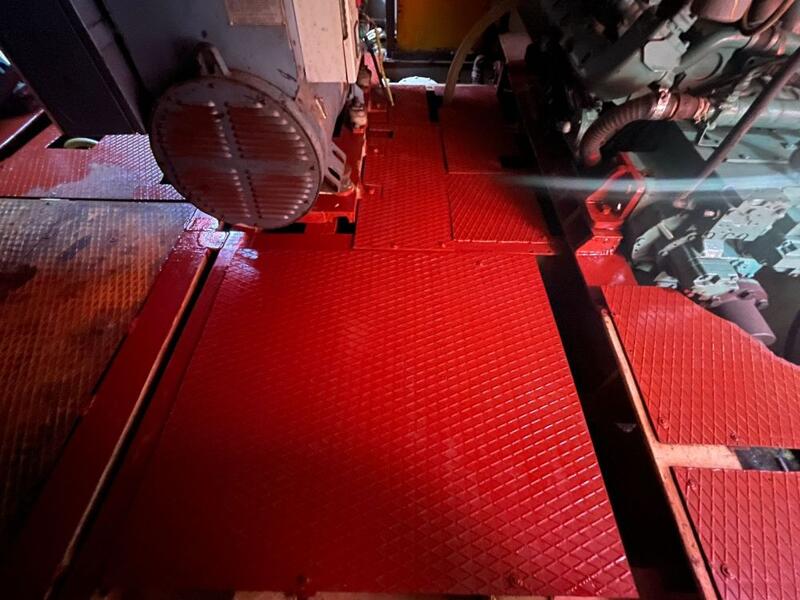

GENERATOR SET 230/400V, 50Hz (Main) 1 X CAT C4.4DIT, 64.4 kVA
230/400V, 50Hz (Stand-by)
BATTERY SET 4 X 24V 150Ah

GEARBOXES DMT144H (Ding-I) / 2.51:1
DIAMETER propellers
STEERING SYSTEM 2 X 750mm in nozzles Hydraulic steering System

Navigation Equipment

SEARCHLIGHT
HORN
COMPASS
VHF RADIO TELEPHONE
VHF HAND HELD
GPS
ECHOSOUNDER
RADAR

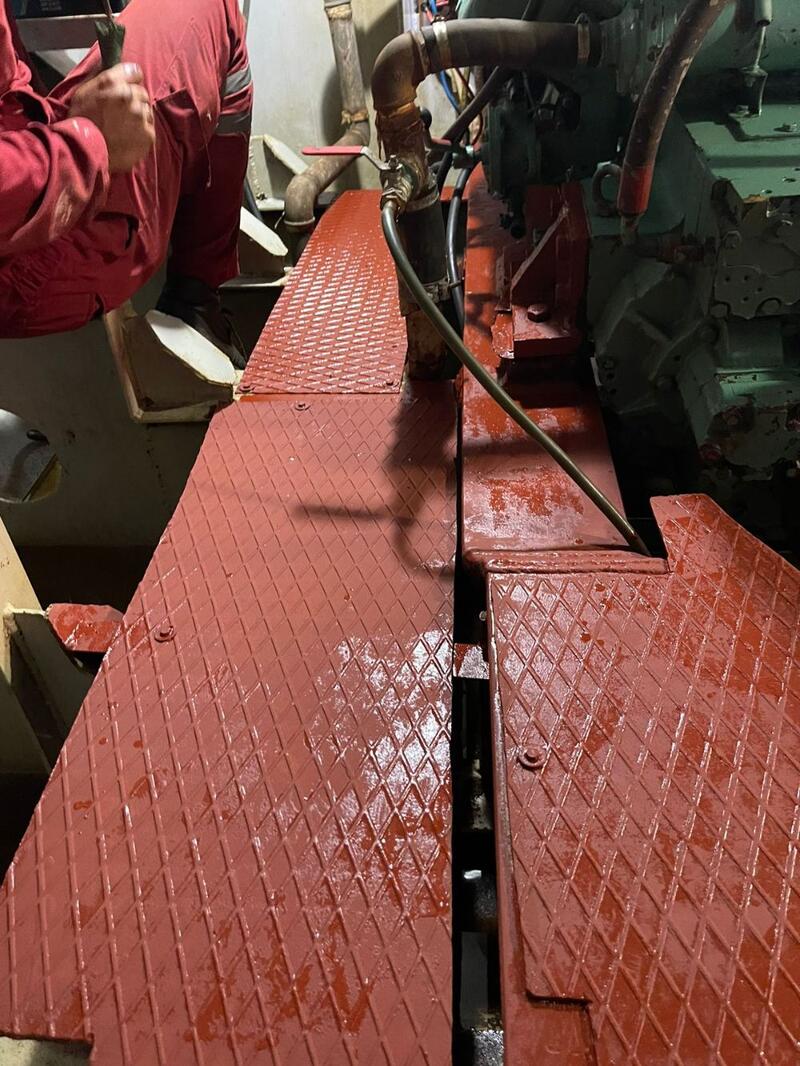

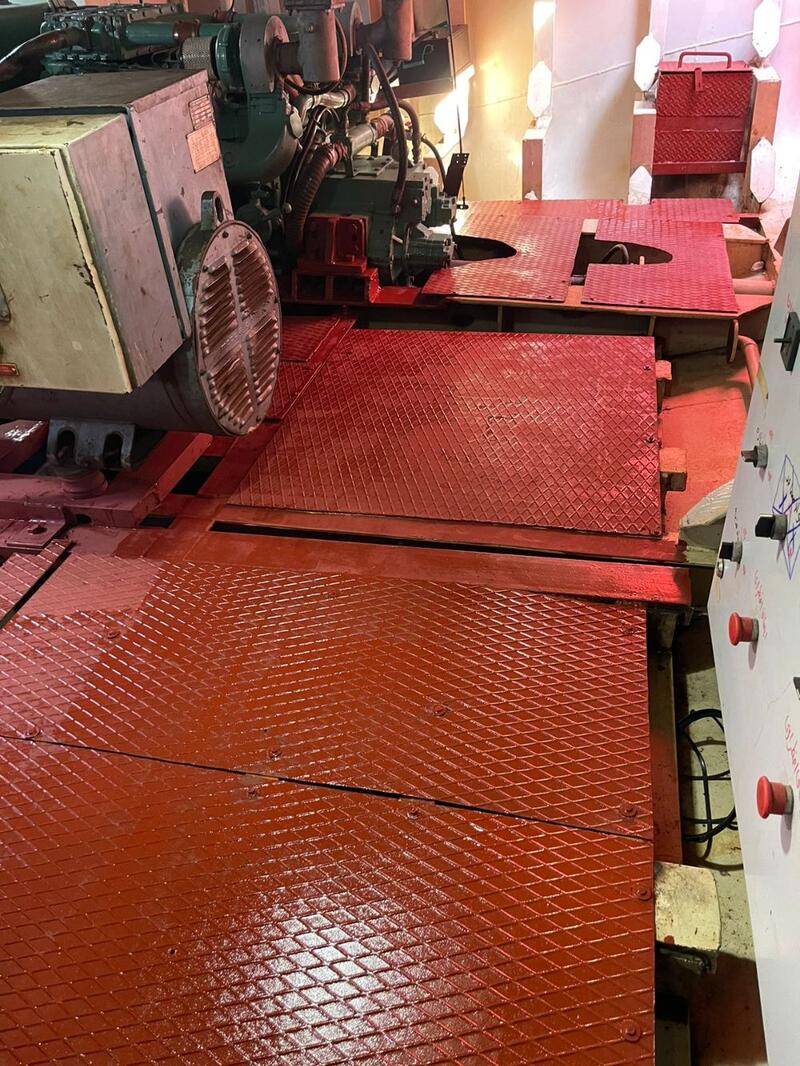

Engine(s)

Total power output (BHP) 1300 bhp

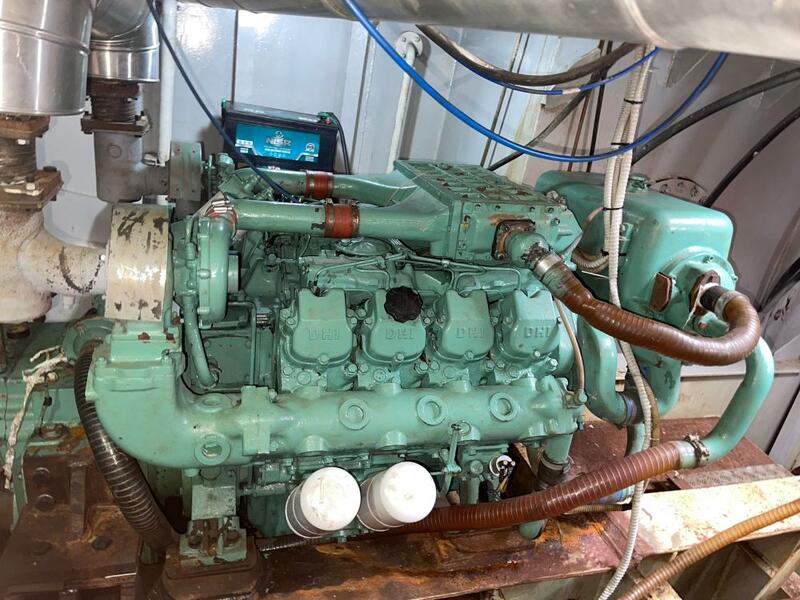

Main Engine(s) (make,type) 2 x Daewoo 8 cylinder
Main Propulsion System 2 X Bronze fixed pitch
Speed cruising 7 knots

Certification

Flag TANZANIA
Class Society and Notation ITMB
Next DD January 2027
Next SS January 2027
