| Blue Sea Brokers | |
| Nigrán, Pontevedra, 36350, Spain | |
| Telephone: | Reveal Telephone Number |
| View All Blue Sea Brokers Listings | |
| $5,400,000 | | |
| Status: | Available |
| Location: |
USEC USA [View Map] |
| Reference: | DO0357 |

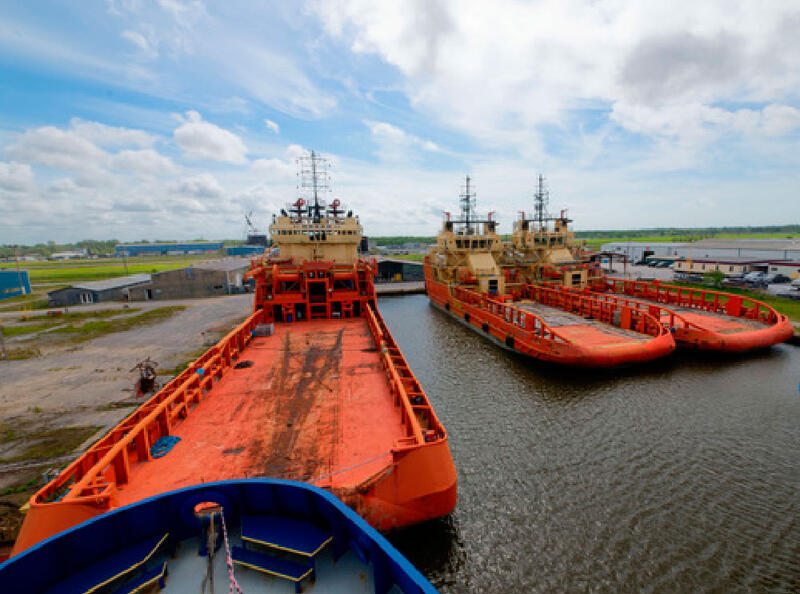

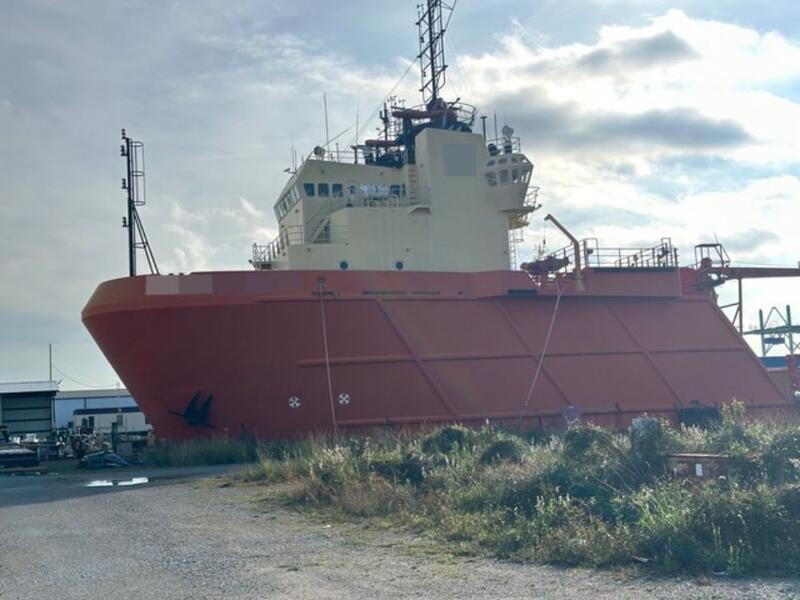

Description
DO0357 Offshore - AHTS For Sale
- FROM DIRECT OWNERS -
Certificates expired since 2016
CAPACITIES
Fuel Oil 178,576 gals. (675.98 cu. m)
Ballast 325,615 gals. (1,232.59 cu. m)
Fresh Water 23,068 gals. (87.32 cu. m)
Dry Bulk 5,120 cu. ft. @ 45 psi (144.98 cu. m @ 3.1 bars)
Liquid Mud 2,200 barrels (349.77 cu. m)
Specifications
| Vessel type: | DO0357 Offshore - AHTS For Sale |
| Constructed: | 1986 |
| Refitted: | 2002 |
| Class Society: | ABS Towing Vessel |
| Class Notation: | OSV, AH, AMS, DPS-2 |
| Guests: | 34 |
| No. of engines: | 3 |
| Engine model: | EMD (Electro-Motive) 20-645 |
| Engine power: | 10800 |
| Length over all: | 73.15m |
| Beam: | 15.85m |
| Maximum draft: | 4.57m |
| Dry Weight: | 1551 metric tons |
| Fuel capacity: | 676 Cubic Metres |
| Water capacity: | 87 Cubic Metres |

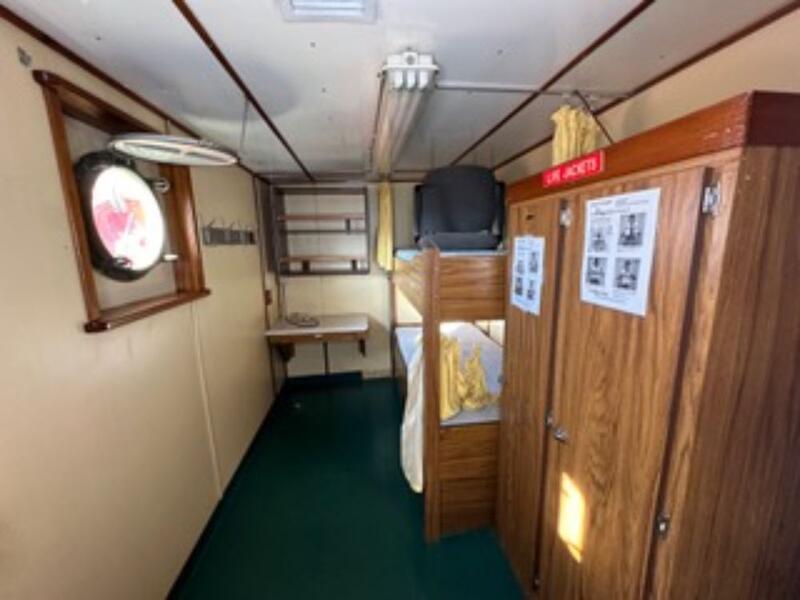

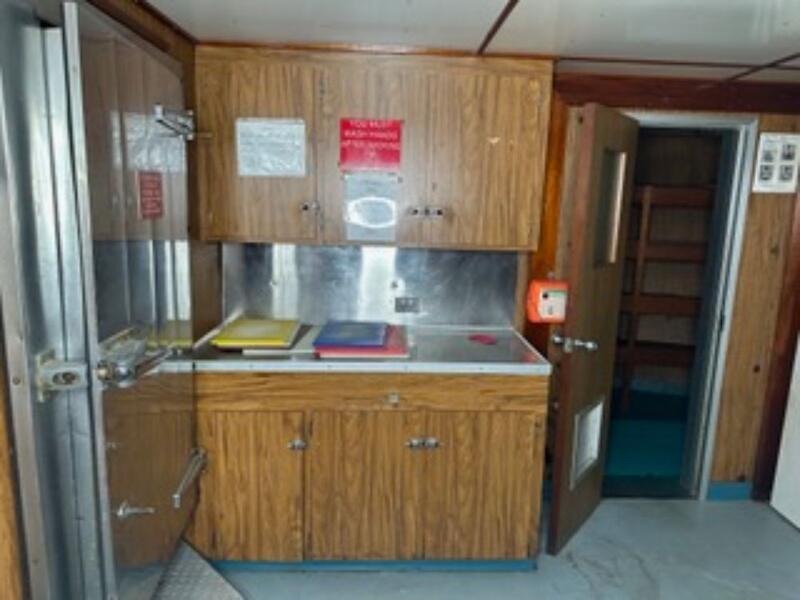

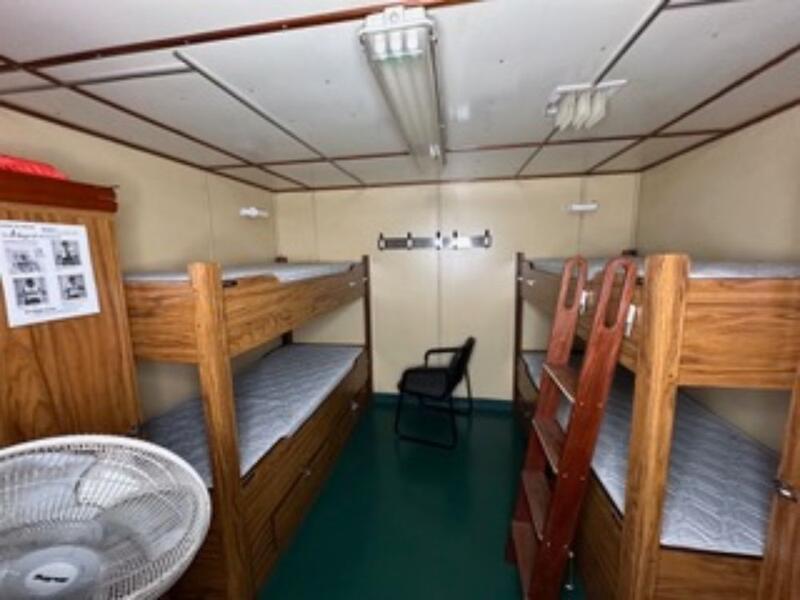

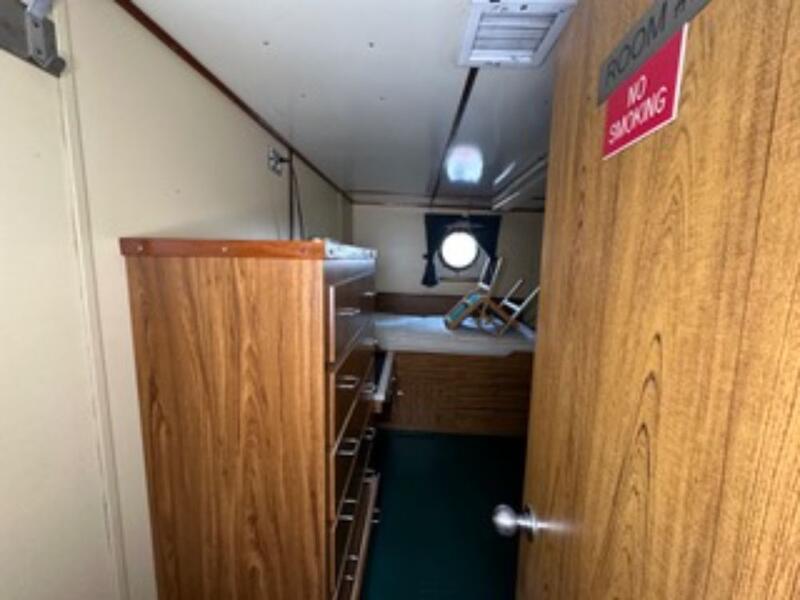

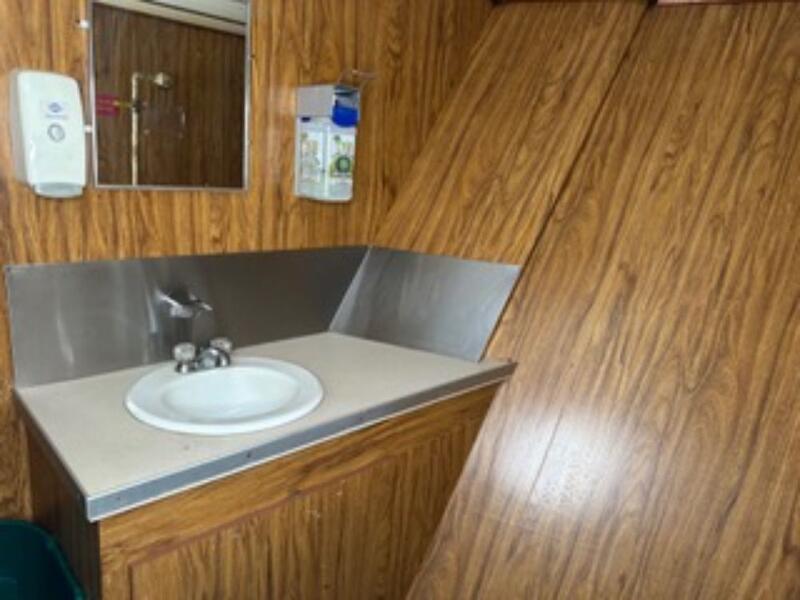

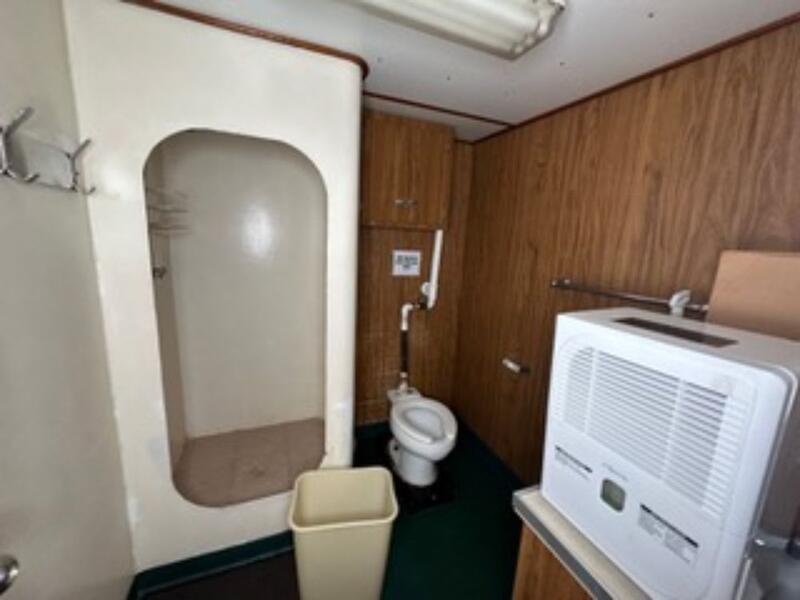

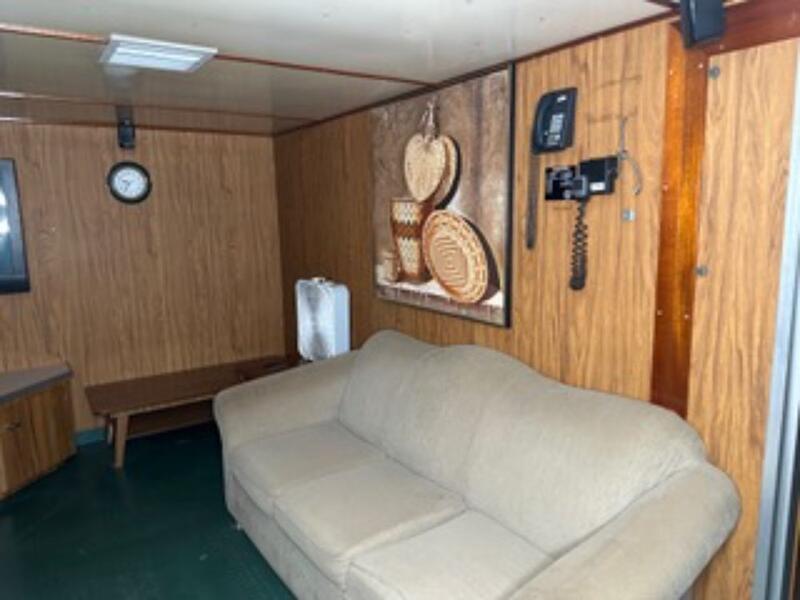

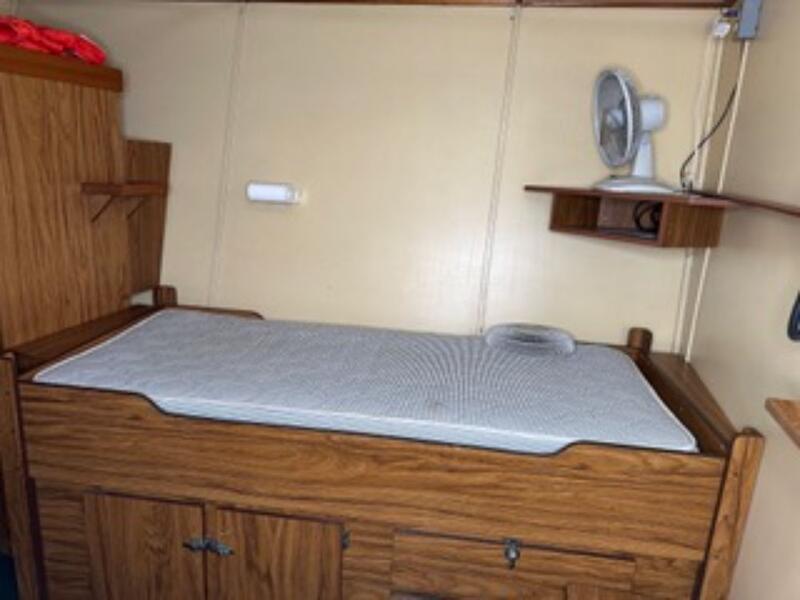

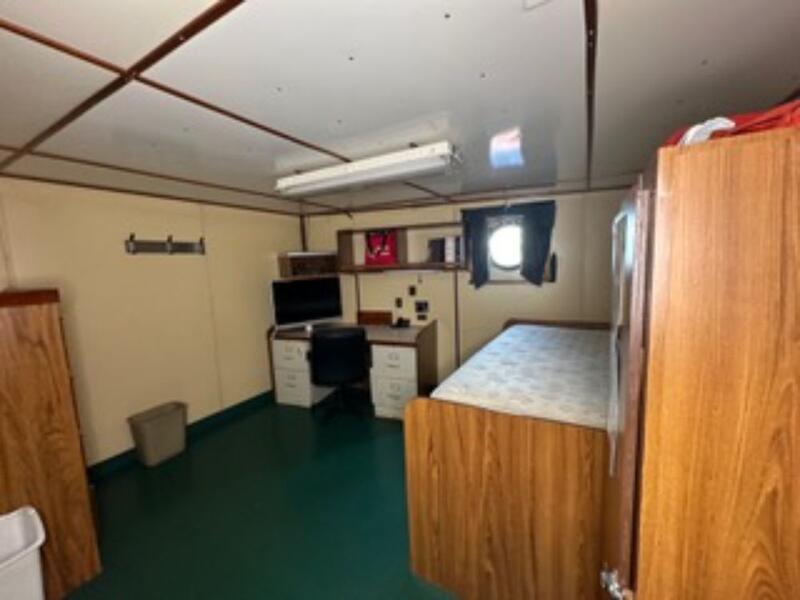

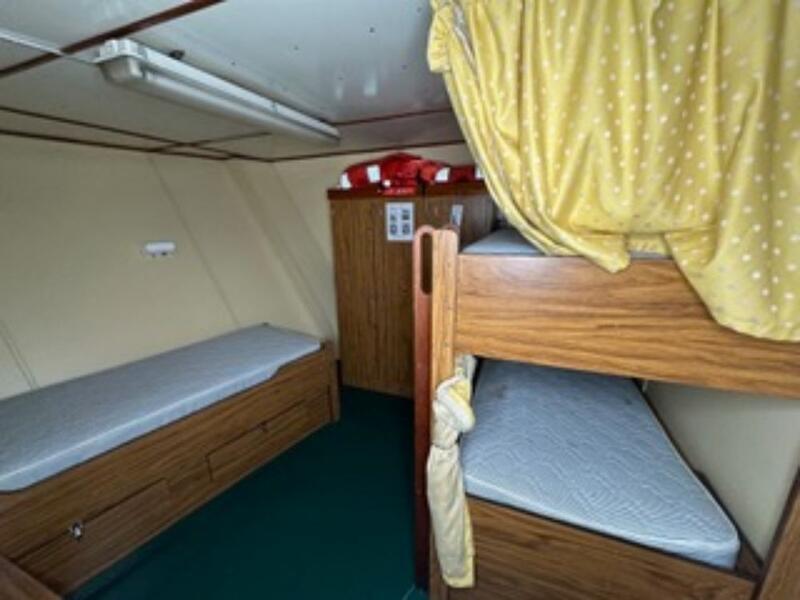

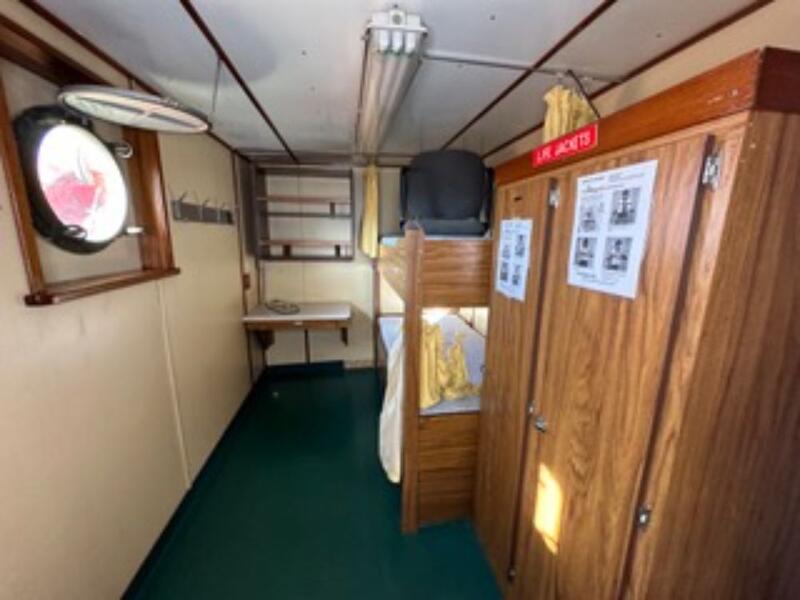

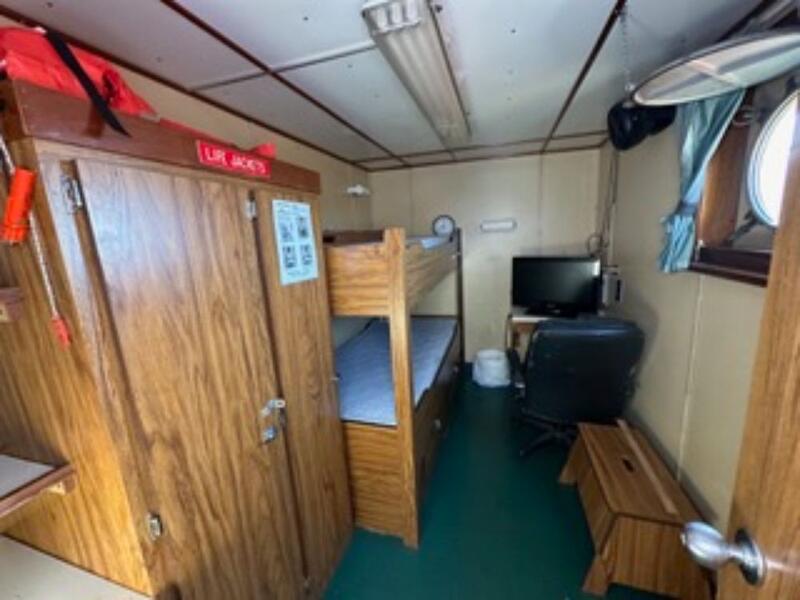

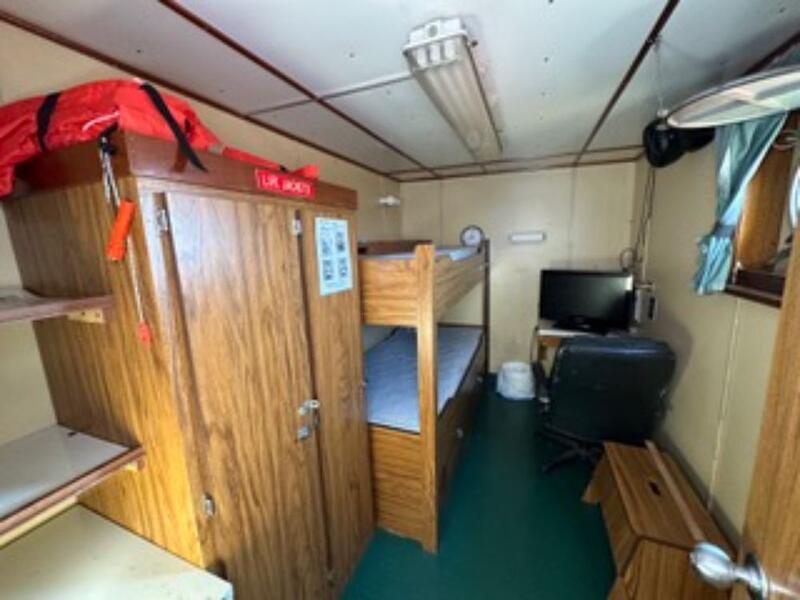

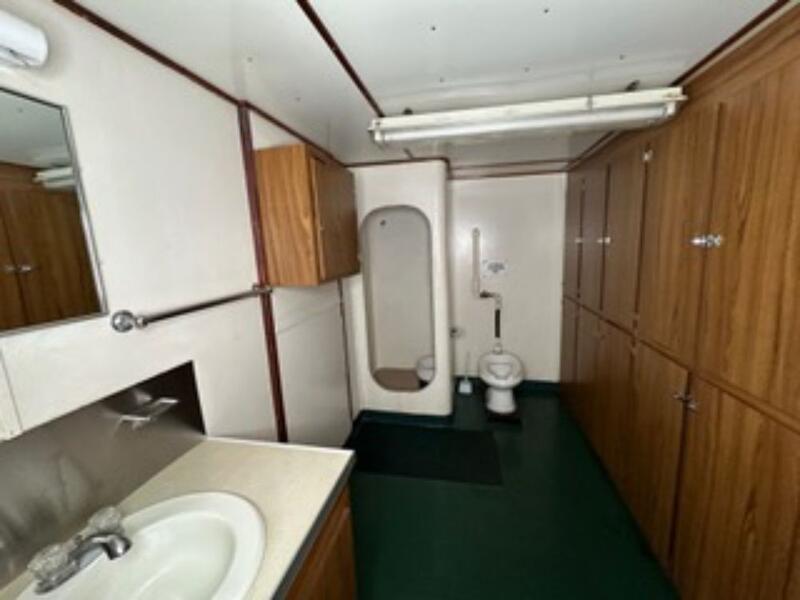

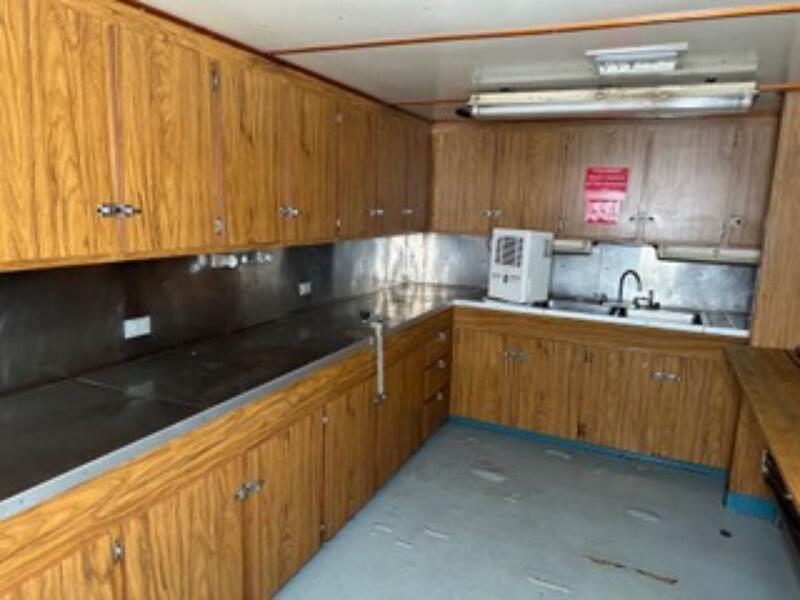

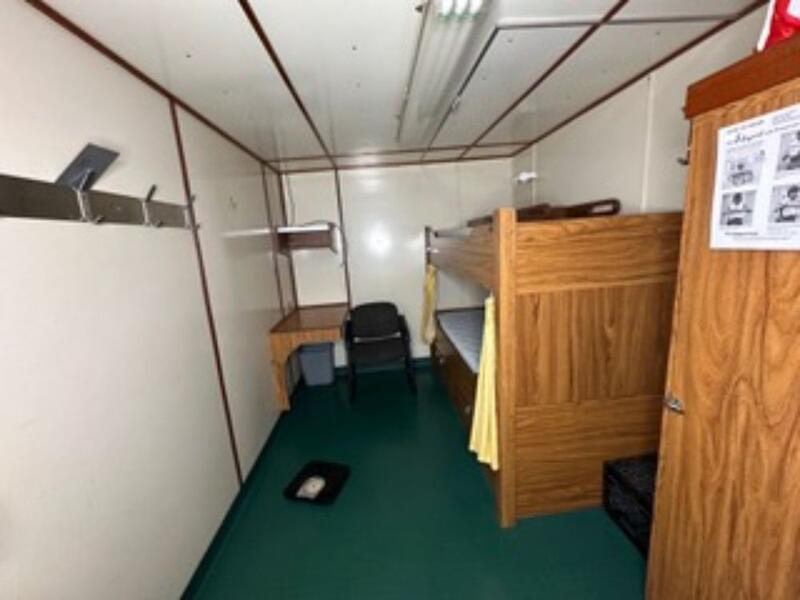

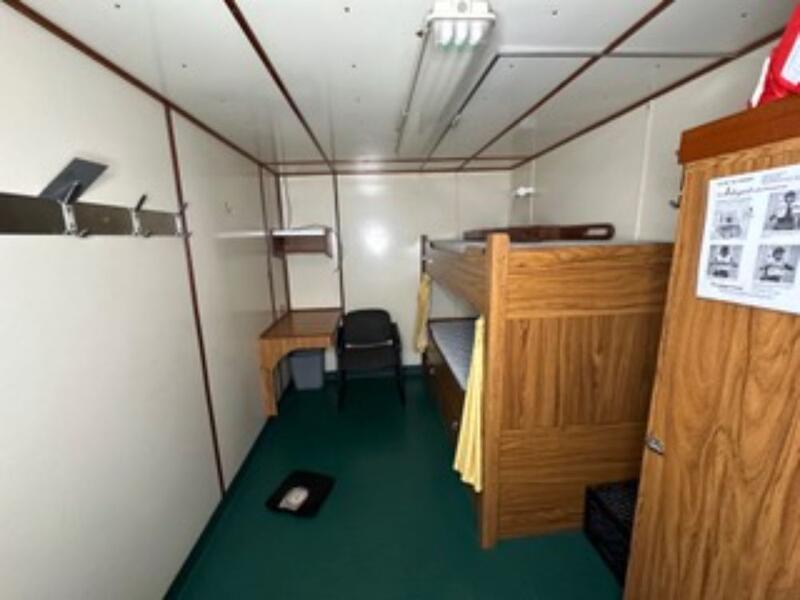

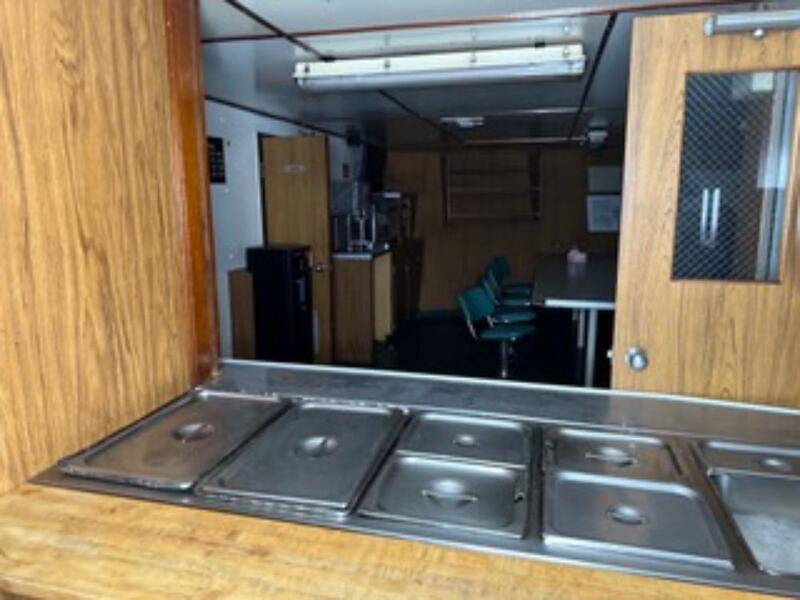

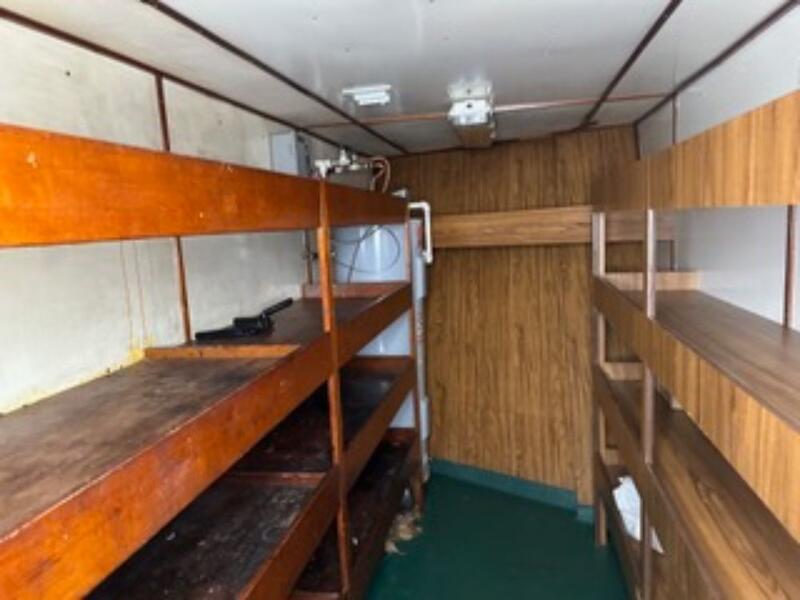

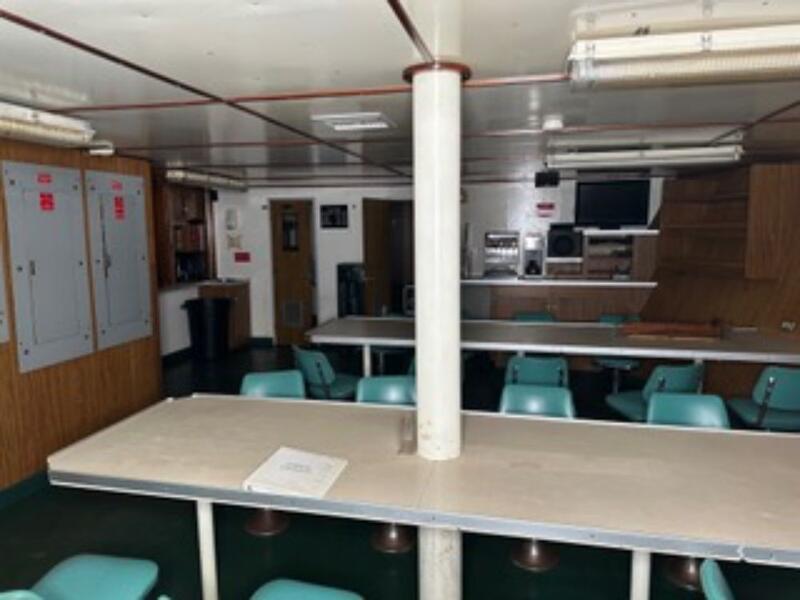

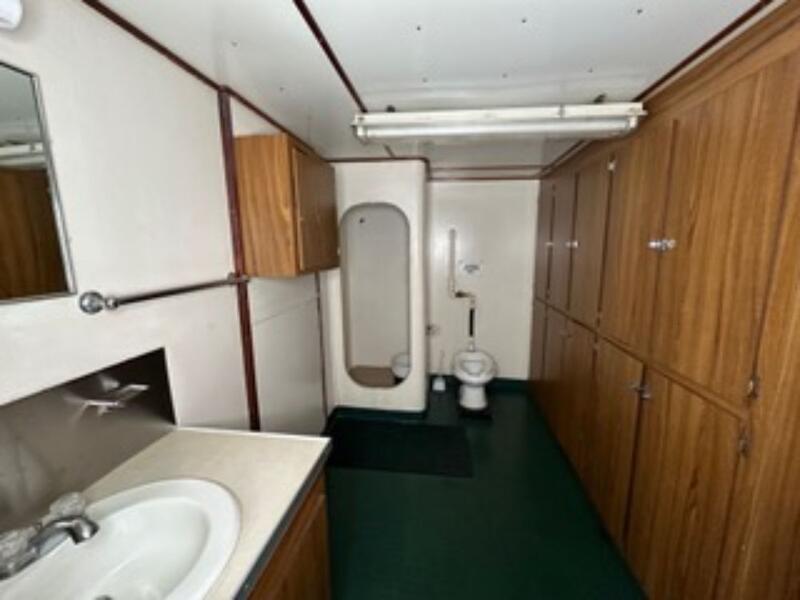

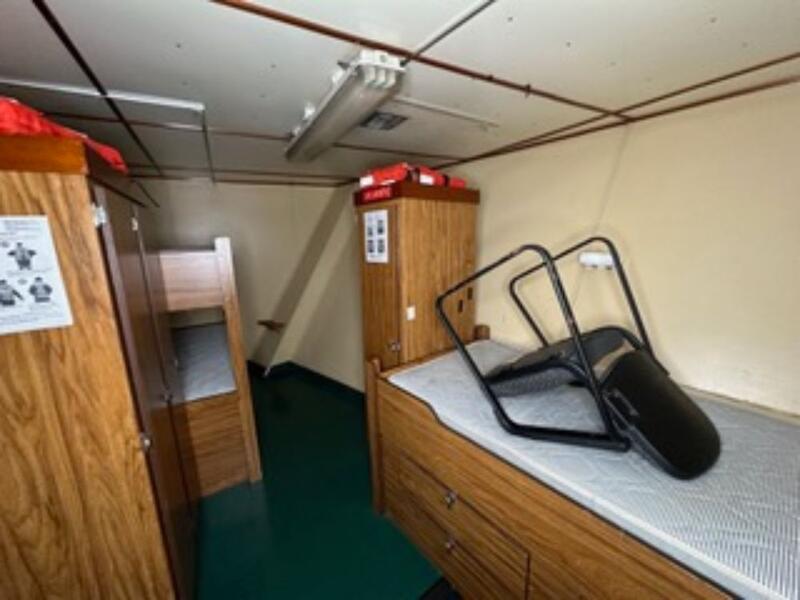

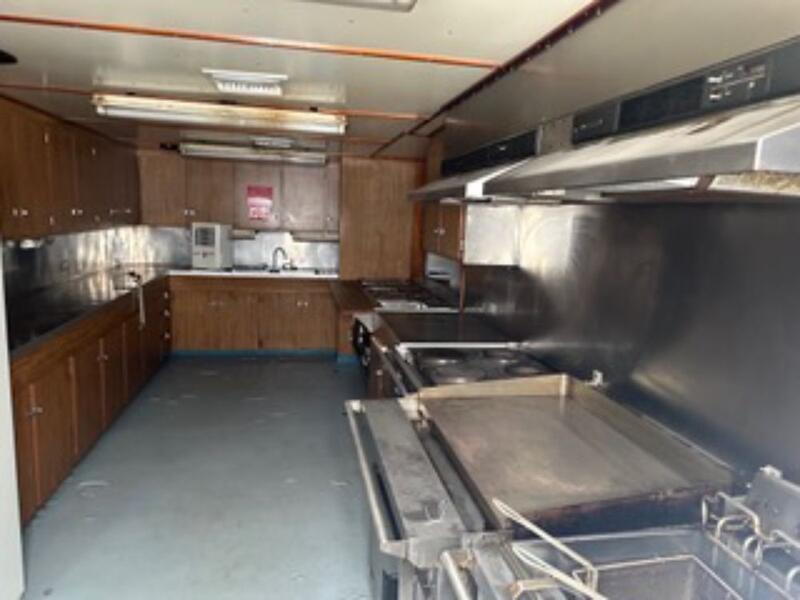

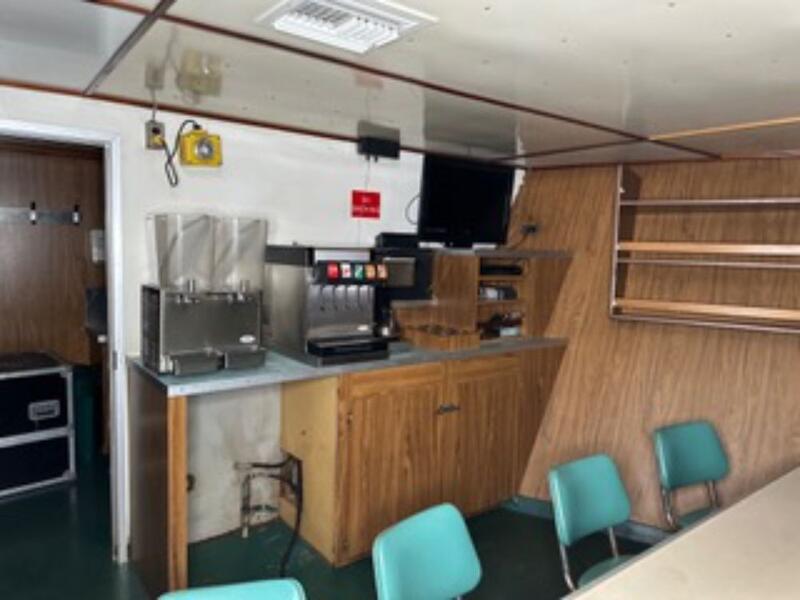

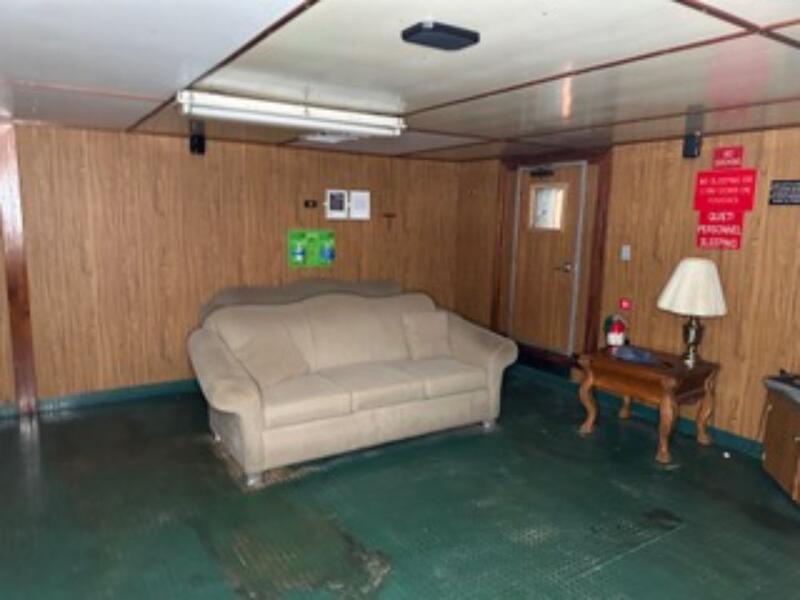

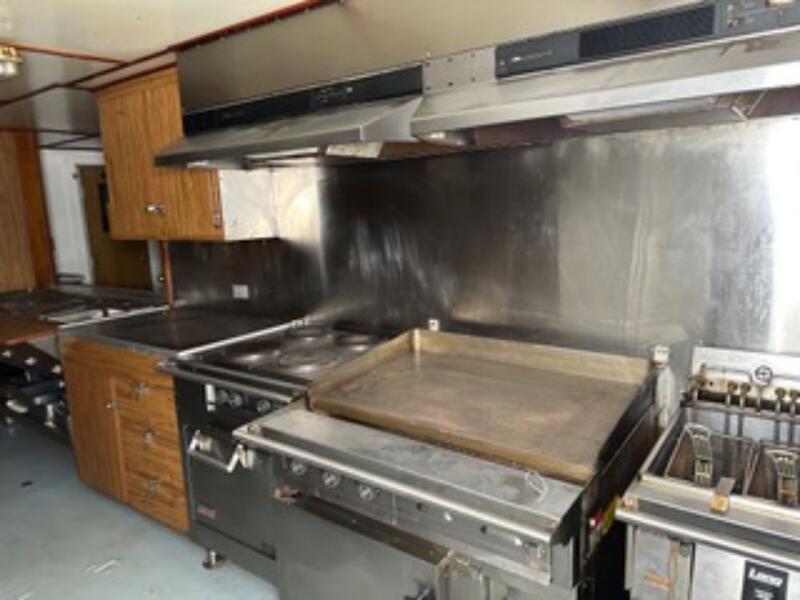

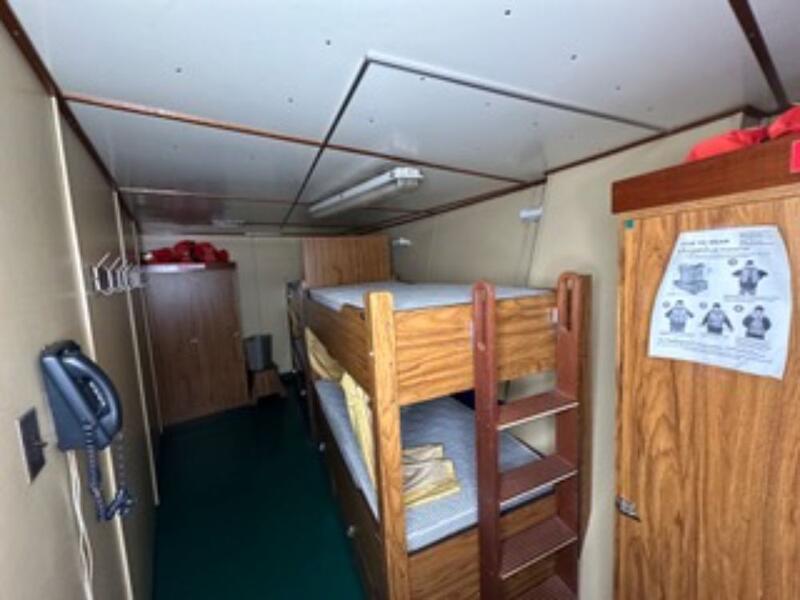

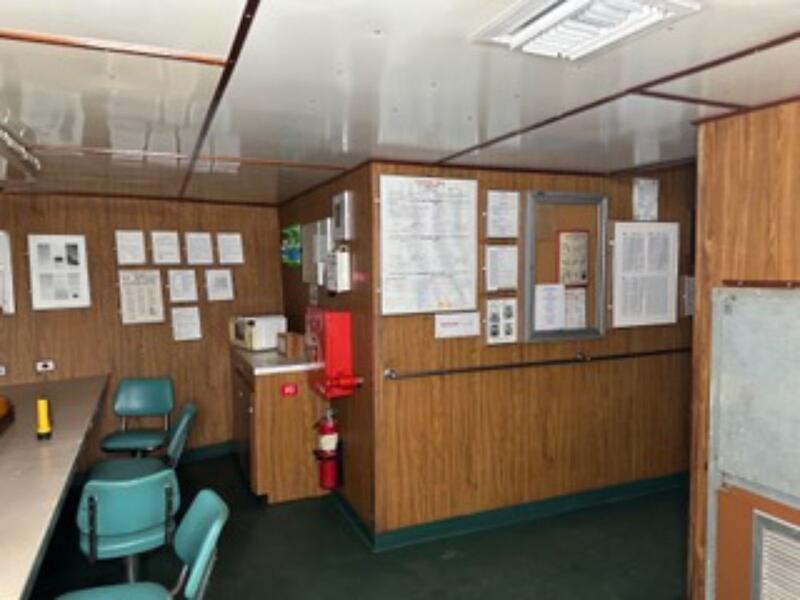

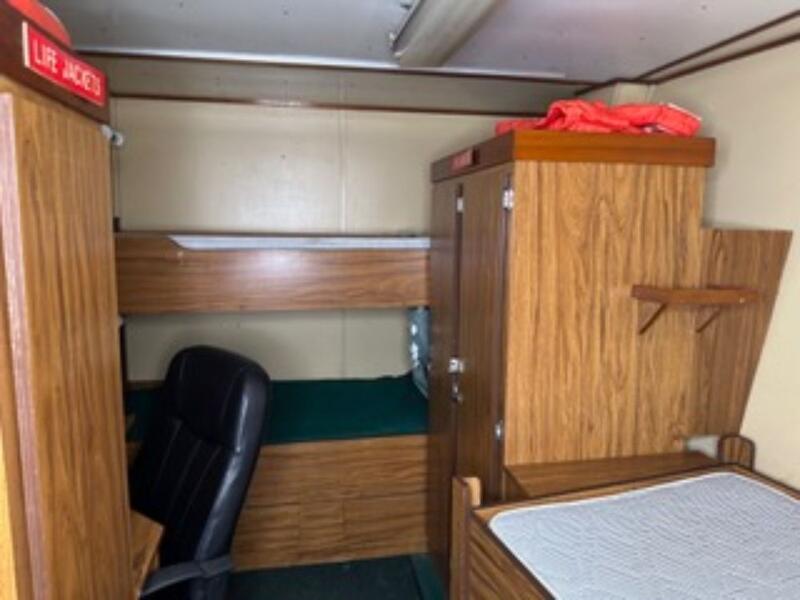

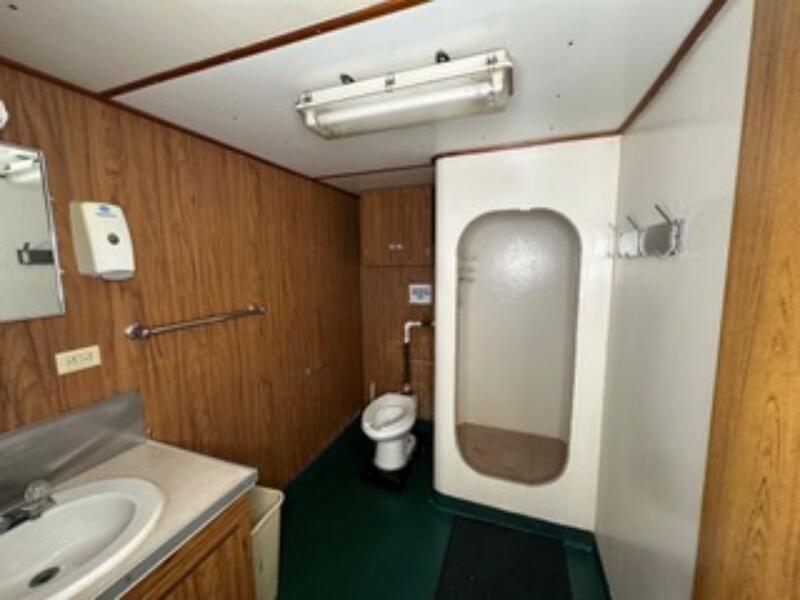

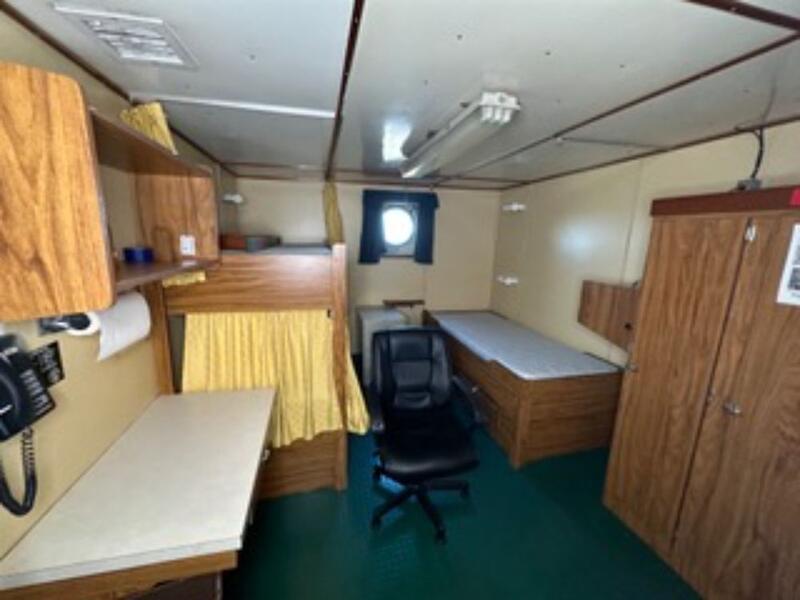

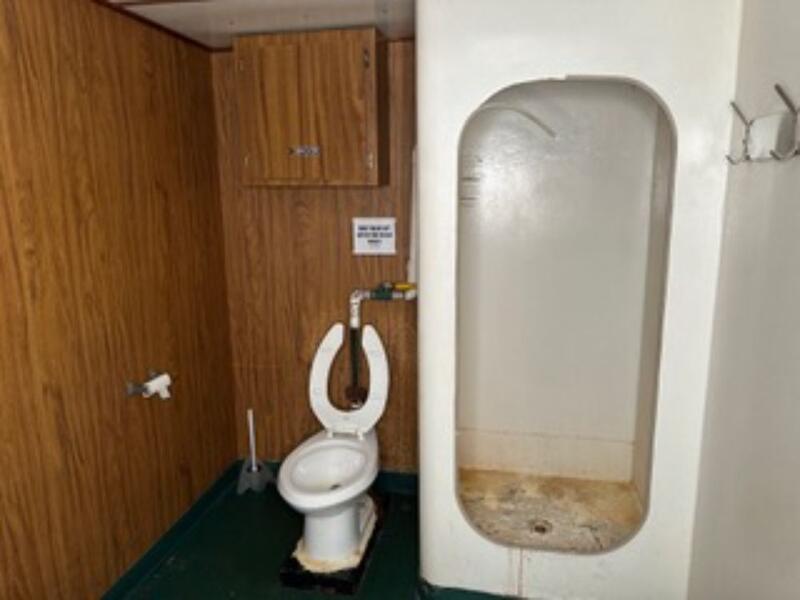

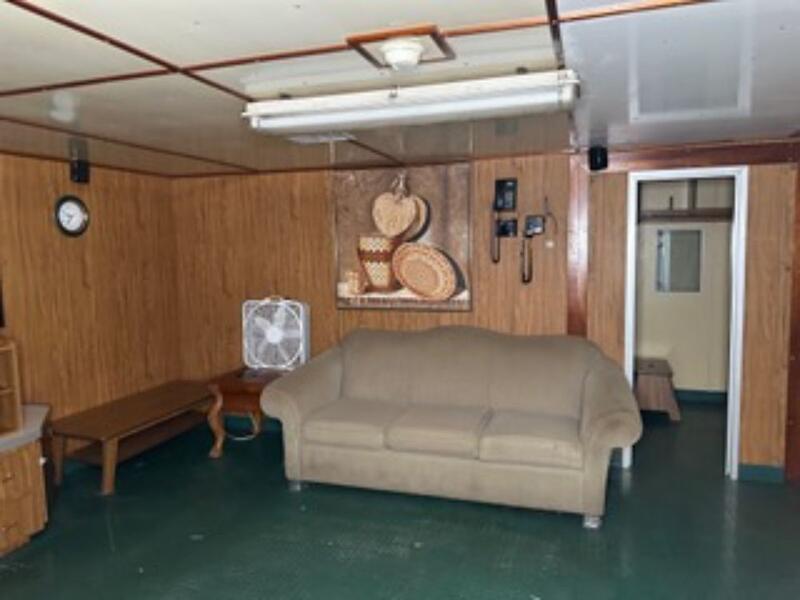

Accommodation
Accommodations 34
Construction
Built (year and place) 1986,
Hull material Steel
Length Overall (m) 73.15 m
Breadth (m) 15.85 m
Depth (m) 5.64 m
Draft (m) 4.57 m
DWT (tons) 1551 tons
Draft (Maximum Operations) 4.78 m
Loadline Displacement 3,770.18 LT (3,830.68 MT)
Clear Deck 135 ft. x 44 ft. (41.15 m x 13.41 m)
Cargo Deck Area 5,940 sq. ft. (551.82 sq. m)
Deck Cargo Capacity 830 LT (843.32 MT)
Deadweight Tonnage 1,527 LT (1,551.50 MT)
Equipment

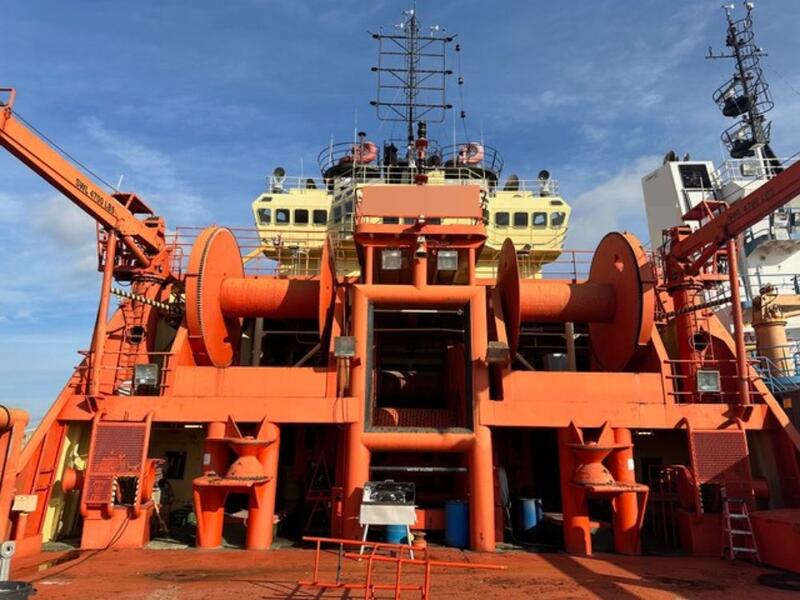

Winches Brattvaag BSL 350 W Double Drum with chain mouse
Line Pull 350 MT or 926,100 lb line pull or 926 KIPS line pull per drum
Chain Lockers Two (2) x 6,000 ft. (1,828.8 m) of 3.5 in. (8.89 cm) chain each
Storage Reels Two (2) x 11,480 ft. (3,499.10 m) of 3 in. (7.62 cm) wire
Wire Capacity Two (2) x 9,800 ft. (2,987.04 m) of 3 in. (7.62 cm) wire per drum @ 350 MT
SPECIAL FEATURES
Shark Jaws One (1) x 350 MT
Tow Pins One (1) x 350 MT
Tuggers One (1) x 12-Ton Forward
Tuggers Two (2) x 10-Ton Aft
Positioning DP 2
Stern Rollers One (1) x 8 ft. x 6 ft.
Cranes Two (2) x 10 tons @ 30° radius

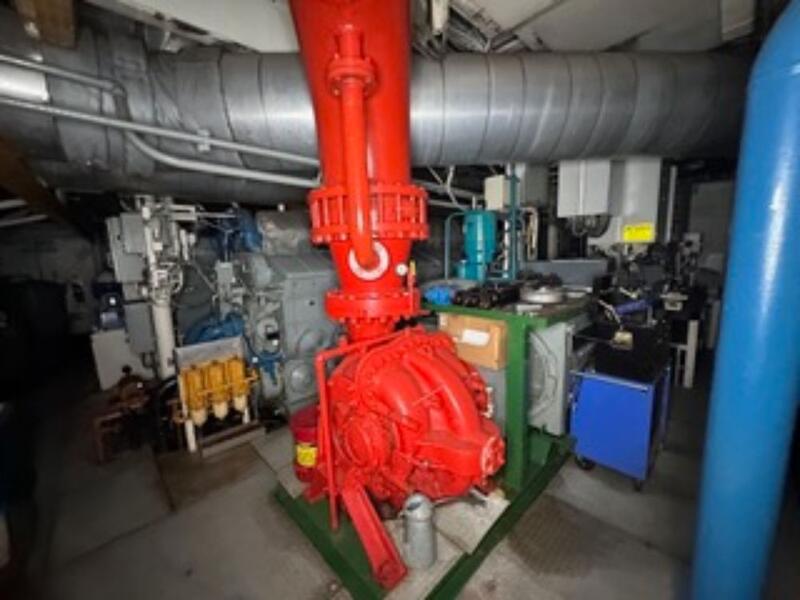

Firefighting Two (2) Monitors @ 12,500 GPM
ROV
ROV Schilling Robotics 200HP UHD rated for 4,000 m

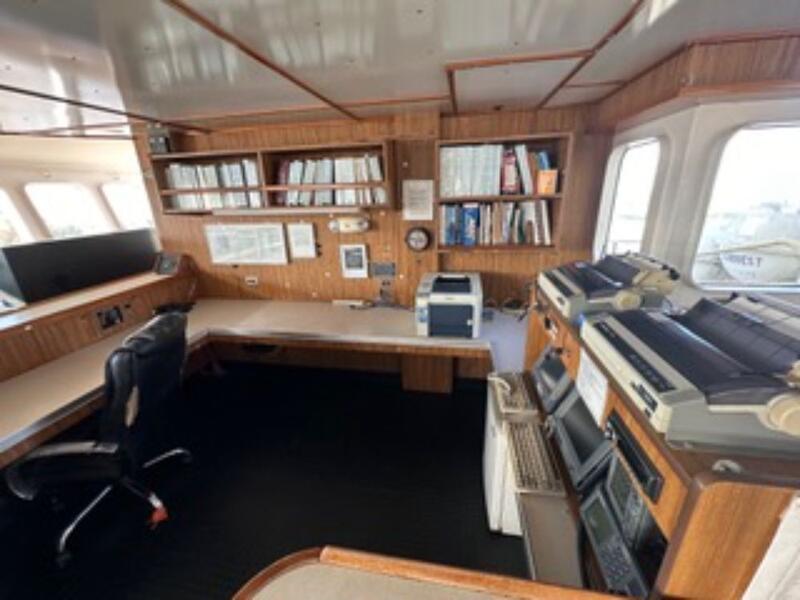

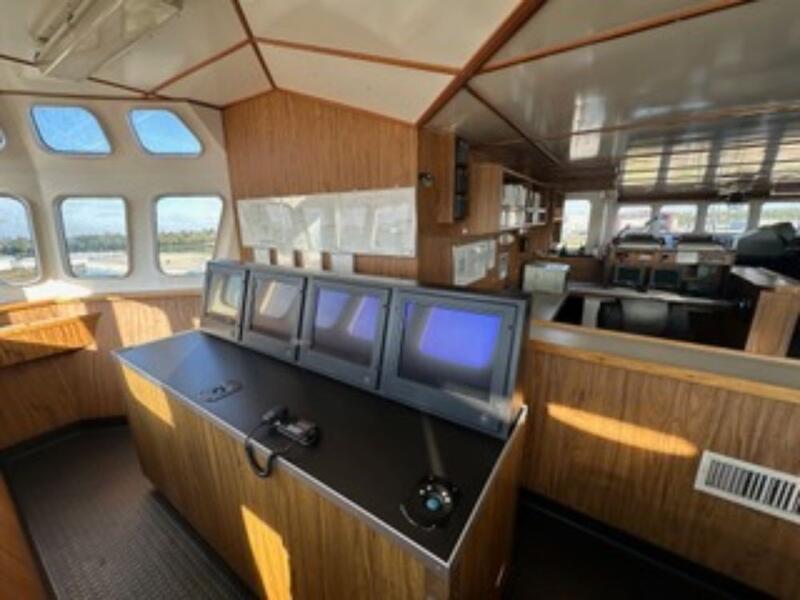

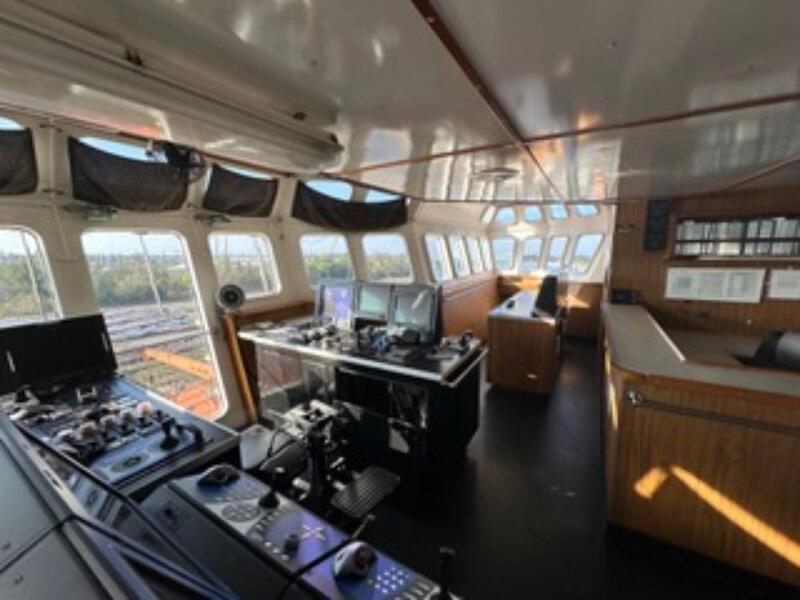

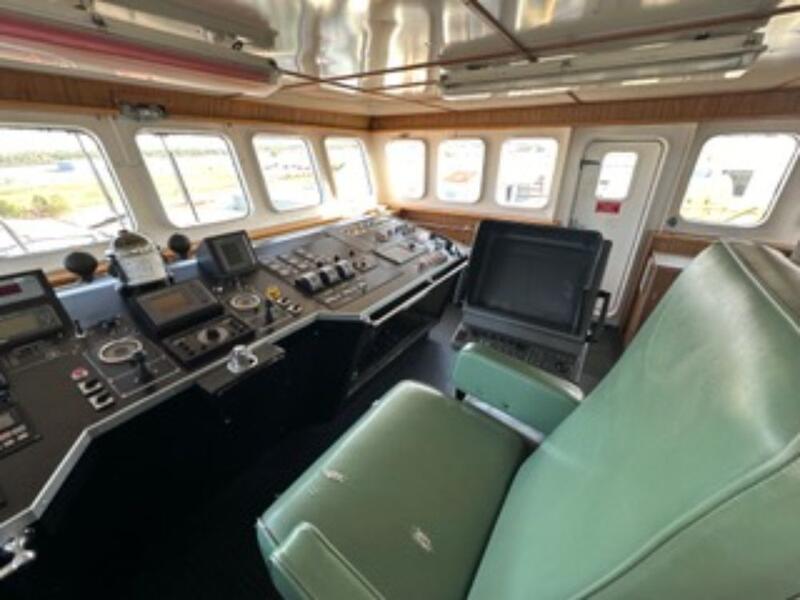

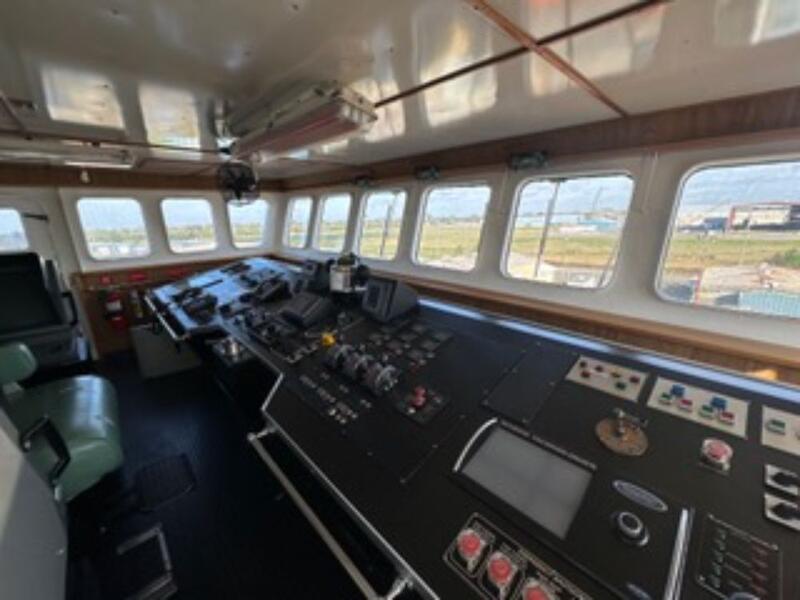

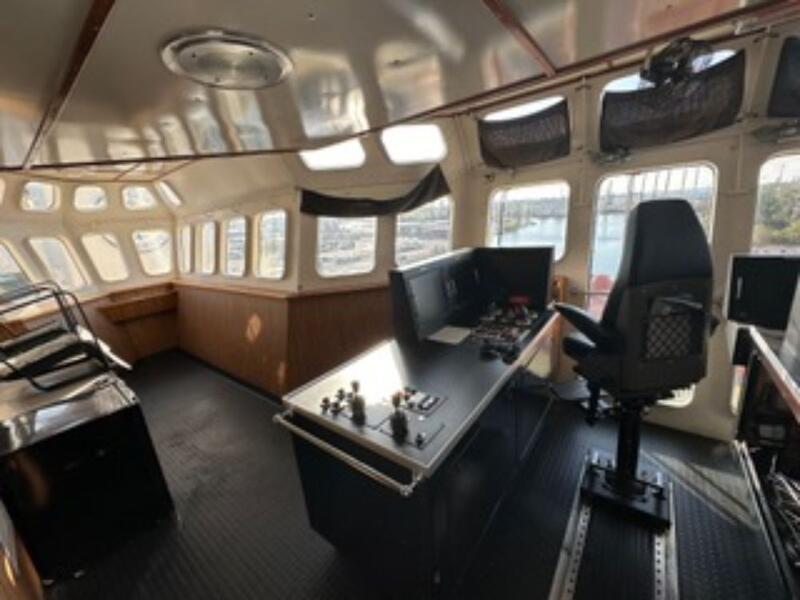

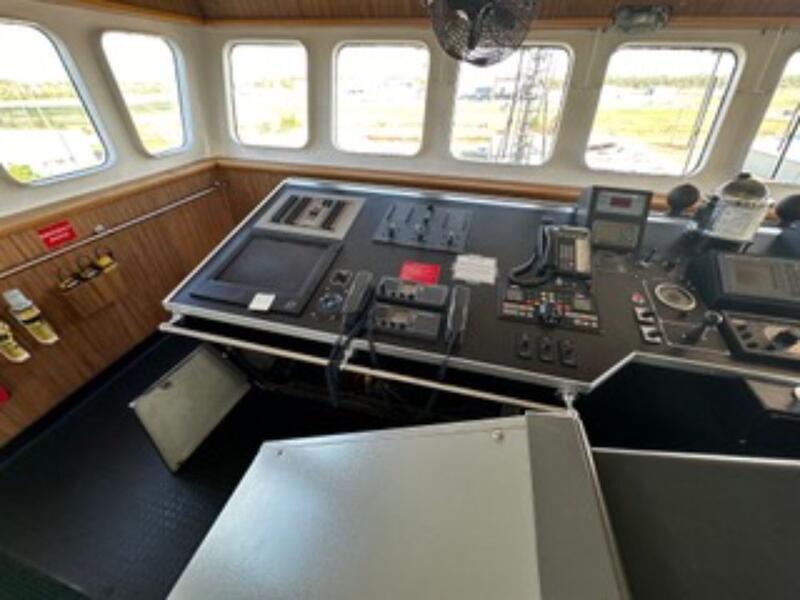

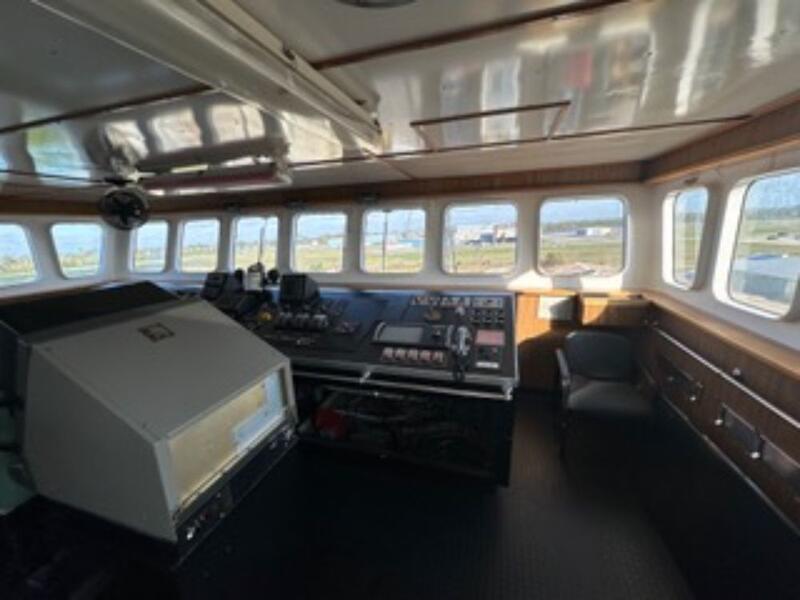

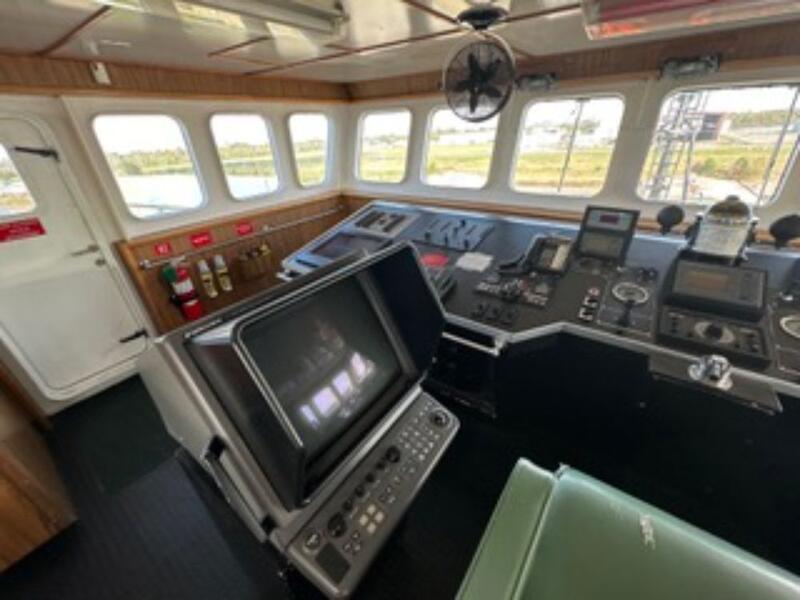

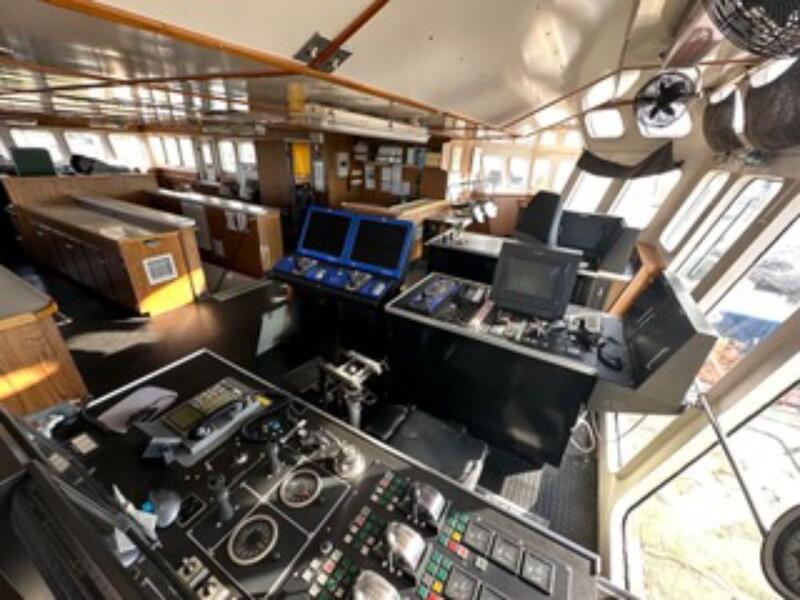

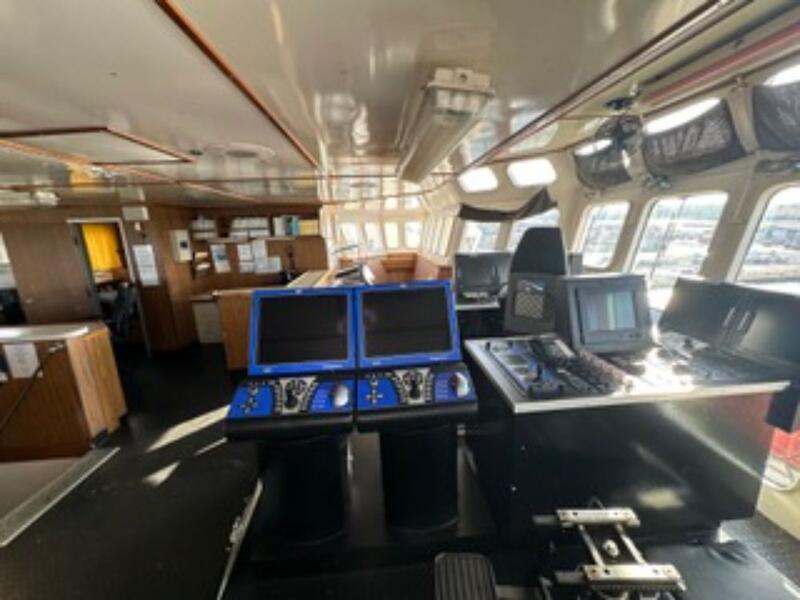

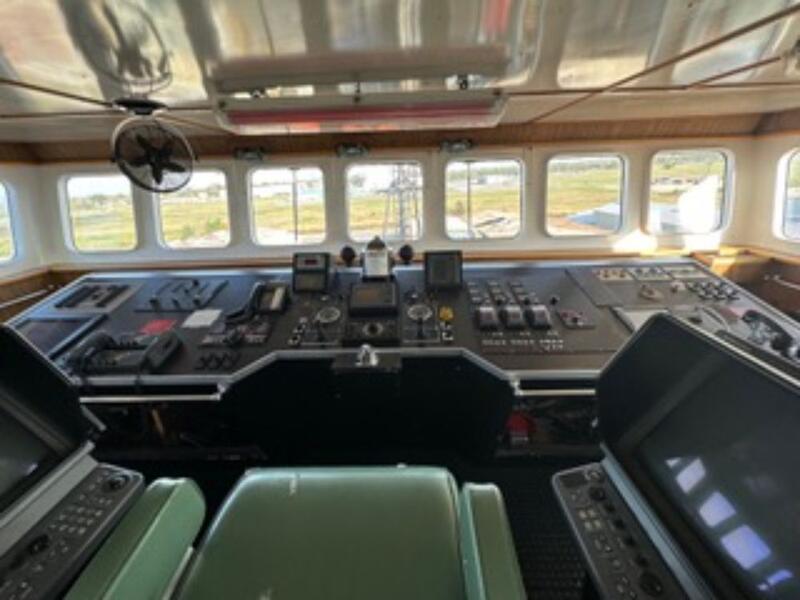

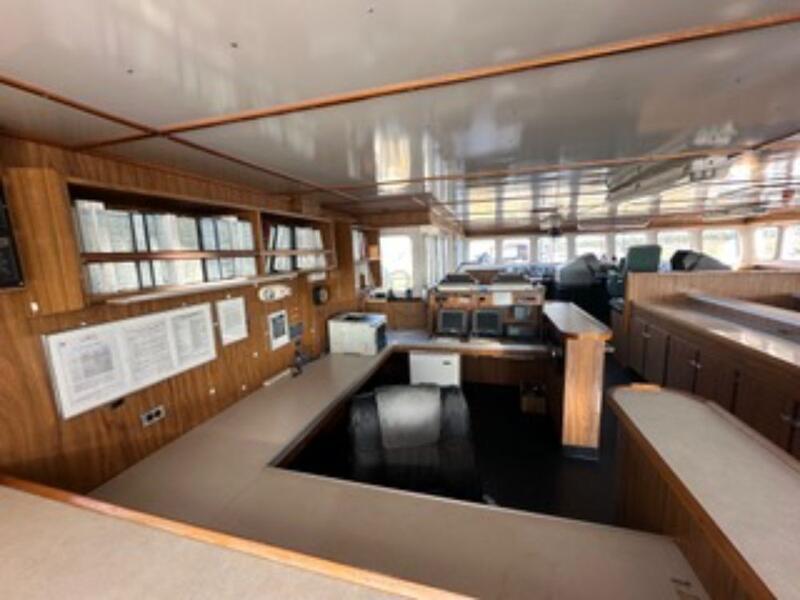

Navigation Equipment
Electronics Package Two (2) Furuno FR-2115 Radars, GMDSS, Iridium Satellite Phone, Marine Technologies
Bridge Mate DP 2, Marine Technologies
Bridge Mate Autopilot, Furuno Color-View
Depth Sounder, Furuno VHF FM-8500 @
Winch Operator Panel, Seven (7) Color
Monitors, JRC NO2-127C Inmarsat-C Telex (GMDSS), SEA 222 Single Sideband Radio with Ringer, JRC NCH-802 Controller MF/HF
Radio, JRC NCR-300A Navtex, Furuno GP- 150 GPS, Furuno FAI50 AIS

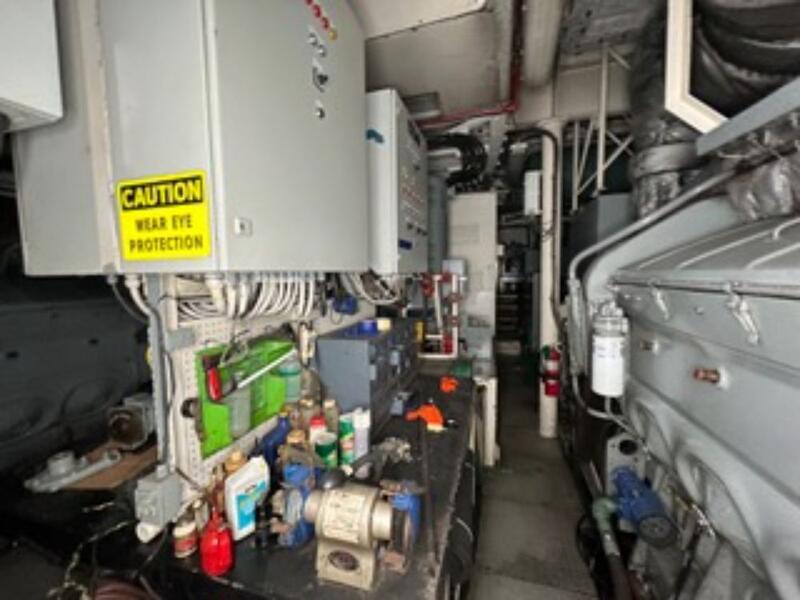

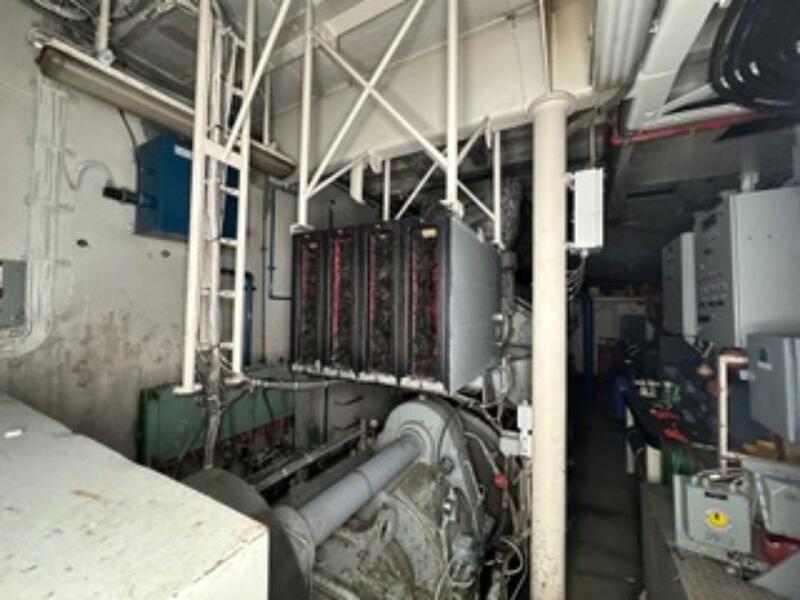

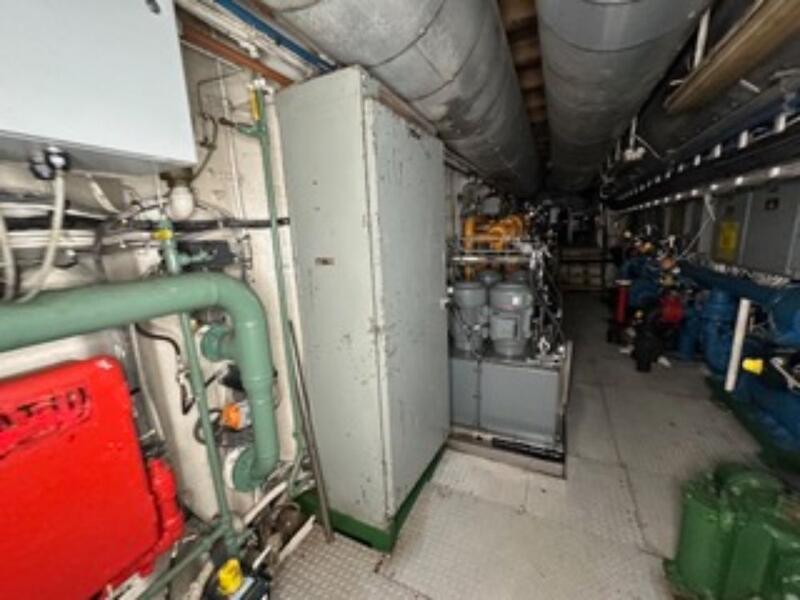

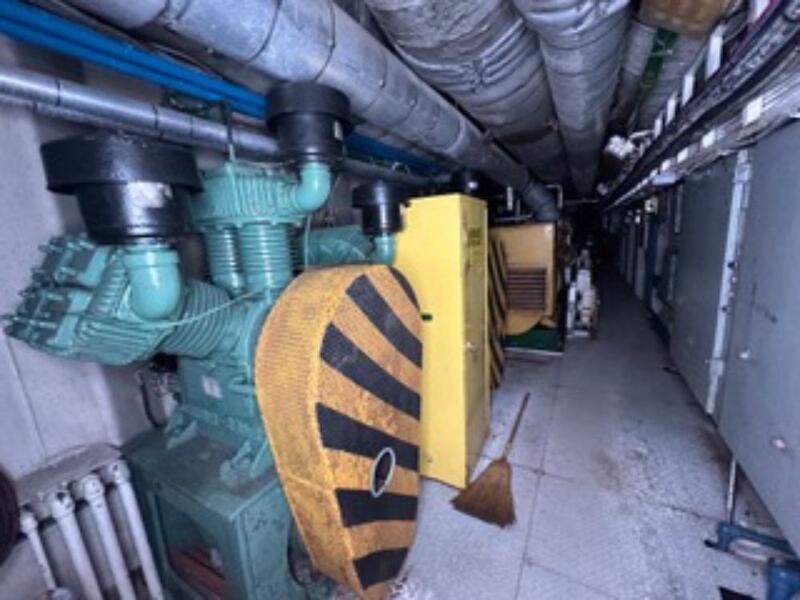

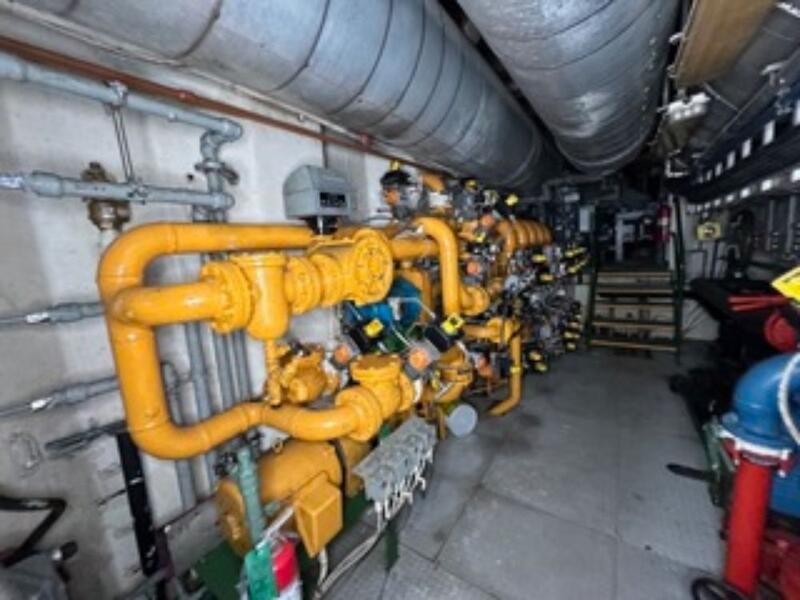

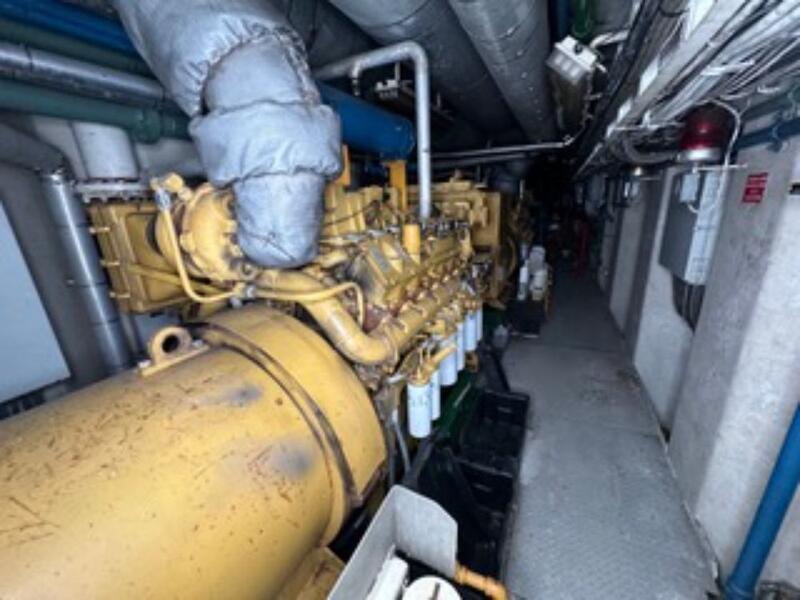

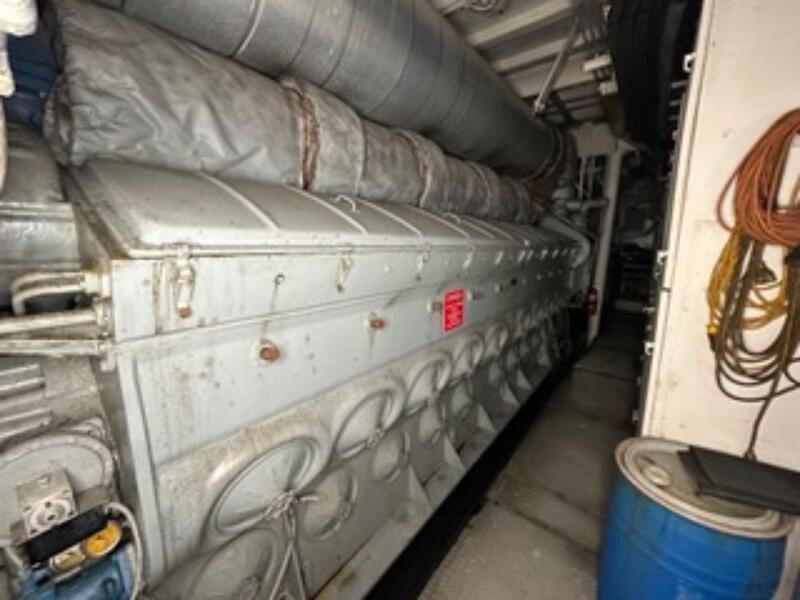

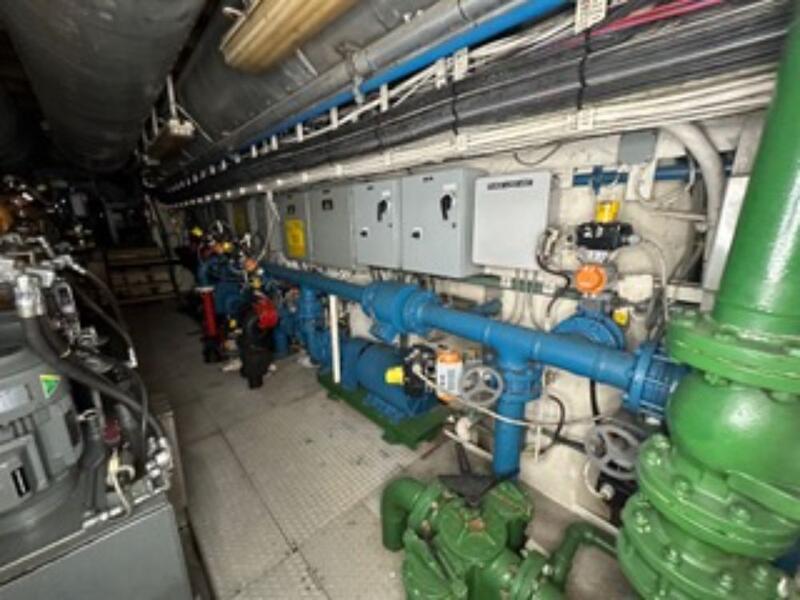

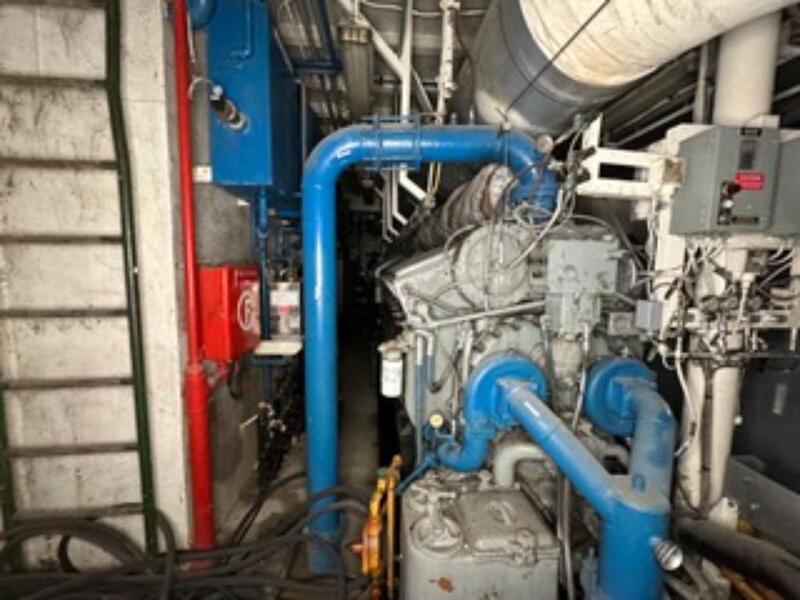

Engine(s)
Total power output (BHP) 10800 bhp

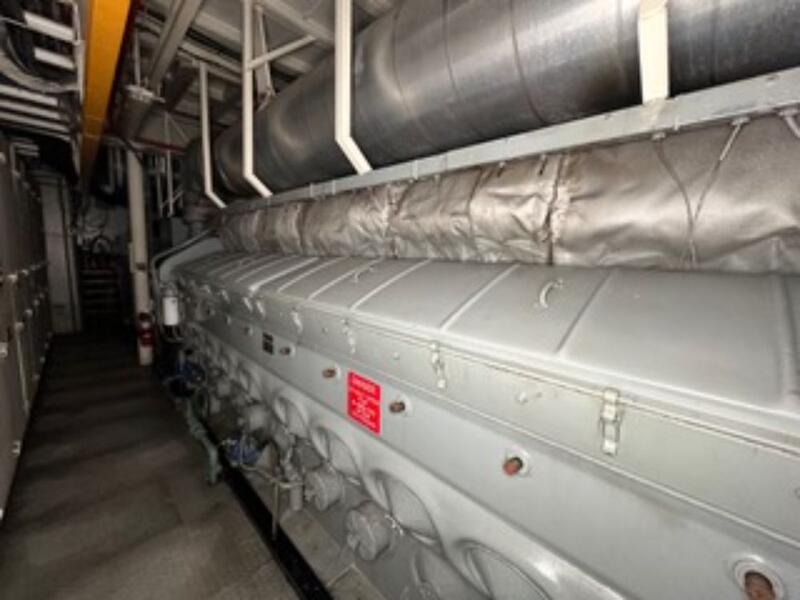

Main Engine(s) (make,type) 3 x EMD (Electro-Motive) 20-645
Main Propulsion System 3 CPP

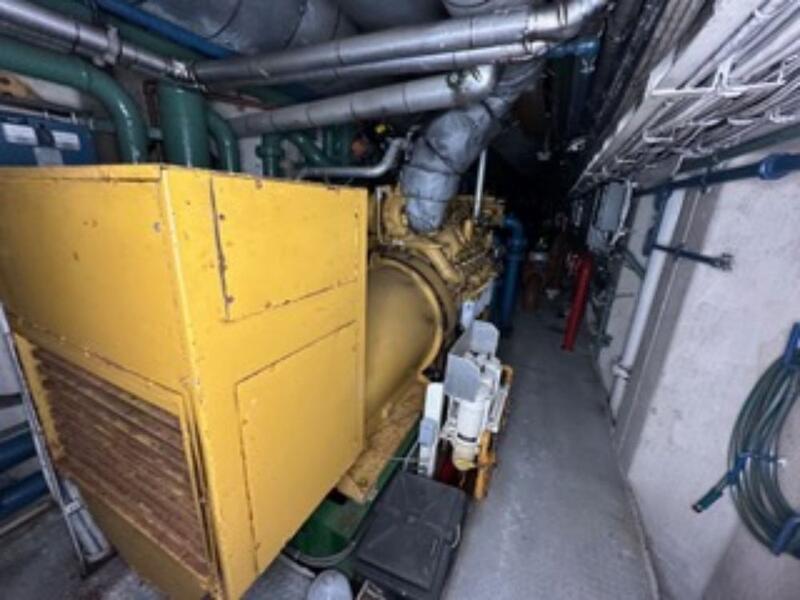

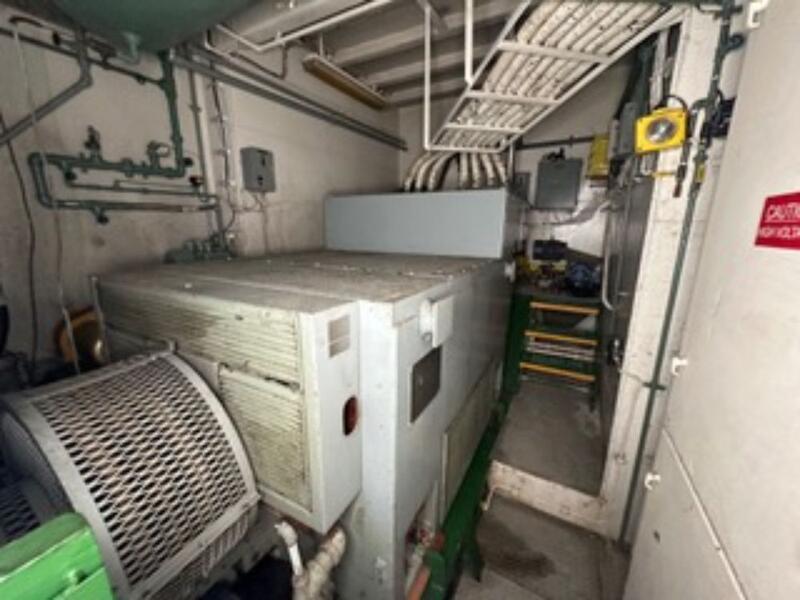

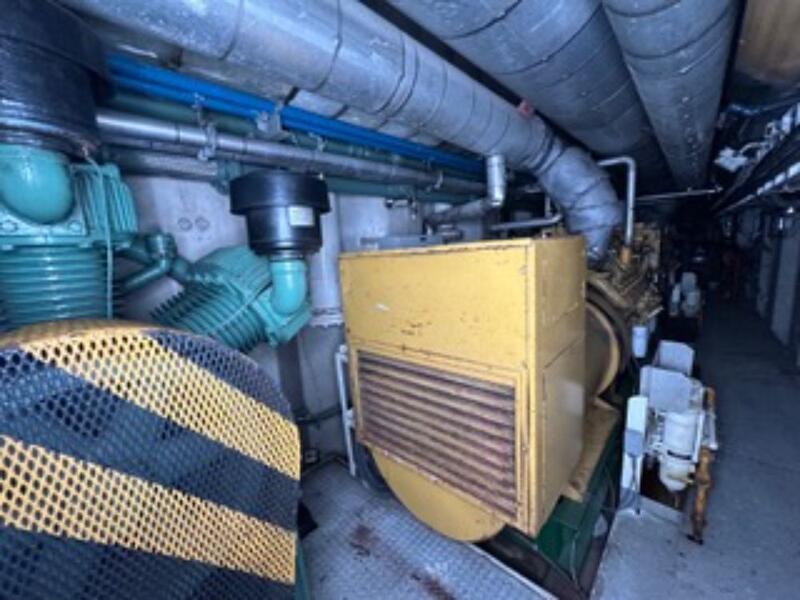

Auxiliary engine(s) 2 X 500 KW
Total Propulsion HP 13,200 HP
Bow Thrusters Two (2) 150TV-D Tunnel
Stern Thrusters One (1) 1,200 HP NASB/Ulstein 360° Jet Azimuthing
Shaft Generators Three (3) x 2,400 HP/1,800 kW
Safety Equipment
Life Rafts Four (4) x 25-Man Life Rafts
Rescue Boat/Craft One (1) x Narwhal SV-400 SOLAS FRC
Certification
Flag UNITED STATES OF AMERICA
Class Society and Notation ABS Towing Vessel OSV, AH, AMS, DPS-2
Disclaimer
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
- DO NOT REPRODUCE, CIRCULATE OR ADVERTISE COMPLETELY OR PARTIALLY ANY OF OUR LISTINGS AND/OR CIRCULATIONS WITHOUT EXPRESSED WRITTEN AUTHORISATION -
Location Map
Note: Indicated location is approximate general area only.
