| Blue Sea Brokers | |
| Nigrán, Pontevedra, 36350, Spain | |
| Telephone: | Reveal Telephone Number |
| View All Blue Sea Brokers Listings | |
| Status: | Available |
| Location: |
WEST MED Spain [View Map] |
| Reference: | DO0338 |
Description

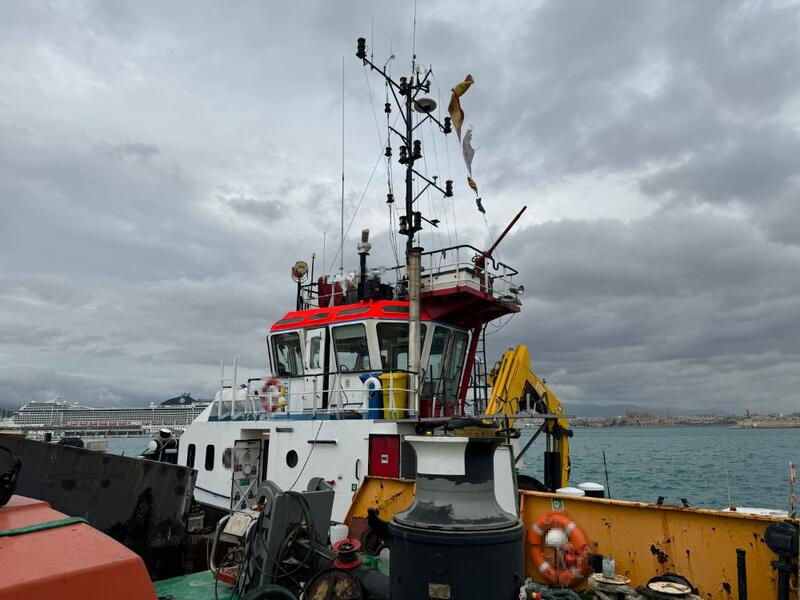

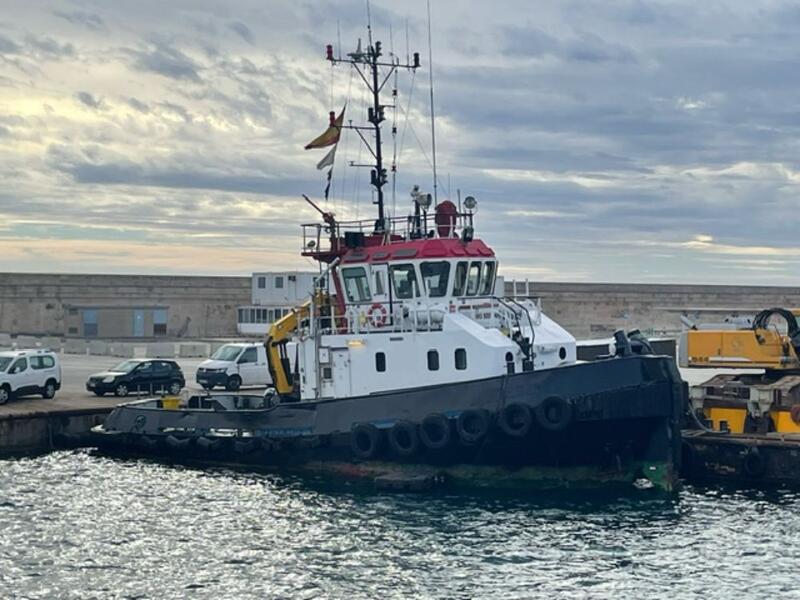

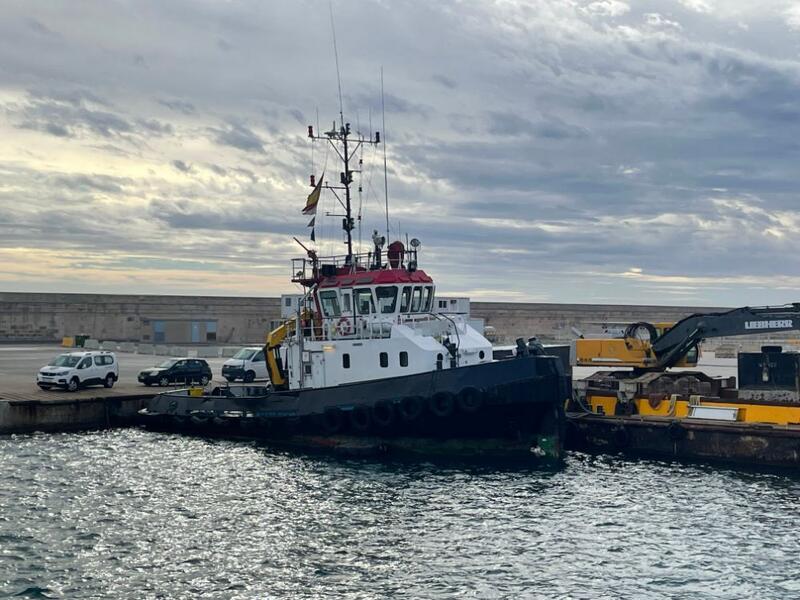

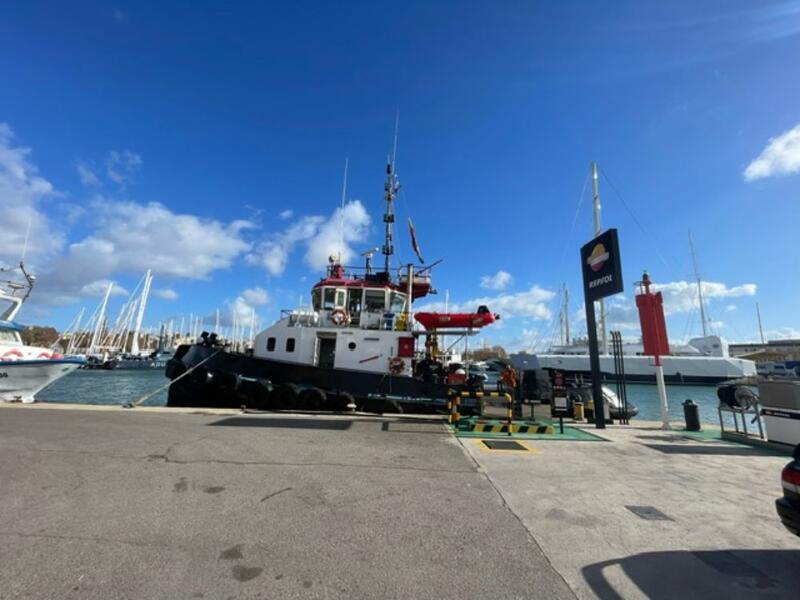

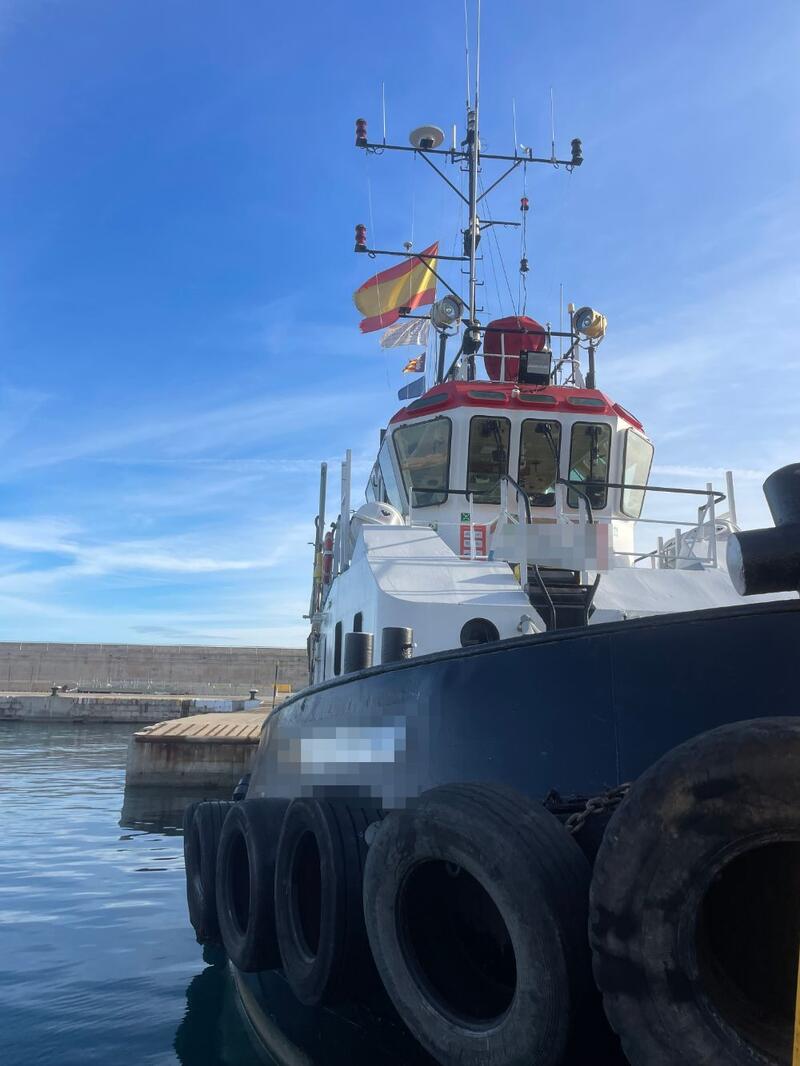

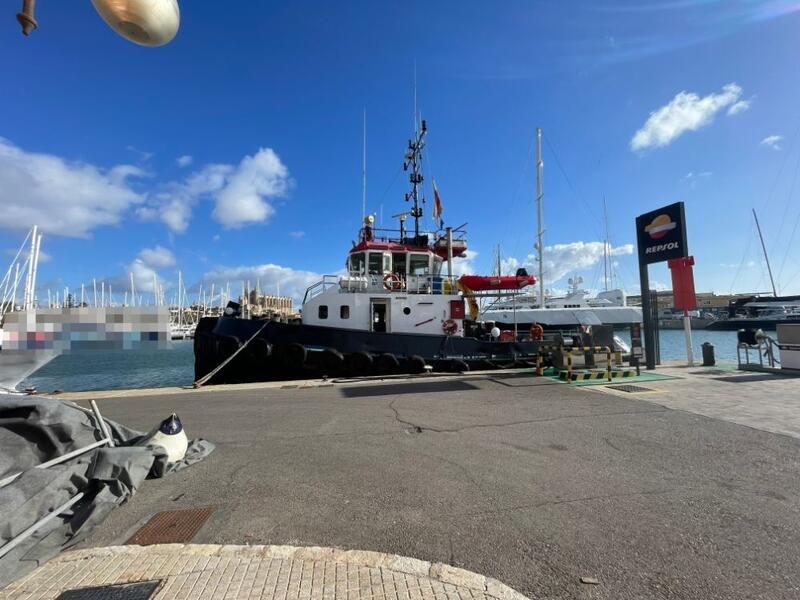

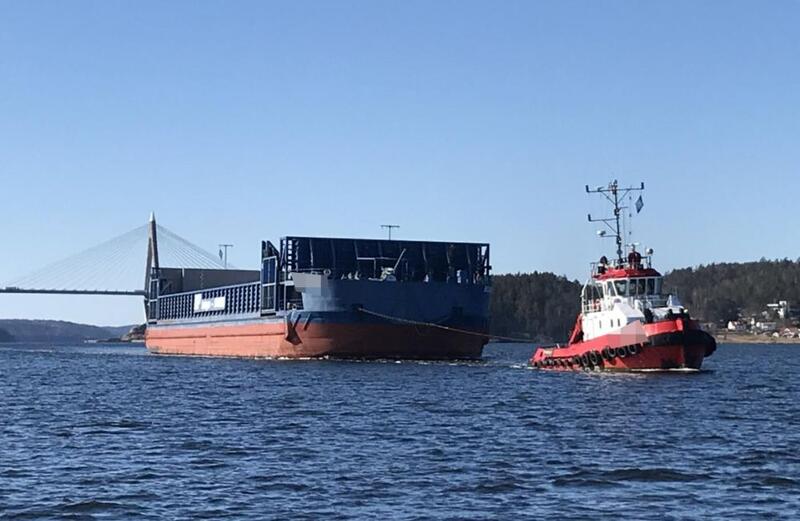

DO0338 Tug - Twin Screw For Charter
- FROM DIRECT OWNERS -
Speed and consumption:10 knots @ 4 m cub/ 24h
Fuel grade: MGO
Specifications
| Vessel type: | DO0338 Tug - Twin Screw For Charter |
| Builder: | NETHERLANDS |
| Class Society: | DNV |
| Class Notation: | 100 A5 Tug |
| No. of engines: | 2 |
| Engine model: | Cummins KTA38 |
| Engine power: | 2090 |
| Cruising Speed: | 10 Knots |
| Length over all: | 22.50m |
| Beam: | 7.25m |
| Maximum draft: | 3.20m |
| Hull material: | Steel |
| Fuel capacity: | 38 Cubic Metres |

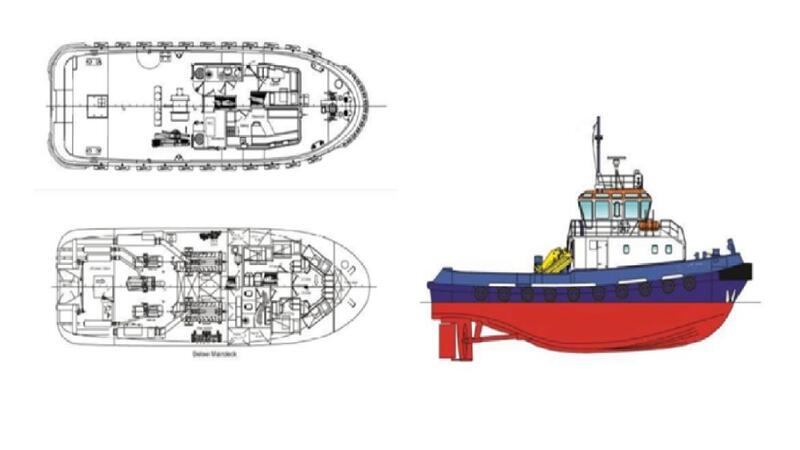

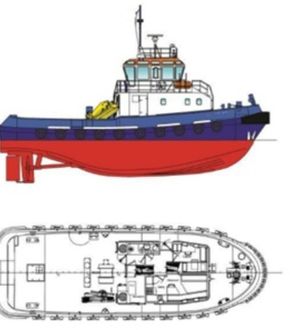

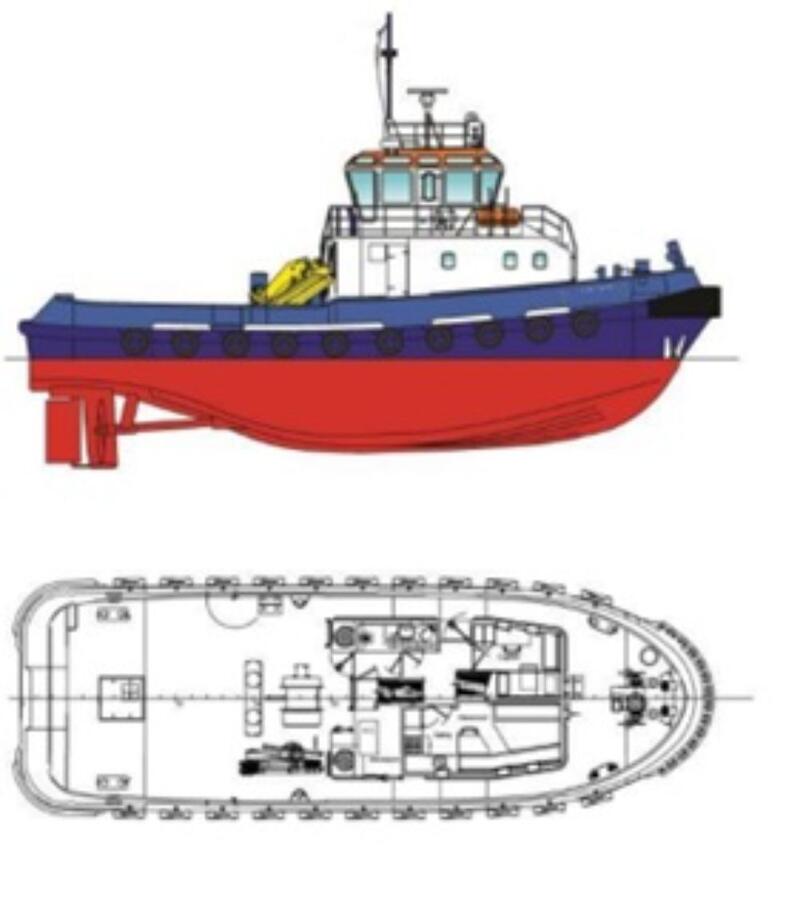

Construction
Built (year and place) 0,NETHERLANDS
Hull material Steel
Length Overall (m) 22.50 m
Breadth (m) 7.25 m
Depth (m) 3.75 m
Draft (m) 3.20 m
NT (tons) 34 tons
GT (tons) 136 tons

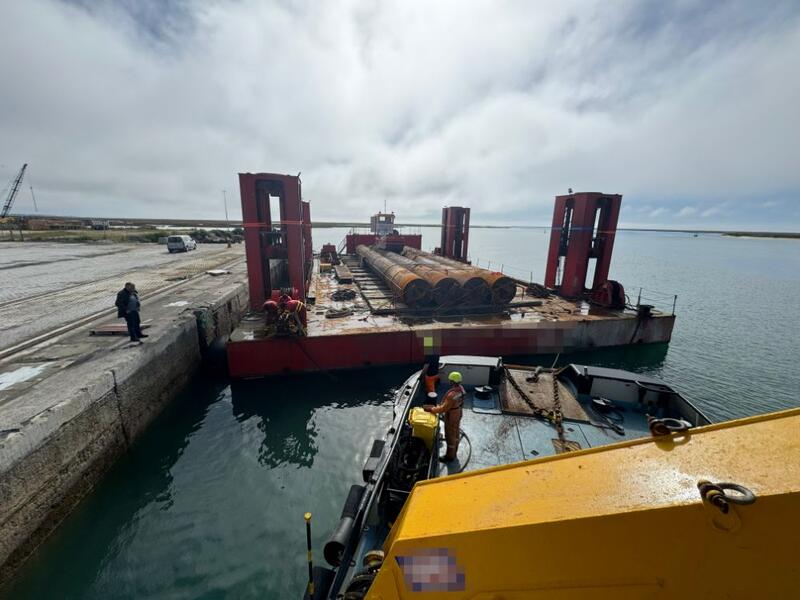

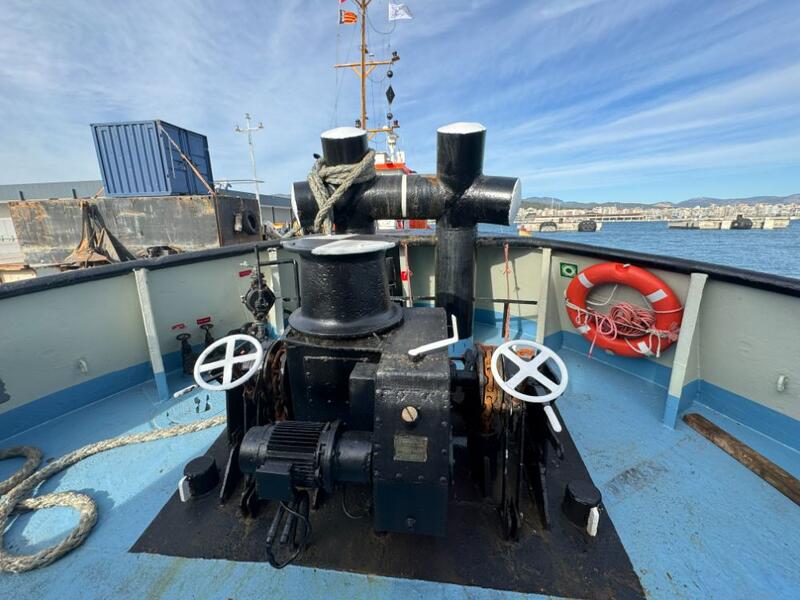

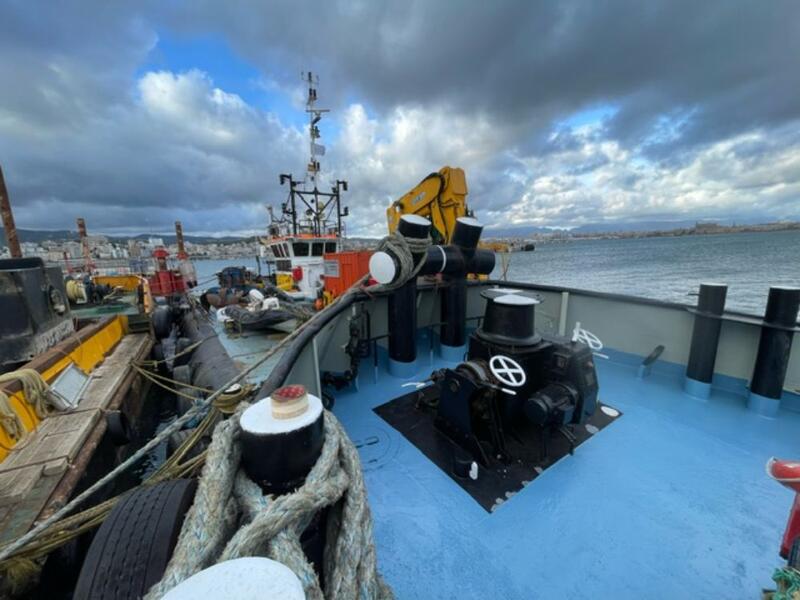

100 tn tow winch, 500 meters of 36 mm steel wire.
25 tn tow hook.

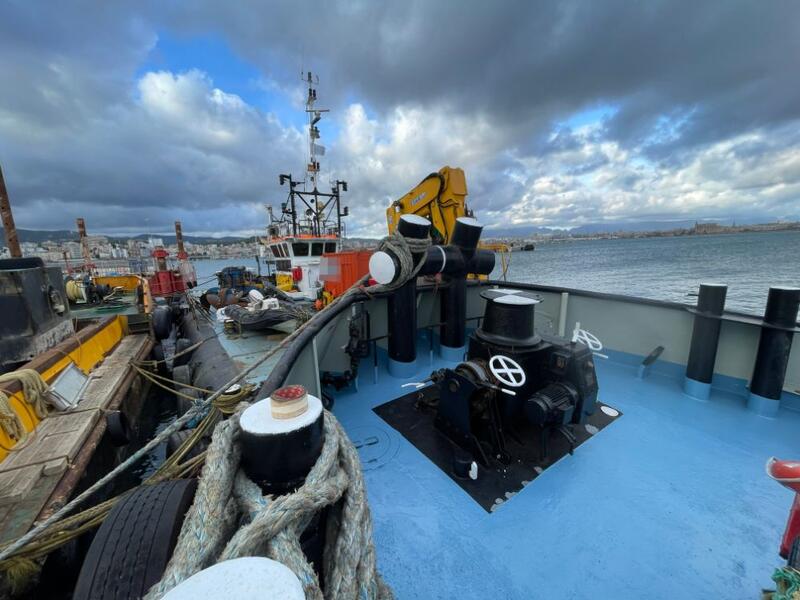

Tow winch:G M110 BT North Sea Winch
Tow wire: 500m of Ø 36mm steel.
A@ roller: Yes.
Towing pins:Y es, manually operated.
Continuous BP power of 26.52 t.
Max BP: 26.63 M/Tons
Deck extension: 24 m2
Equipment

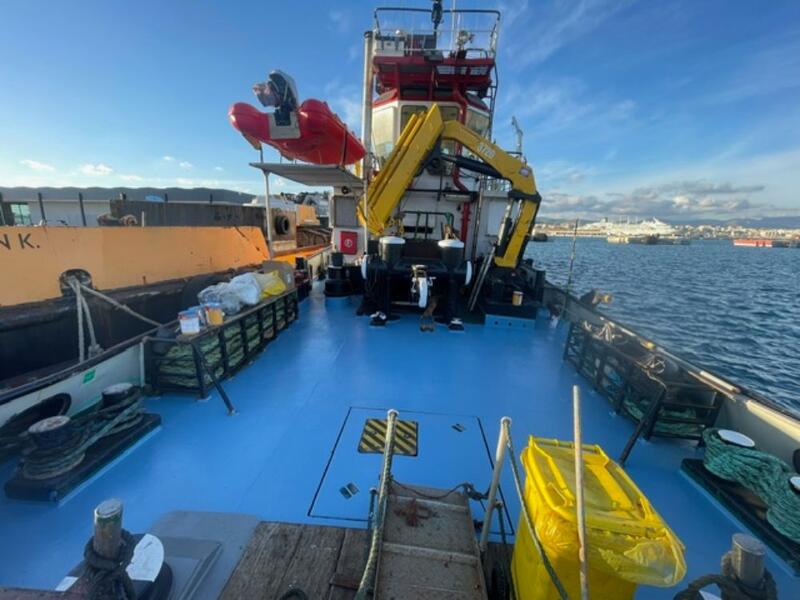

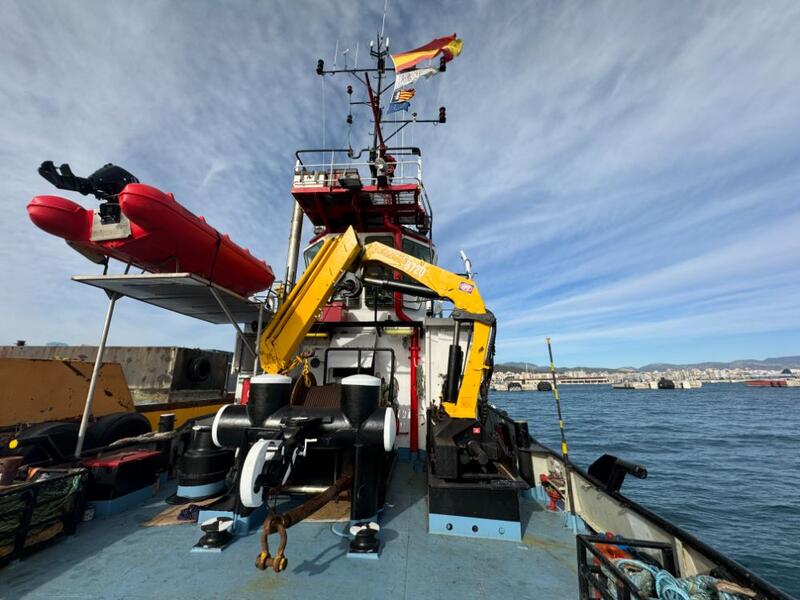

HMF 3720 deck crane, 3.7 tons @ 10 meters
Deck crane: HEILA 3720, 3.7ts @ 10 m
Auxiliary equipment: Tow hook, FIFI monitor.

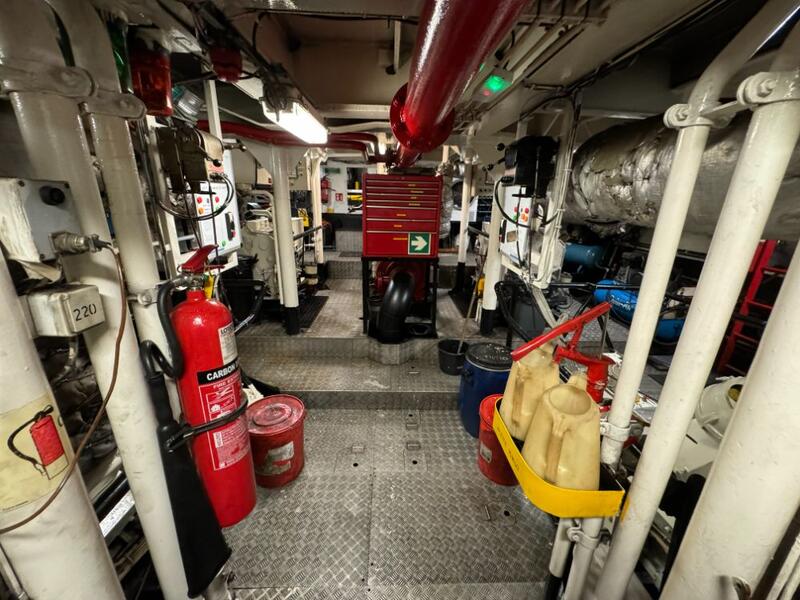

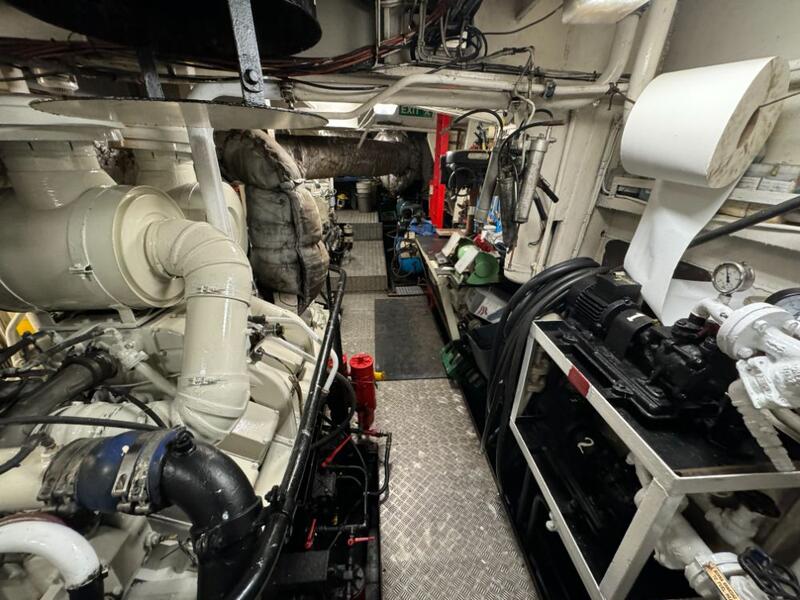

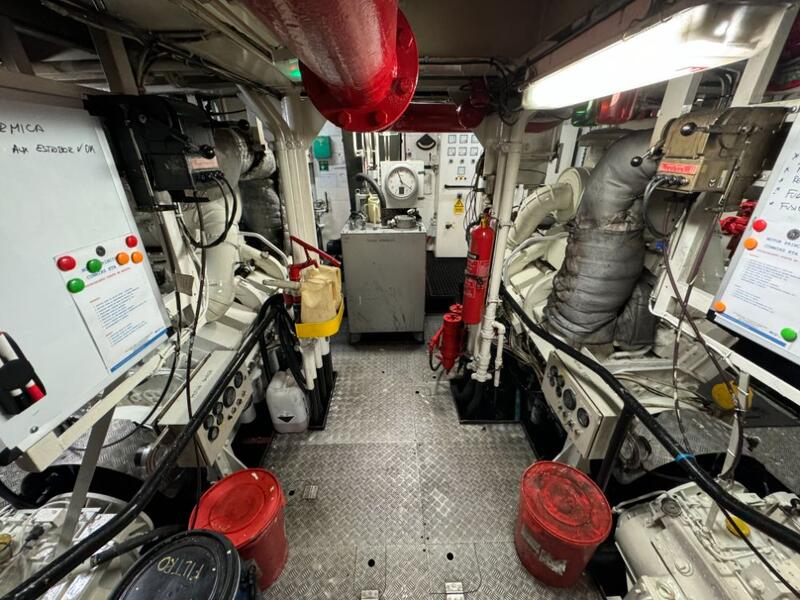

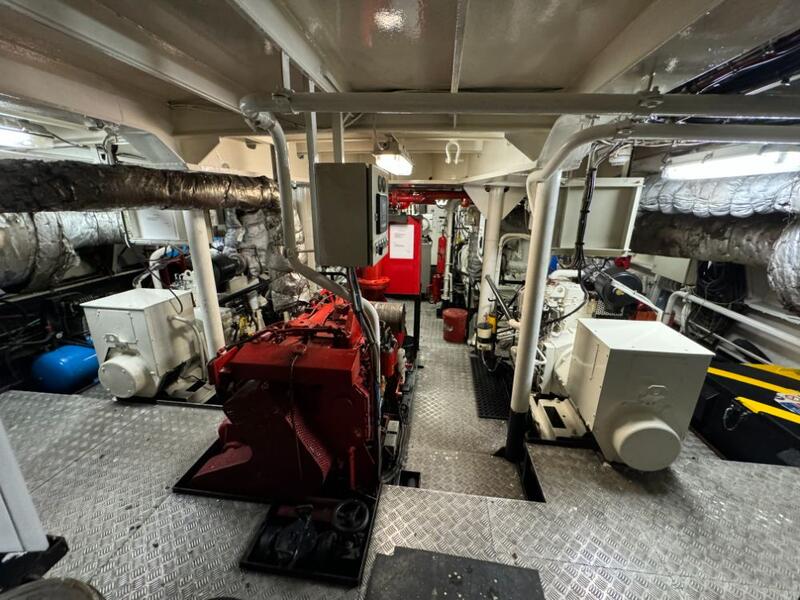

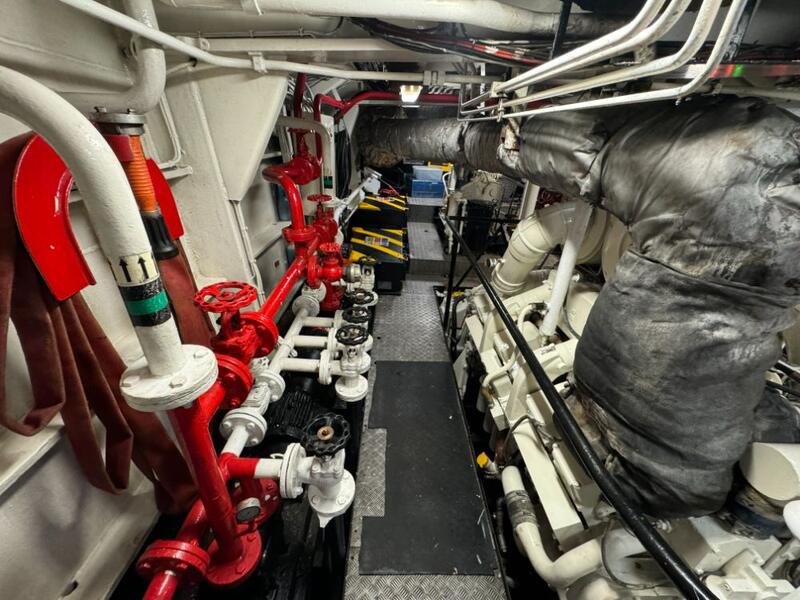

Engine(s)
Total power output (BHP) 2090 bhp
Main Engine(s) (make,type) 2 x Cummins KTA38
Main Propulsion System 2 x Fixed propellers in nozzles
Auxiliary engine(s) 2 KW , Cummins 4BT-3.9
Speed cruising 10 knots
Certification
Flag SPAIN
Class Society and Notation DNV 100 A5 Tug
Disclaimer
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
- DO NOT REPRODUCE, CIRCULATE OR ADVERTISE COMPLETELY OR PARTIALLY ANY OF OUR LISTINGS AND/OR CIRCULATIONS WITHOUT EXPRESSED WRITTEN AUTHORISATION -
Location Map
Note: Indicated location is approximate general area only.
