Description

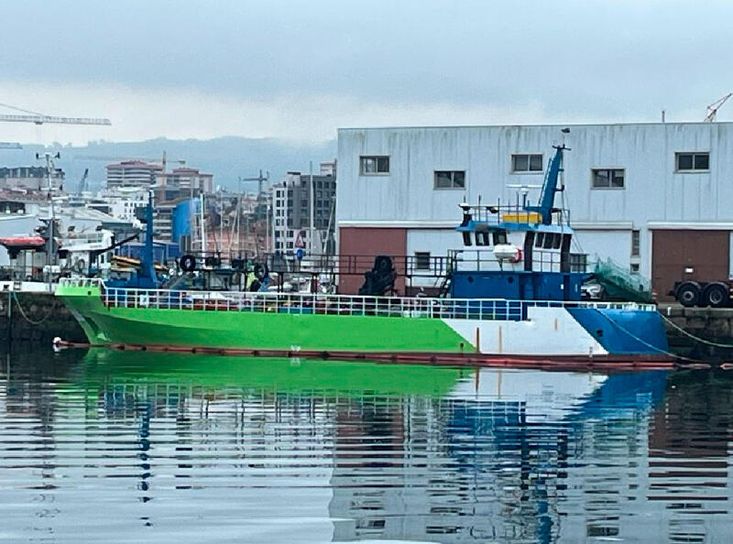

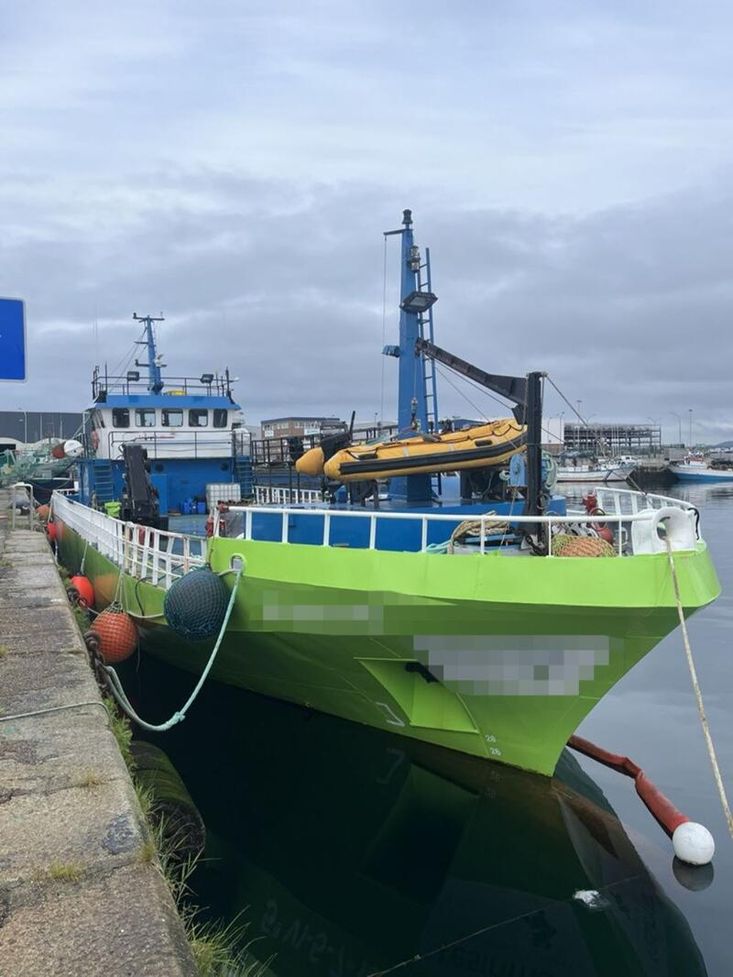

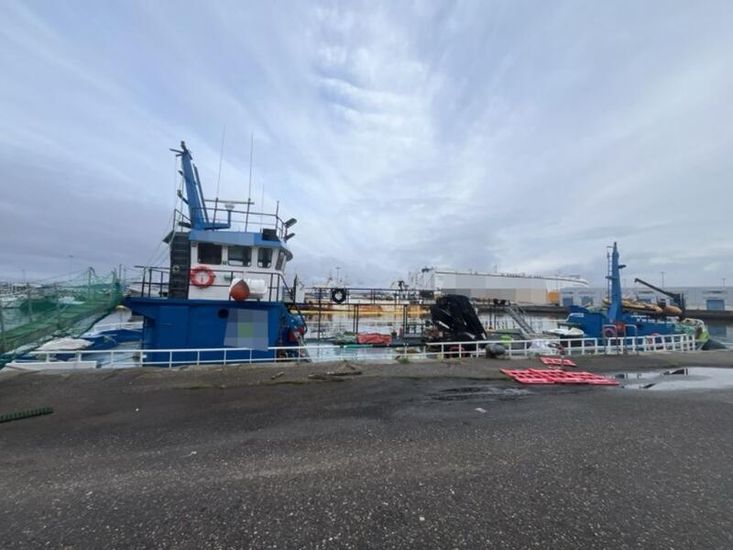

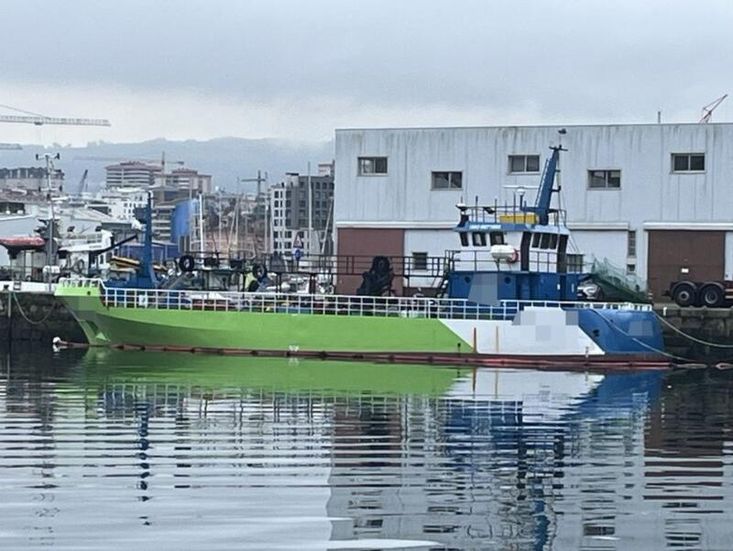

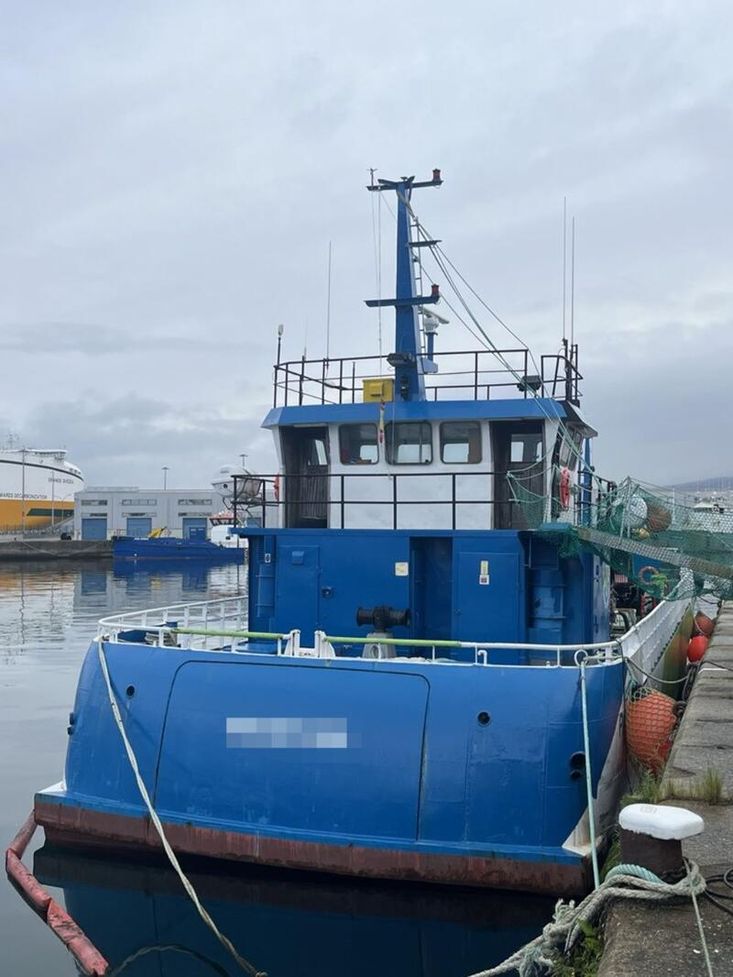

DO0409 Workboat For Sale
- FROM DIRECT OWNERS -

Hull built in 2014. Firstly launched in 2021.
Steel hull made of high resistance AH-36, certified by Germanischer Lloyd.

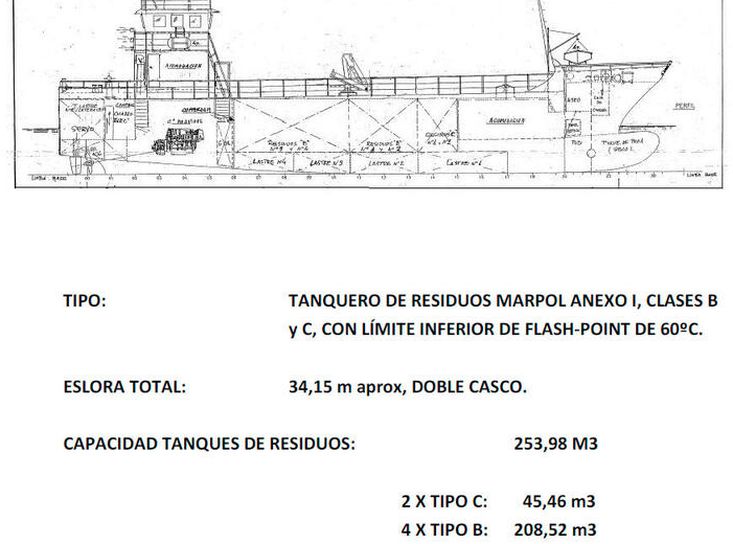

Port Service Vessel (MARPOL Waste Collection) Group III, Class S, Over 100 GRT, List 5

Capacities
Fuel capacity……………………………………….. 17.96 m3
Fresh water capacity….………………………………………. 0.15 m3
Marpol Annex I waste capacity……………………. 253.99 m³
- Type C Waste Tank, No. 1 Port 22.732 m³
- Type C Waste Tank, No. 2 Starboard 22.732 m³
- Type B Waste Tank, No. 1 Port 38.471 m³
- Type B Waste Tank, No. 2 Port 38.471 m³
- Type B Waste Tank, No. 3 Port 65.791 m³
- Type B Waste Tank, No. 4 Port 65.791 m³
Ballast Tank Capacity……………………………….. 81.22 m³

Specifications

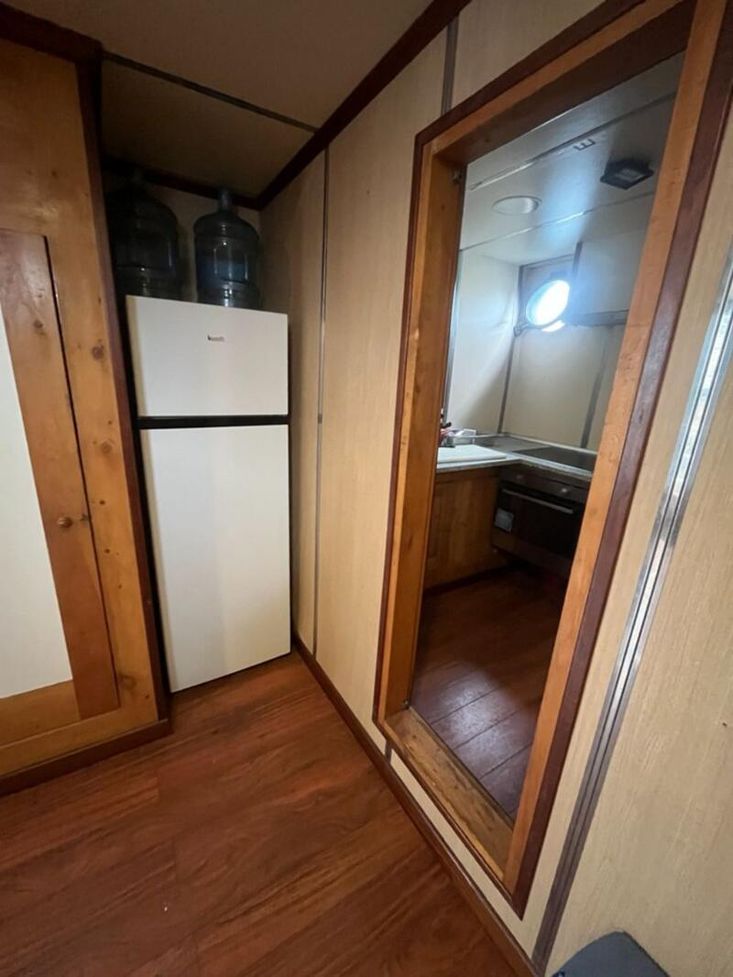

Accommodation

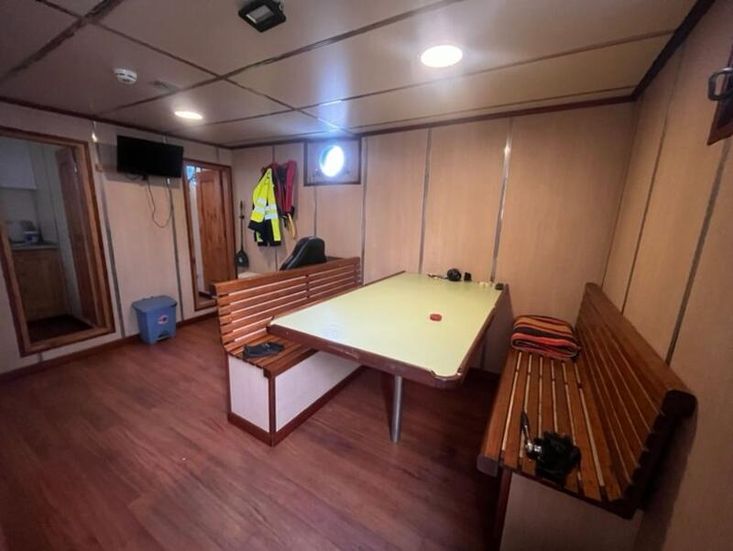

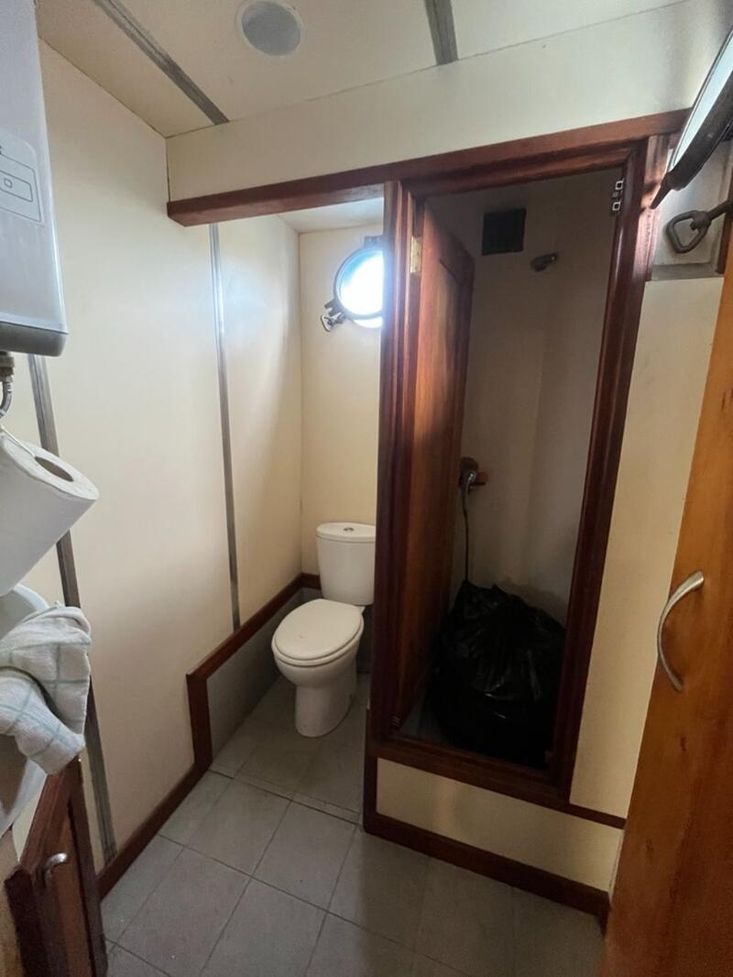

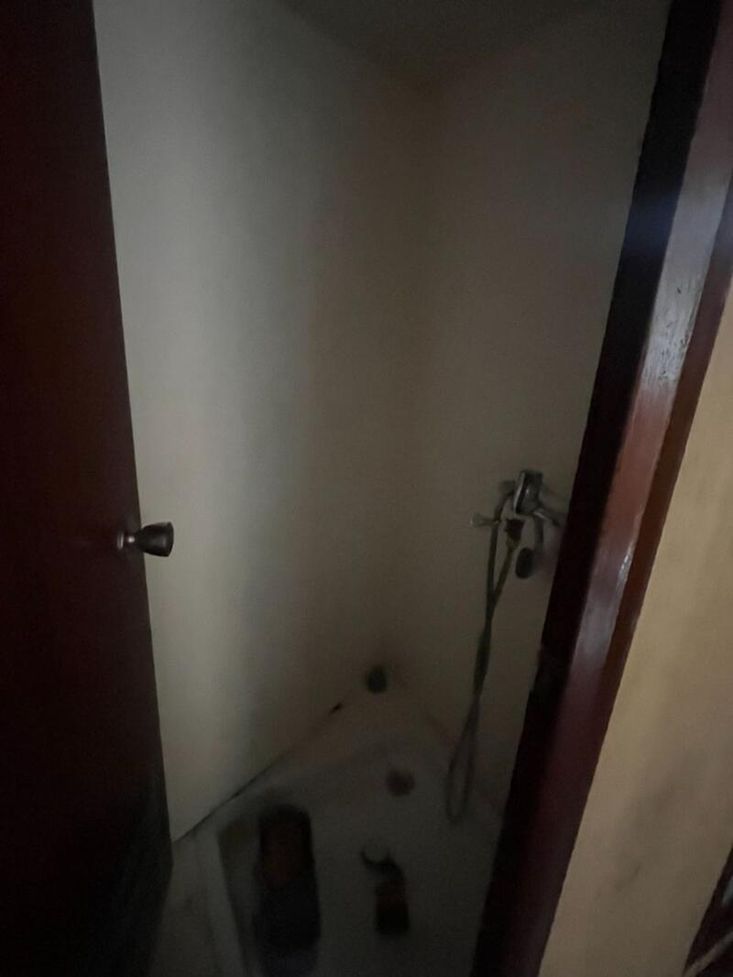

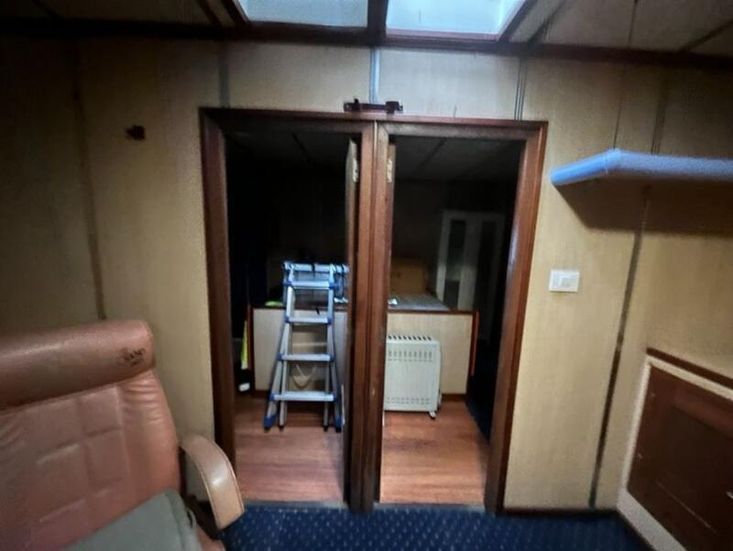

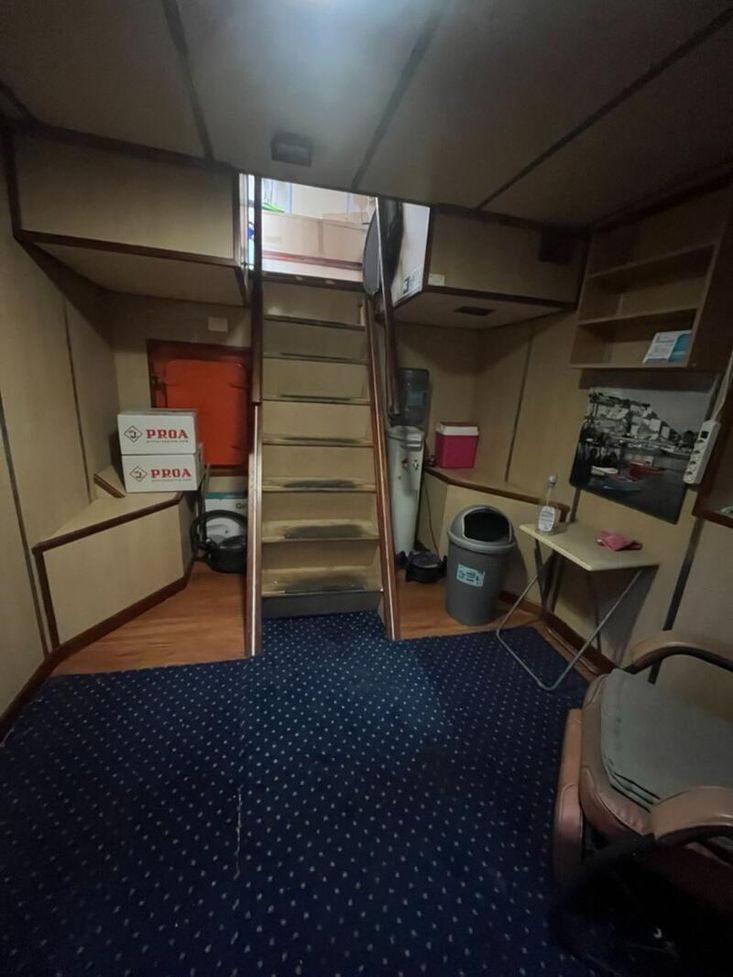

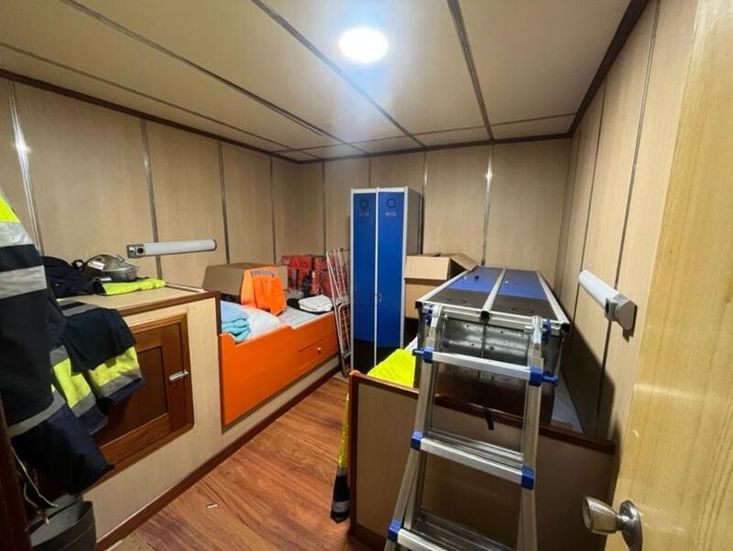

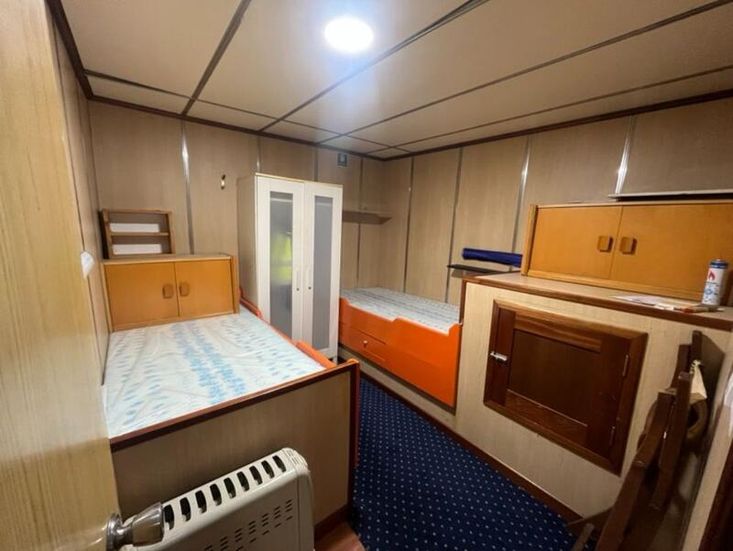

4 berths in 2 cabins

Construction

Built (year and place) 2018,SPAIN
Hull material Steel
Length Overall (m) 31.10 m
Length between perp. (m) 30.35 m
Breadth (m) 8.20 m
Depth (m) 4.20 m
Draft (m) 2.20 m
NT (tons) 68 tons
GT (tons) 228 tons

Deck load 253,98 tons
Deck area 35 m2

Maximum displacement……………………………………….. 392,264 Tons
Deadweight…………………………………………………………….. 267,014 Tons
Total tonnage (1969)……....……....................................... 228 GT
National tonnage……….....……........................................ 219.7 TRB
82.7 TRN

Equipment

1 x Hydraulic Crane 26.8 tons

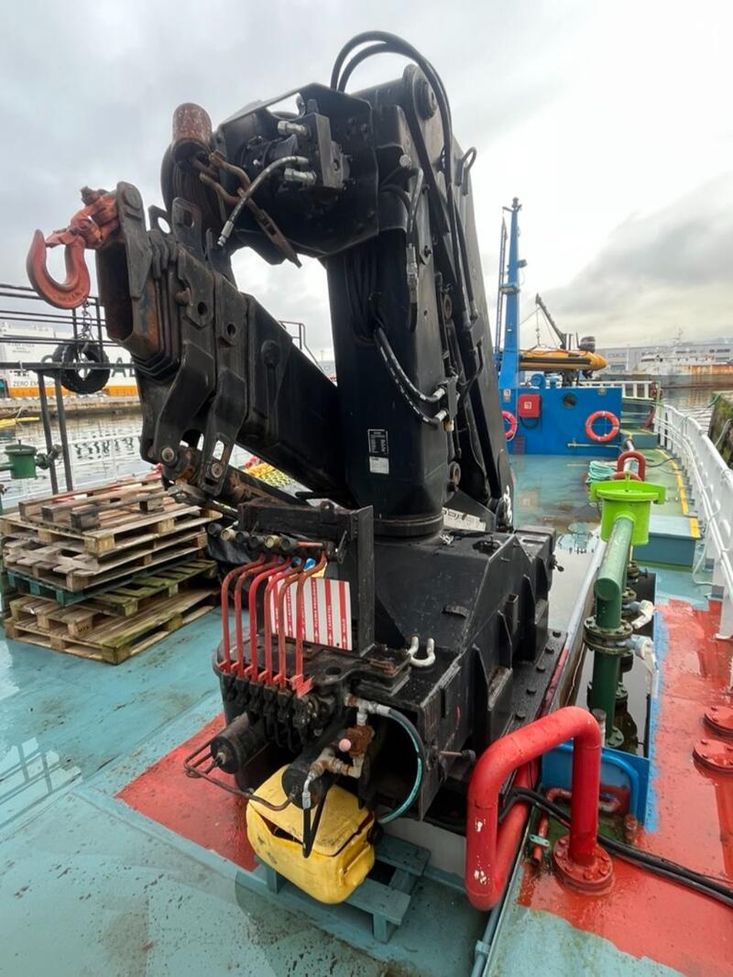

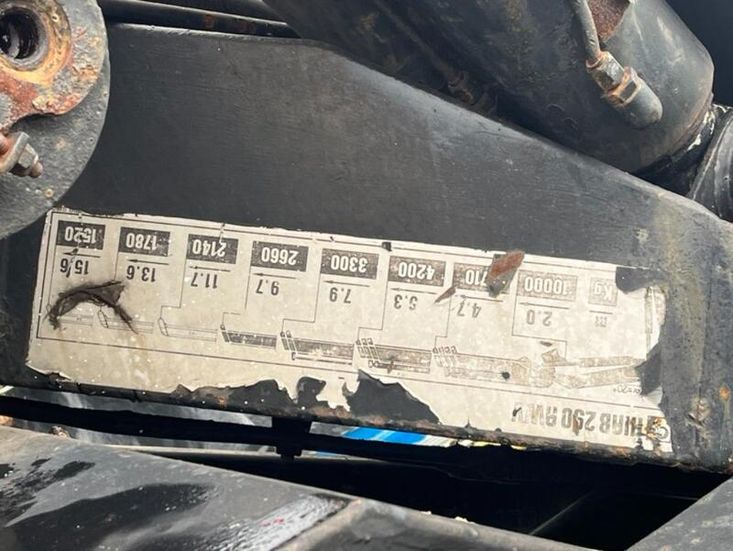

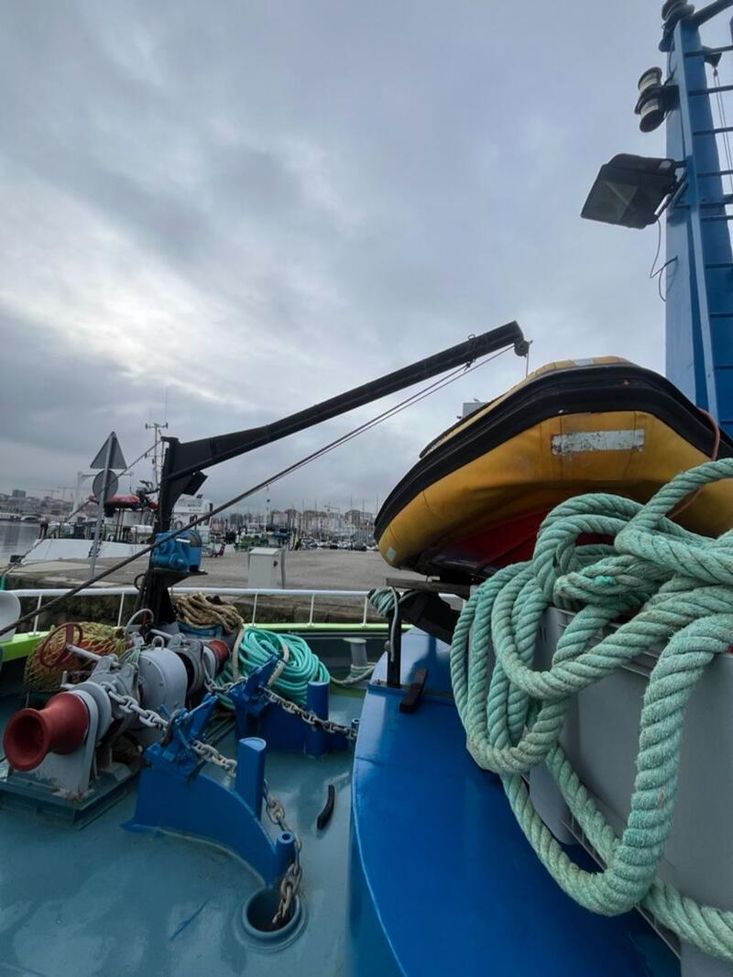

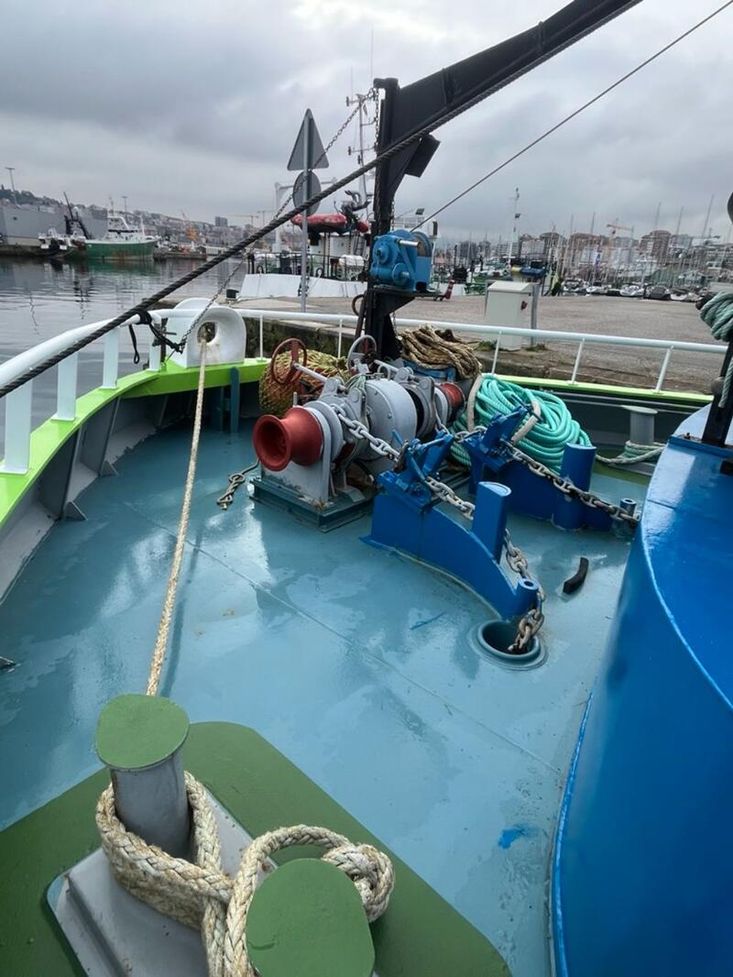

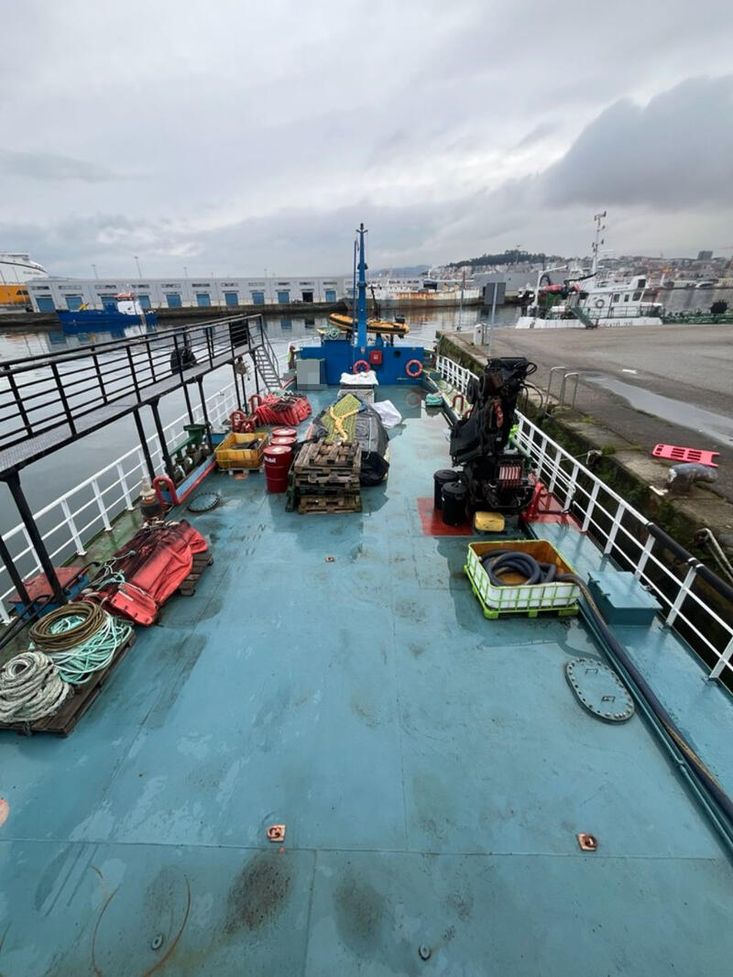

The deck equipment consists of a crane for launching the rescue boat (Duarry SR-5) forward, a double-drum electro-hydraulic windlass for two 300 kg anchors, each 100 meters long. A winch is located aft. Amidships, to starboard, is a HIAB 290 AW deck crane with a 15.60-meter reach and a 1.52-ton lifting capacity.

Some of this equipment is second-hand but is reported to be in good working condition.

2 reserve gearboxes Twin Disk MGN-80, 2.52:1.

MARPOL waste collection equipment: two Alconza vertical electric pumps, model DNV 132-SB-2, 6.6 kW each, which draw from any of the waste tank sumps and discharge to either of the two discharge valves located on deck, one on each side, to the MARPOL collection point via hoses.

For general seawater services (ballast, bilge pumping, washing, firefighting), there are two Azcue electric pumps, model CA/2B1, 40 m³/hour at 20 m head. For fuel transfer, an Azcue brand electric gear pump, model B-TIN 4502, of 5 m3/h at 40 m.c.a. is used.

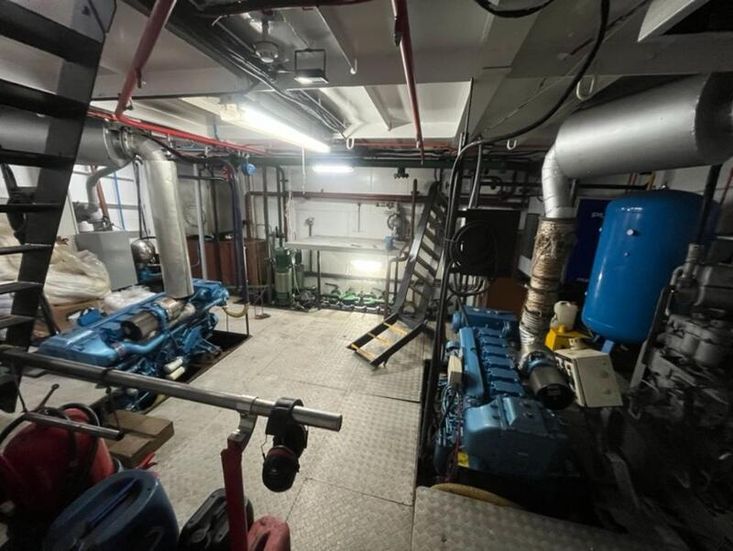

Engine(s)

Total power output (BHP) 800 bhp

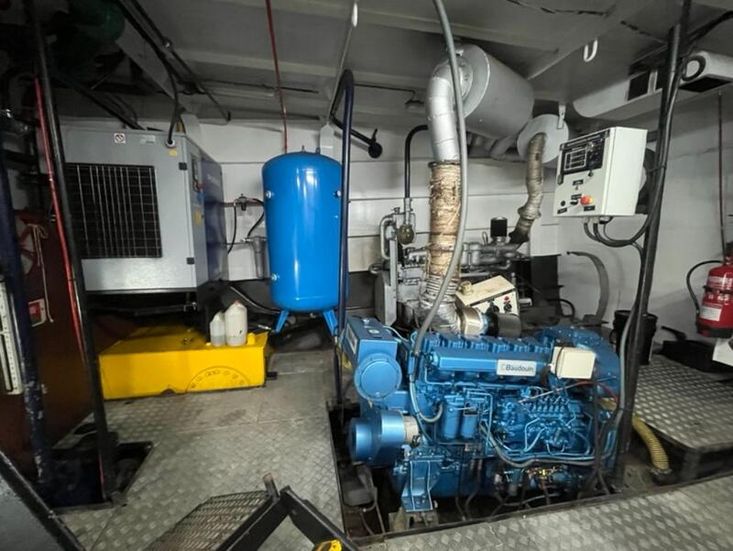

Main Engine(s) (make,type) 2 x Baudouin 6W126 M
Main Propulsion System Twin Screw
Auxiliary engine(s) 1 X 103 KW , Piller,1 X 117 KW ,
Speed maximum 10 knots

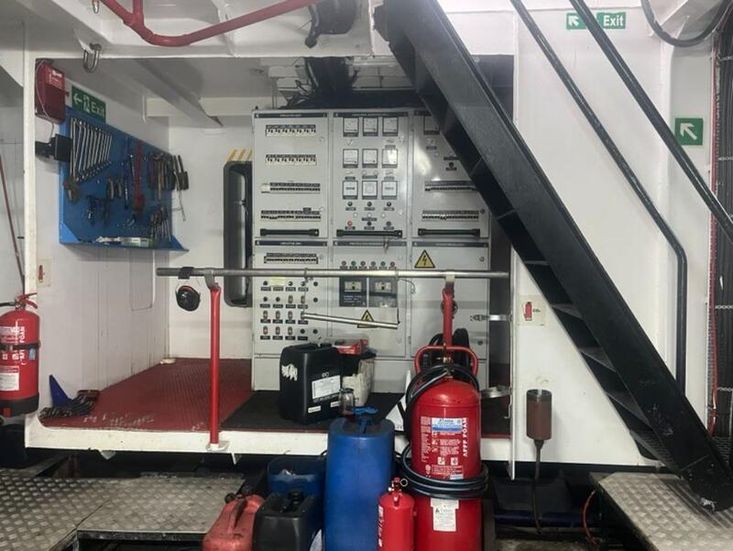

Electrical Generator Power…………………………. 2 x 117 KVA

Twin Screw – 2 x 3 blade fixed pitch propellers
2 secondary auxiliary engines: Piller, 117 KVA, 400 V at 50 Hz, driven by MAN diesel engines, 2566 ML, 103 kW at 1,500 rpm.
