Description

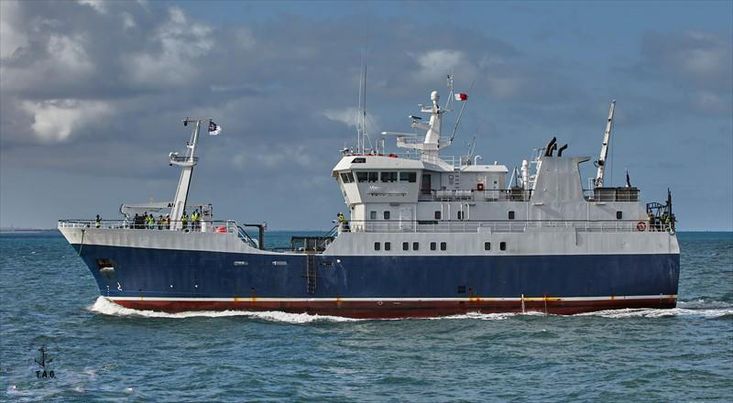

The vessel is a fully welded steel carvel built hull type fishing vessel, with two decks, a raked stem, transom stern, seven transverse watertight bulkheads and two masts.

The superstructure is fitted aft of amidships, there is an closed whaleback on the foredeck, one refrigerated hold below the main deck, a bait hold, a fish processing factory, three (3) blast freezers and the engine room is aft below the superstructure.

The vessel was purchased in 2012 in Norway where the vessel had been laid up for a period of time.

The vessel was dry docked in Norway and steel repairs were carried out within the ice belt area on the hull, the hull was painted, some items of electronic equipment were replaced, the flag was changed and the Class Renewal surveys were carried out. The main engine and auxiliary engines were overhauled and all pumps in the engine room were stripped and inspected.

The vessel sailed to Mauritius where the fishing gear was loaded and modifications were carried out in the factory to suit their fishing requirements.

Built: 1994 Brattvaag Skipsverft A/S, Norway
Registered length: 44.87 metres
Breadth (moulded): 12.00 metres
Depth (moulded amidships): 5.60 metres
GRT: 1362 tonnes
NRT: 408 tonnes
Lightship: 934 tonnes
Deadweight: 310 tonnes
Tank capacities
Fuel ± 275.10 tonnes
Fresh 39.20 tonnes
Miscellaneous 36.51 tonnes
Anti-roll tank 26.45 tonnes
Maximum fishing depth: 2200m
Crew: 30 men as per safety certificate (Accommodation for 41 persons)
Speed: 10.5 knots

Specifications

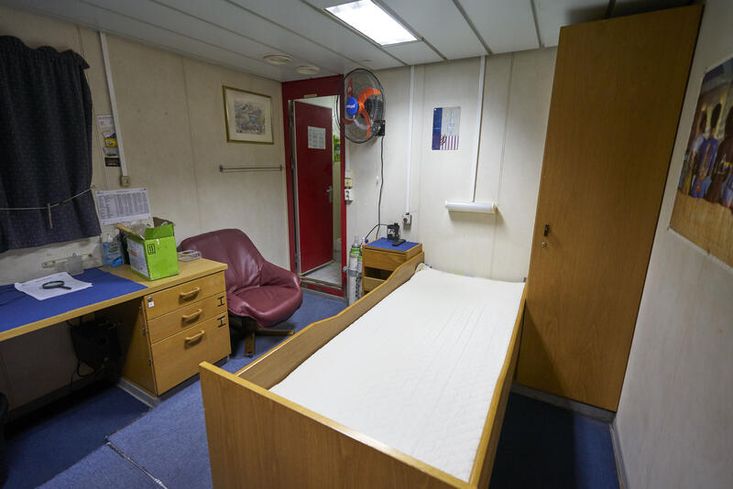

Accommodation

Accommodation:
The vessel is outfitted with Western European style accommodation which is in good condition for the age of the vessel.

The accommodation sighted consisted of the following:

Focsle deck:

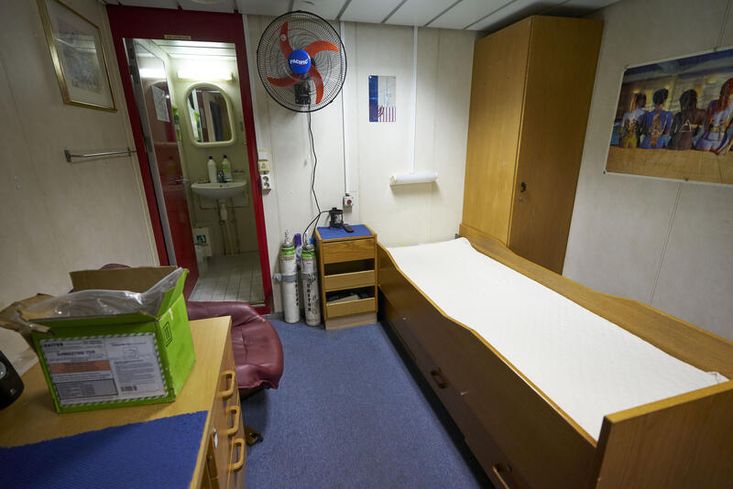

- Skipper’s cabin with bedroom, en-suite bathroom, day room with table, book shelves and small flat screen TV.
- Chief Engineer’s cabin with bedroom, en-suite bathroom, day room with table, book shelves and small flat screen TV.
- Chief Officer’s cabin with single bunk, small day bunk and table, wardrobe and en suite bathroom.
- Second Engineer’s cabin with single bunk, small day bunk and table, wardrobe and en suite bathroom.
- Second Mate’s cabin with single bunk, small day bunk and table, wardrobe and en suite bathroom.

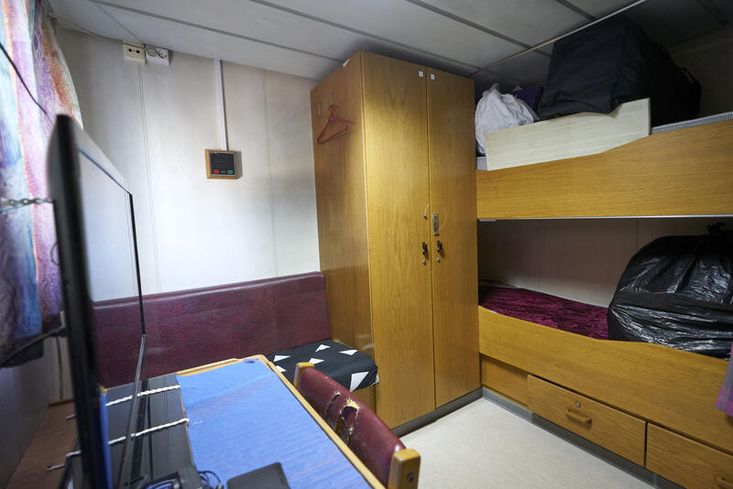

- Seven (7) two man cabins with bunks, wardrobes, basin, chair, small table and book shelves.
- Two (2) communal showers and toilets.
- Laundry with MIELE PROFESSIONAL RW5965 washing machine and PT5136 tumble dryer.

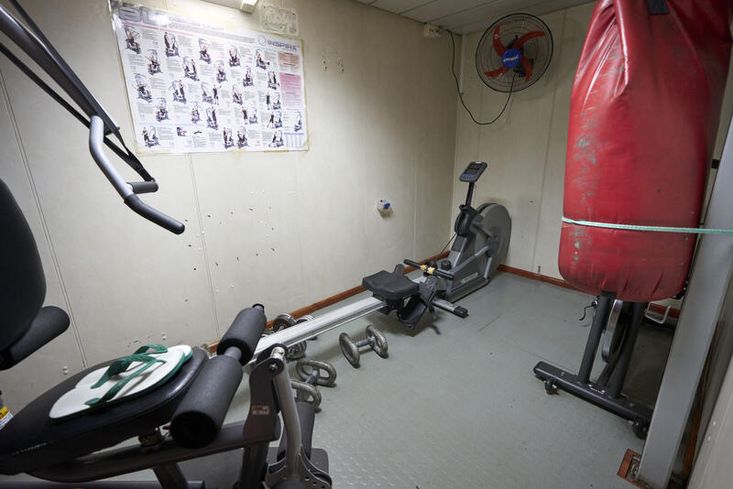

- Cabin converted into a gymnasium with two (2) bicycles, treadmill and multi-gym system.
- Hospital with single bunk, bathroom with shower and toilet, small fridge, stretcher, sterilizing unit and medical locker.

Shelter deck:
- Nine (9) two man cabins with bunks, wardrobes, basin, chair, small table and book shelves.
- Four (4) communal showers and toilets
- Laundry with MIELE PROFESSIONAL PW5065 washing machine, PT5136 tumble dryer and ELECTROLUX INTUITION 6 Kg washing machine.

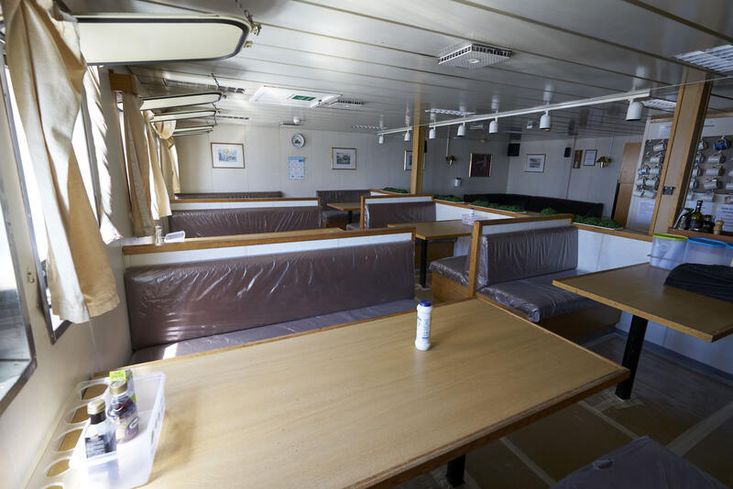

- Officer’s lounge area with upholstered settees, two coffee tables, sideboard television cabinet with GRUNDIG flat screen television.

- Mess room with six (6) tables, upholstered seating, stainless steel sideboards with Bain Marie, ELECTROLUX fridge, kettle, rice cooker, WHIRLPOOL GUSTO microwave, PROMEK juice cooler, RHEEM hot water system and an open plan lounge area with two (2) upholstered settees, three (3) coffee tables, SAMSUNG flat screen television, television cabinet, and PHILIPS DVD player.

- Galley with 5-plate BEHA HEDO stove with oven, BEHA HEDO double bread ovens, BEHA HEDO deep fryer, BEHA HEDO gimbal mounted hot plate, MIELE PROFESSIONL G7860 dishwasher, VARIMIXER dough mixer, PORKKA FUTURE PLUS fridge, IMC macerator, can opener, stainless steel sink and surrounds, various pots and utensils.
- Walk in dry store area with racks and ELECTROLUX chest freezer.
- Walk in domestic freezer room at -25°C.
- Walk in chiller room at -4°C. Main deck:
- Crew change room area with lockers, small table and seats, stainless steel wash basin, RHEEM hot water system, and a knife sharpener.
- Public toilet with EDCO MARINE tumble dryer.

Construction

The vessel is a fully welded steel carvel built hull type fishing vessel, with two decks, a raked stem, transom stern, seven transverse watertight bulkheads and two masts.

Equipment

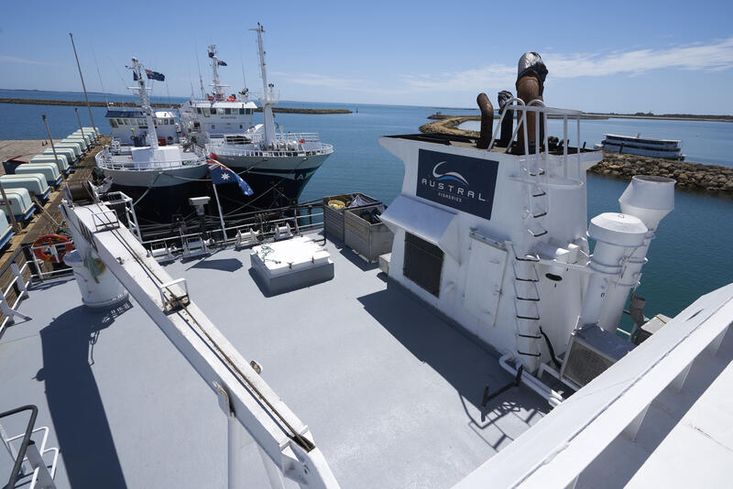

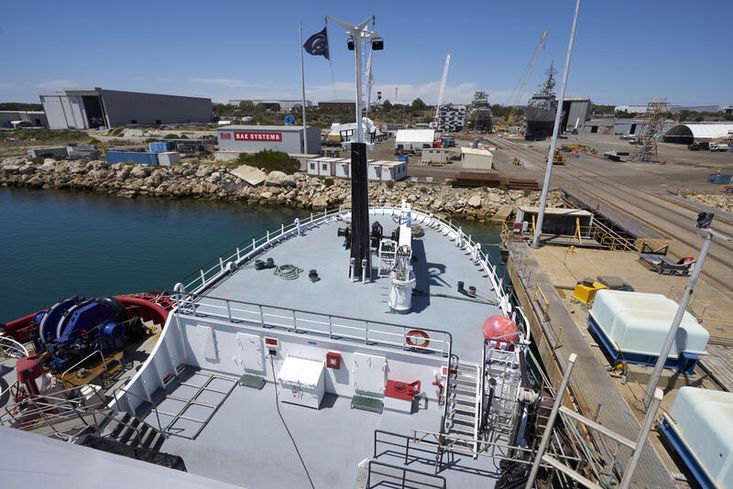

Deck equipment:
- One (1) incinerator on aft upper deck

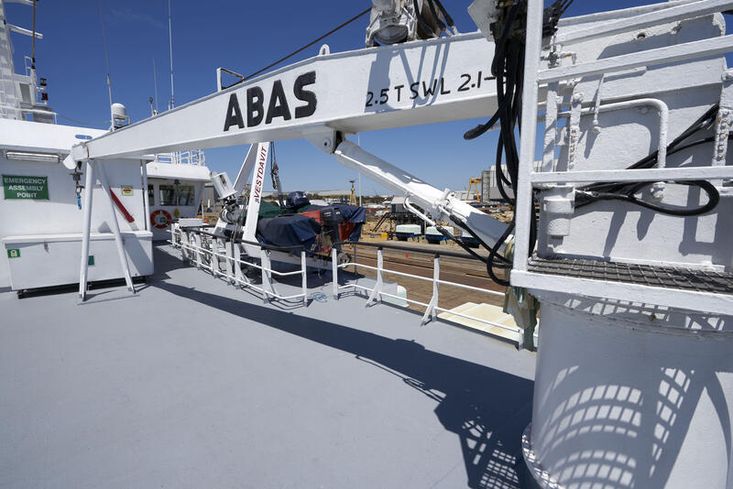

- One (1) ABAS SWL 2.5 tonnes at 2.1 to 8 metres hydraulic fixed boom crane on starboard aft upper deck
- One (1) ABAS SWL 2 tonnes at 10 metres knuckle boom hydraulic crane on foredeck

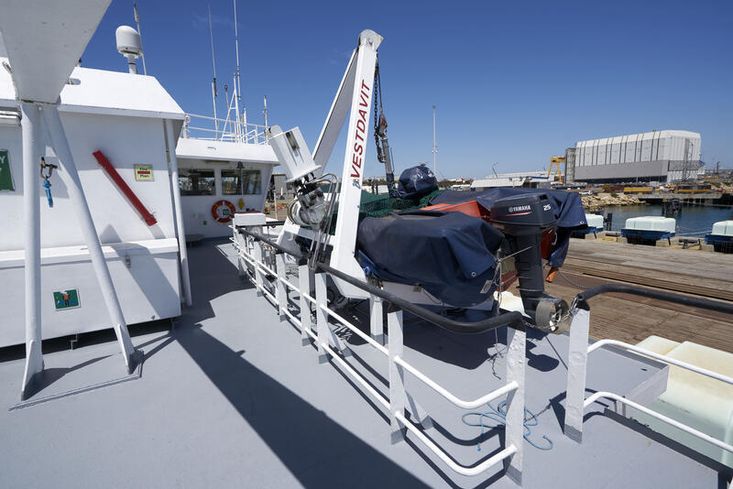

- One (1) VEST DAVIT boat launching davit with manual slew and remote hoist / lower control and quick release hook
- One (1) Tori line curtain davit on the starboard side in way of the hauling station
- Two (2) Tori line davits on the upper stern area
- One (1) VINETECH sonic bird cannon aft
- One (1) small capstan mounted at aft end of upper deck port side
- One (1) BRATTVAAG Hydraulic windlass on focsle with two (2) chain gypsies and two (2) warping heads and with two new lengths of 32 mm stud link chain

Fishing gear:

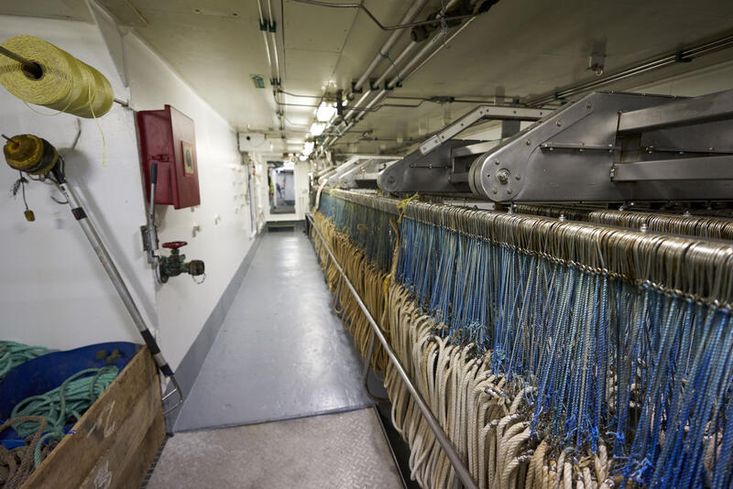

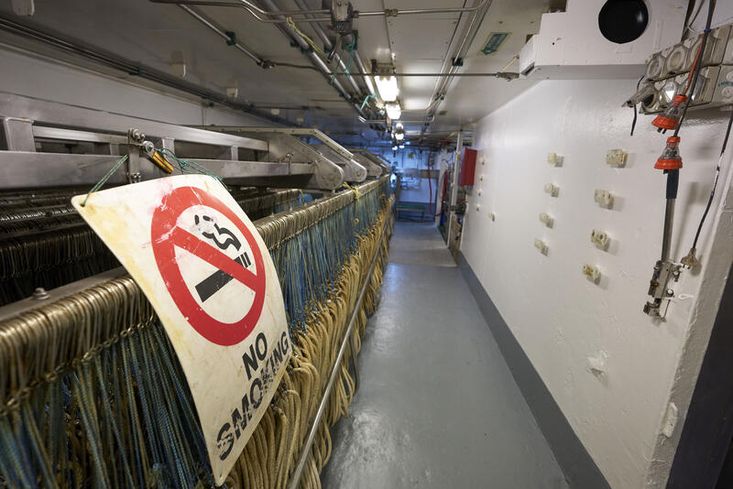

- BFG long line auto magazine racks with about 60,000 hooks
- One (1) BFG HS 7000 line shooter
- One (1) BFG LS 1800 baiting machine
- One (1) Stainless steel swivel base bait bin
- One (1) Stainless steel swivel base bait defrost bin
- Ten (10) GPS beacons
- Various lines, buoys and spare gear

Factory:

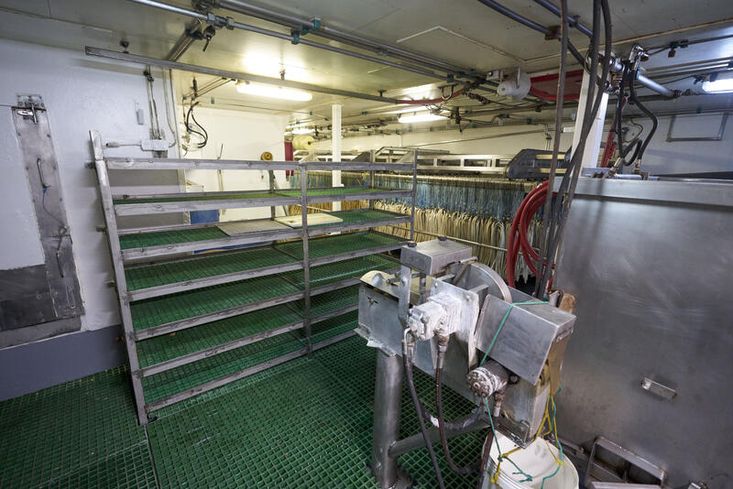

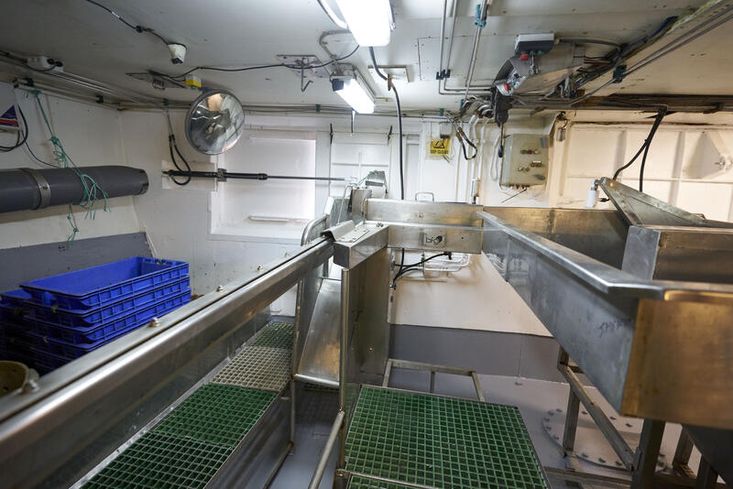

The vessel has a fully enclosed fish processing deck outfitted with the following equipment:
- One (1) stainless steel TALLERES JOSMAR JM 311 offal macerating machine
- One (1) stainless steel processing table
- One (1) stainless steel rack
- One (1) 6 metre conveyor on port side
- One (1) incline conveyor from hauling station to holding bin
- One (1) stainless steel holding bin (with rotating floor) and sorting table
- Three (3) stainless steel holding tank (with lifting floor)
- Two (2) gutting tables
- One (1) stainless steel observers measuring table with scale, labeling machine and GPS
- One (1) stainless steel conveyor for offal system
- One (1) KT stainless steel band saw
- Three (3) blast freezer units located forward
- One bi-directional conveyor in way of blast freezers (about 12 metres long)
- One (1) Mono pump type seawater pump for pumping offal to forward tanks (plus spare pump)
- Two (2) sets UNISYSTEM Sweden U13702 stainless steel electronic scales
- One (1) hydraulic driven knife sharpener

Line recovery bay:
The hauling station is located on the starboard side about midships with the BRATTVAAG line hauler (sheave type). Spare gear is stored forward of the hauling station in the focsle store areas. The hauling station is fitted with a hydraulic door which can be closed remotely.

Focsle stores:
Spare fishing gear and materials such as piping and steel is stowed in the port forward store areas.

There is a transducer compartment forward wherein the emergency fire pump (single cylinder HATZ engine driven) and the offal discharge pump are located.

The starboard side store contains the two (2) BRATTVAAG hydraulic pumps and the ODIM factory hydraulic power pack unit.

Fish hold:
The vessel has one fish hold, of about 570 m3 total capacity with a bait storage hold of about 40 tonnes capacity aft, both insulated and with coiling coil units mounted on the deck heads. The hold is used as a freezer hold for the carriage of frozen fish.

There is a transport conveyor in the fish hold and a hydraulic wire lift platform in the bait hold.

The fish is frozen in one of the three (3) blast freezers before being placed into the main hold for storage.

GPS Beacons
Ten (10) new GPS beacons with tracking system

Navigation Equipment

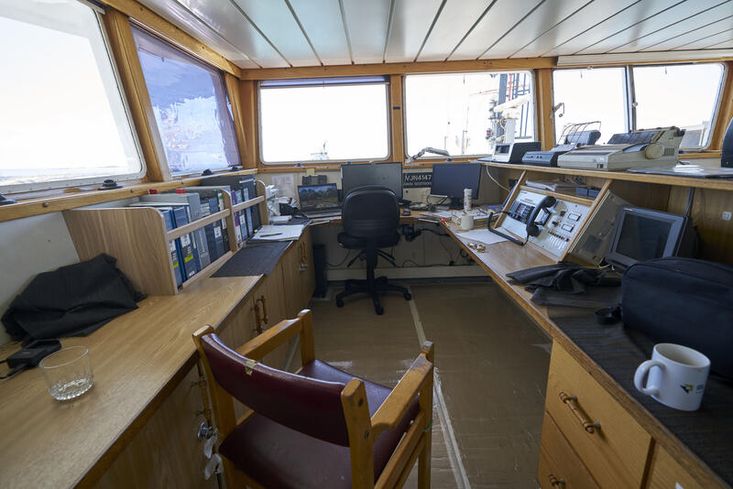

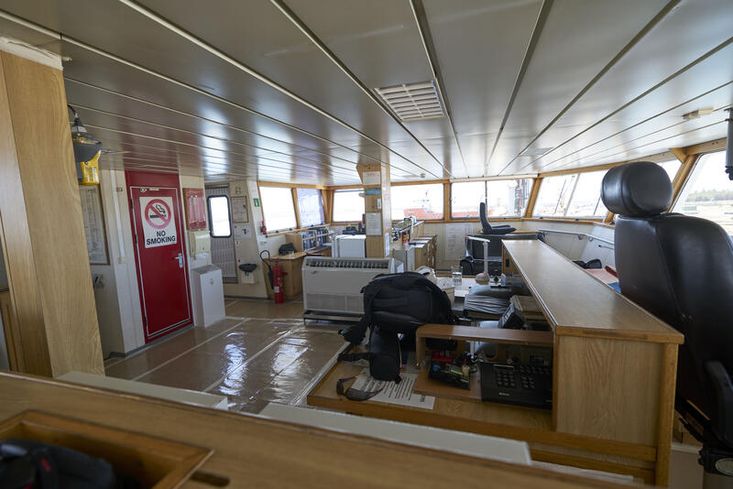

Electronic fishing and navigation equipment:

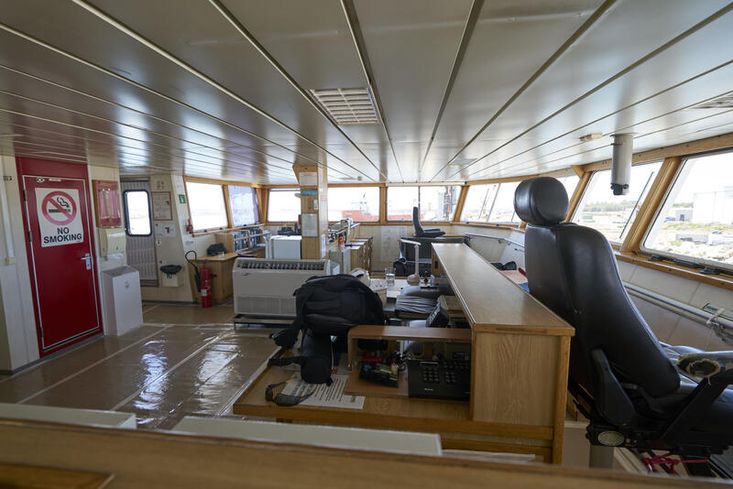

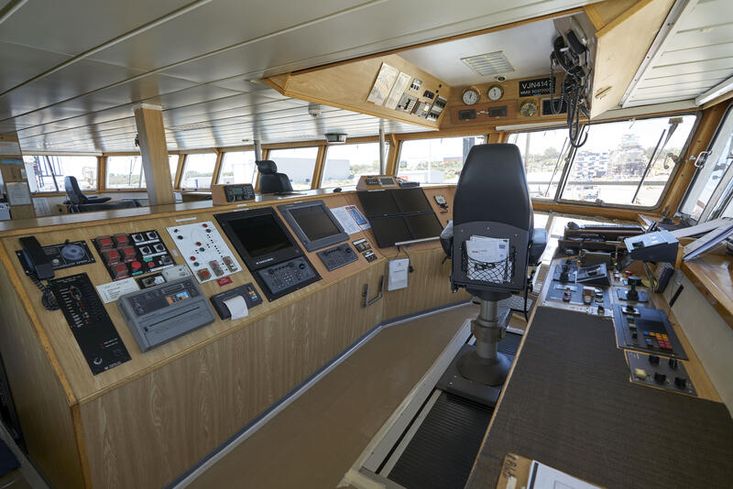

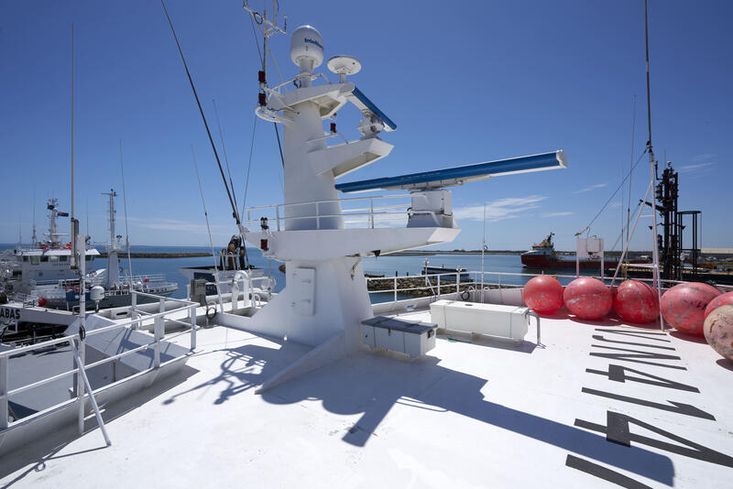

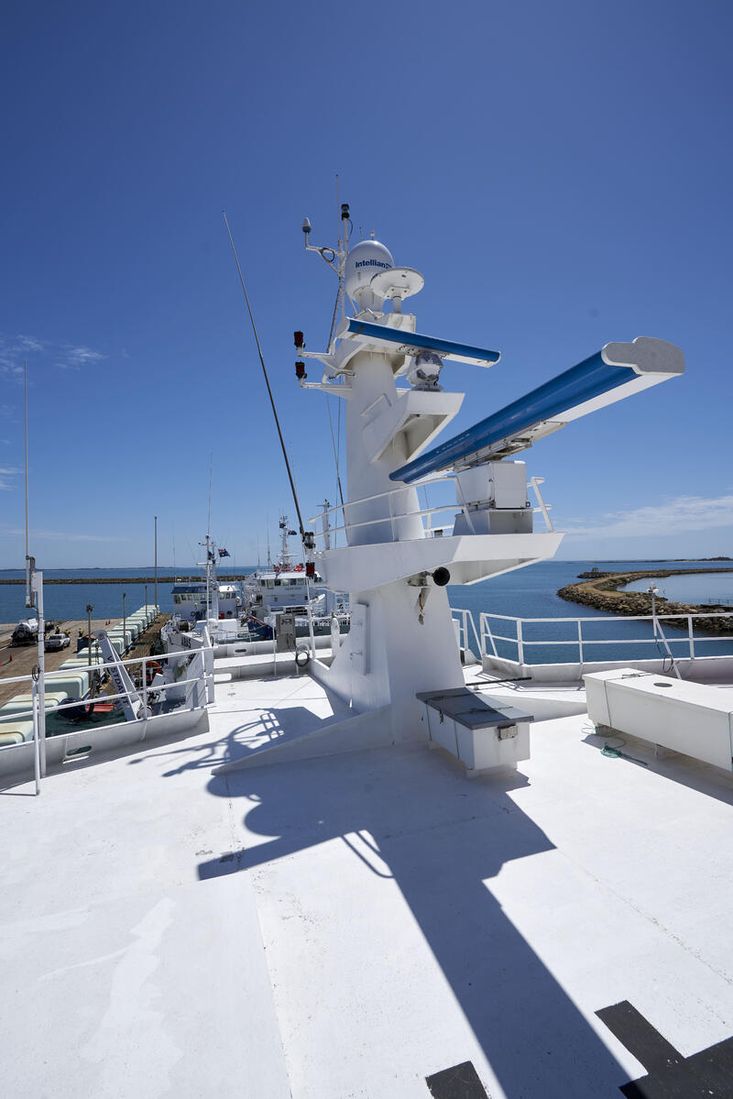

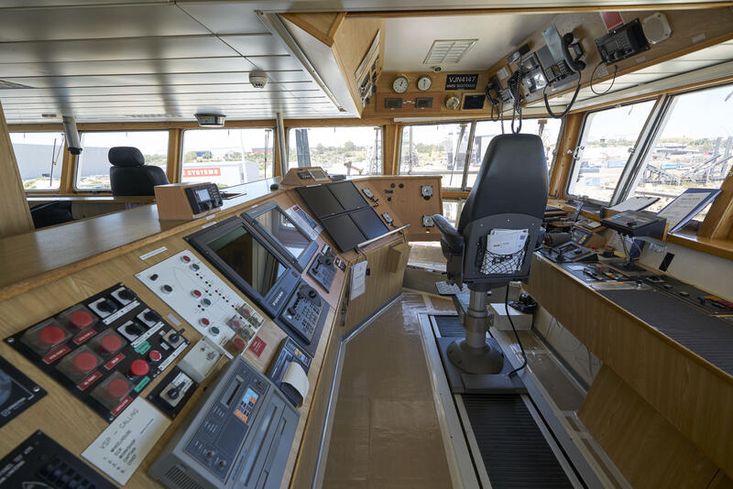

The engine control and navigation equipment is located on the starboard side of the bridge. There is a table and seating area on the port side forward, the GMDSS radio station is located on the port side aft and the chart table is located amidships in the bridge. The vessel is equipped with the following electronic communication and navigation equipment:
Radar FURUNO FAR 2117 X Band
Radar FURUNO FAR 2137 S Band (new 2013)
Echo sounder SIMRAD ES500
Echo sounder SIMRAD video sounder ES70
GPS FURUNO GP32 (2 off)
INMARSAT-C SAILOR TT3027 with keyboard, monitor and SAILOR 1252B printer
INMARSAT-C FURUNO FELCOM 15 with keyboard, monitor and FURUNO PP150 printer
Distress Alert Alarm unit FURUNO IC-305
HF/HF transceiver SAILOR 6301 control unit
SSB radio FURUNO FS 1550
SSB radio ICOM HF IC-M802
VHF radio FURUNO FM 7000
VHF radio SAILOR RT 6222 with DSC controller
VHF radios JOTRON TRON VHF (3 off) hand held
VHF radios ICOM 8005T (3 off) hand held
Autopilot ROBERTSON AP45
Gyro compass ROBERTSON RGC10
AD Converter FURUNO AD-100
Compass FURUNO SC50 satellite compass (new 2013) Magnetic compass
VMS THRANE & THRANE (2 off)
Rudder angle indicators ROBERTSON/SIMRAD RT9
Clock BARIGO
Clock BARIGO with radio silence periods
Barometer HUGER
PA/loudhailer FURUNO
Searchlight COMMANDER with joystick control
Satellite phone THRANE & THRANE TT3672 A
Satellite phone SAILOR IRIDIUM
Fleet broadband FLEET 77
NAVTEX receiver FURUNO NX 500
Weather fax FURUNO DFAX 208A
Plotters SEAPLOT system on pc
MAXSEA system on pc
SART JOTRON TRON 60 S (2 off)
EPIRB GME ACCUSAT (2 off)
AIS FURUNO UNIVERSAL AIS FA-100

Engine(s)

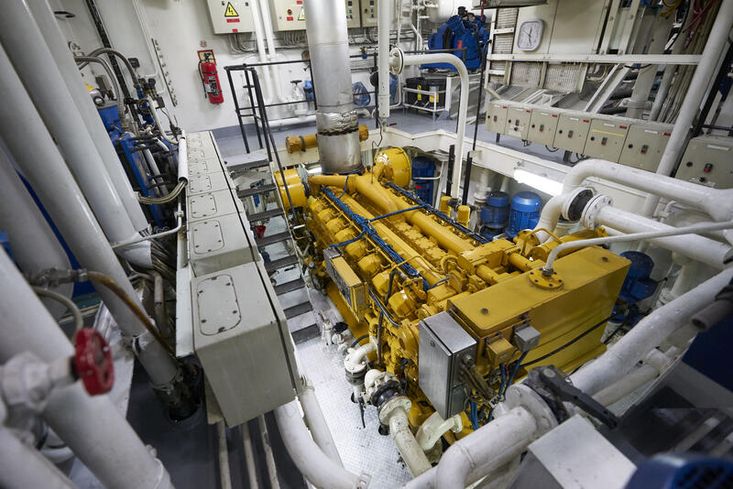

Main engine: CATERPILLAR 3516 AM main engine rated at 1200 KW

The main engine was completely overhauled in Norway during December 2012 and January 2013 and has run about 10,086 hours since then.

The engine had a top overhaul in January 2015.

Gearbox: VOLDA gearbox type ACG 450 CP62.4 and ratio 5.25:1 driving a variable pitch propeller.

Propeller: VOLDA single screw variable pitch propeller, right hand and of 2500 mm diameter.

Rudder: BECKER flap type rudder

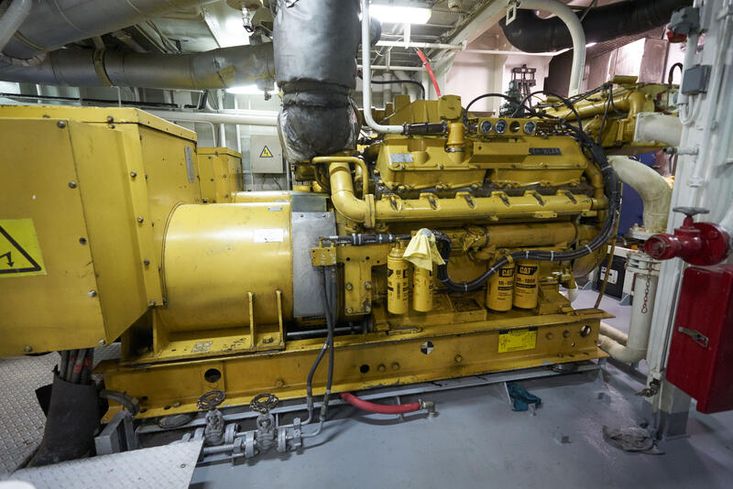

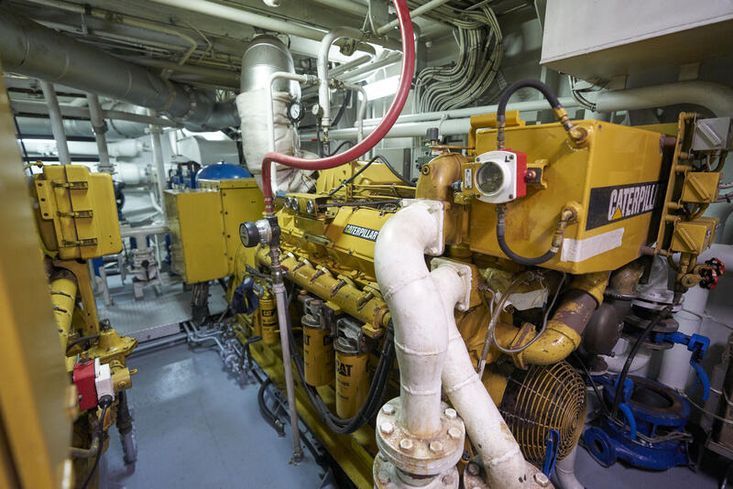

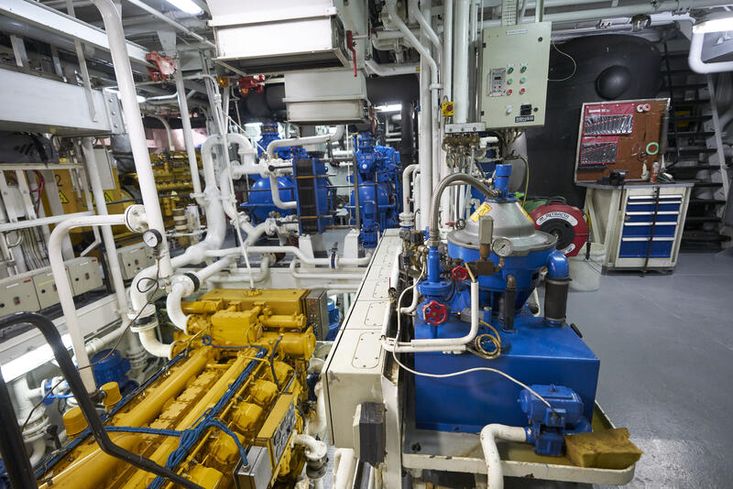

Auxiliaries: Two (2) CATERPILLAR 3412 diesel engines rated at 536 KW, 719 HP at 1800 rpm each driving a SR4 625 KVA, 500 KW, 440 V, 3-phase, 60 HZ AC alternator.

Both auxiliary engines were overhauled in Norway beginning of 2013 and have been regularly serviced since then.

Engine Room Continued.

Steering gear: TENFJORD Rotary vane unit
Gas oil separator: One (1) gas oil purifier ALFA LAVAL MMPX 303 SGP-11. (1994)
Hot water boiler: One (1) PYRO type A800-2000 (1994) hot water boiler rated at 3 Bar and 821 KW.
Air compressors: Two (2) SPERRE type HL2/77 compressors.
Control room air conditioner: TECKNOTHERM unit with small BITZER compressor Domestic fridge compressors: Two (2) TECKNOTHERM units with BITZER compressors

Fresh water generator: One (1) ALFA LAVAL NIREX type JWP-26-C80 fresh water generator with salinometer rated at 12 m3 per 24 hours (1994)
Sewage system: EVAC type 5460621 system with two pumps and holding tank
Oily water separator: WORLD WATER SYSTEMS Inc. HELI SEP type 1000 rated at 4.4 GPM (1994) with OMD 15ppm alarm

Refrigeration: TECKNOTHERM refrigeration system for the fish and bait holds as well as the blast freezers consisting of Freon accumulators, surge tank, condensers and associated equipment as well as two (2) MYCOM compressors.
No.1 compressor model 200SUD-L
No. 2 compressor model T60VLD 2.6
Both compressors are fitted with HYAC VACON soft starters

Tank sounding system: SOUNDFAST pneumatic system

Pumps and equipment: The following pumps were noted (but not limited to) to be on board.
The pumps are mostly of the ALWEILER type and of various models.
One (1) diesel oil transfer pump Two (2) mono pump type bilge pumps Two (2) centrifugal Fire / GS pumps
One (1) centrifugal main engine fresh water cooling water pump
One (1) standby centrifugal main engine fresh water cooling water pump One (1) main engine fresh water preheating circulating pump
One (1) main engine standby lubricating oil circulating pump Two (2) main sea water cooling pumps
One (1) fresh water evaporator sea water supply pump One (1) gearbox standby lubricating oil pump
One (1) hydraulic oil transfer pump
One (1) controllable pitch propeller pump
One (1) domestic refrigeration condenser cooling pump Two (2) domestic water supply pumps
Two (2) hydraulic steering gear pumps One (1) fresh water transfer pump One (1) sludge transfer pump

Work Shop: One (1) TURNCRAFT 1440 lathe One (1) STRANDS drill press One (1) workbench with two (2) vice One (1) bench grinder
One (1) DEWALT cut off machine
One (1) UNITOR UW1-350MP portable welding plant Various chain blocks, slings and lifting gear
Well stocked tool outfit

Electrics

Other: 3 x Laptops
HP LASERJET M1212NF/MFP printer
HP DESKJET INK ADVANTAGE 4615 4 in one printer LEITZ LAMTECH Laminator
MCS EVOLUTION Engine alarm system,
Computer station with processor, monitor and keyboard WORMALD SIGNALCO A/S PBS8 fire detection system Fuel flow meter type EME
Four channel CCTV system Intercom – VINGTOR VRC-120M
WYNN window wipers

Certification

The vessel is classed with Bureau Veritas and is subject to statutory periodical inspections by Bureau Veritas, for compliance with the appropriate Australian and International regulations and the issue of mandatory safety certificates and other safety related matters.

As such she is classed as a long line and fishing vessel operating on the high seas with the following Bureau Veritas Classification:
HULL MACHINERY
FISHING VESSEL
UNRESTRICTED NAVIGATION
ICE

Disclaimer

Details of the equipment offered by TAG Marine is done in good faith but cannot be guaranteed.

Nor can we warrant the accuracy of this information nor warrant the condition of the vessel.

A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.

All equipment is offered subject to prior sale, price change, or withdrawal without notice.

Our offers are standard valid for 30 days.
